Specifications
Industrial peanut butter making machine200kg/hr,400kg/hr,1000kg/hr
High automatic
Manufactuer of 400kg/hr Industrial peanut butter making machine /commercial peanut butter maker machine / industrial peanut butter machine automatic peanut butter making machine /commercial peanut butter making machine /Peanut butter production line/ peanut butter processing machine (If you want other capacity, we can design it for you)
peanut butter making machine ,Peanut butter making machine, peanut butter production line, peanut butter processing line

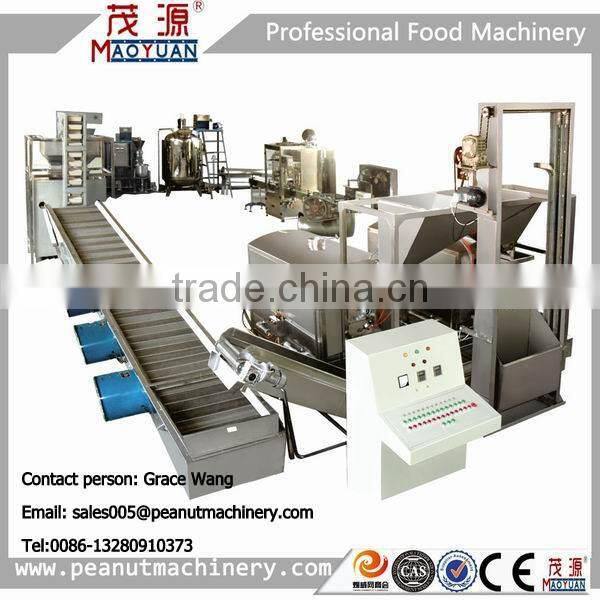

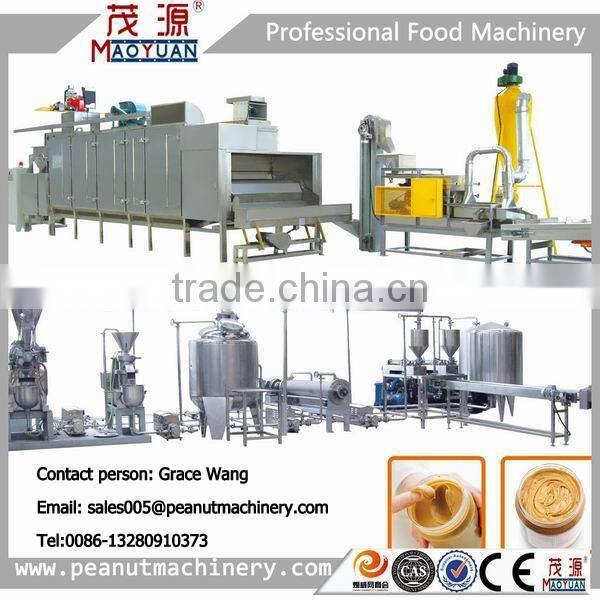

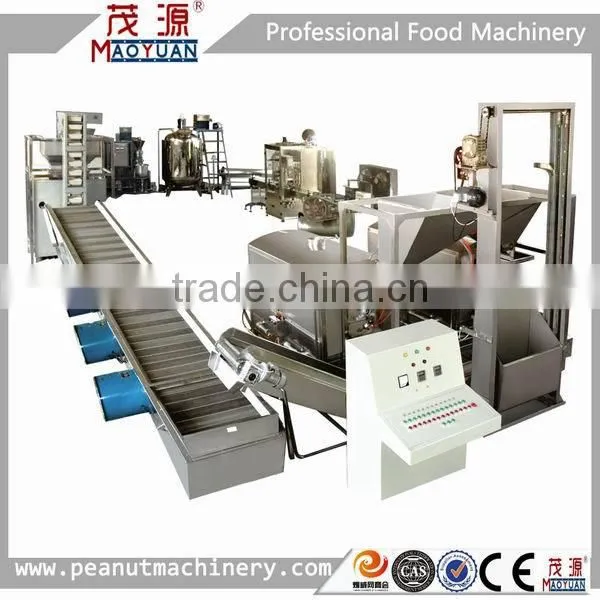

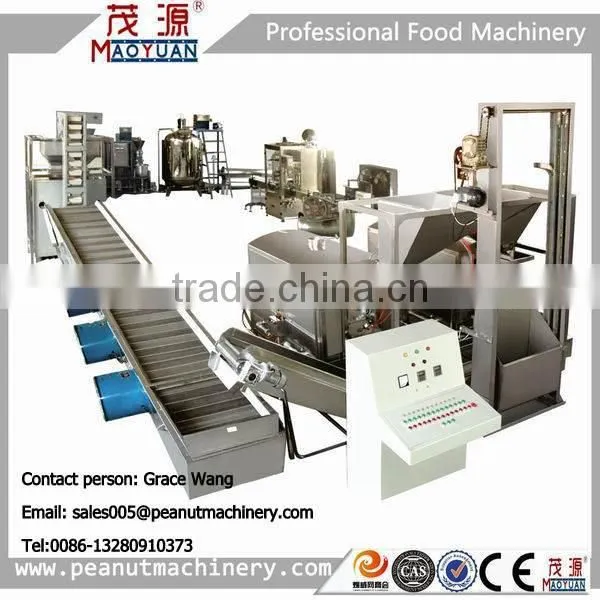

Flow chart of peanut butter production equipment:
Roasting---Cooling--Peeling--Selecting --Milling--Mixing--Cooling--de-gasing-- filling
peanut butter making machine
Industrial peanut butter making machine ---Roasting:
batch roaster’s working temperature is 200-210 ºC, 20-30minutes.use batch roaster will bake some delicious smells.
Industrial peanut butter making machine ---Cooling: Peanut will be send cooling belt to cool.

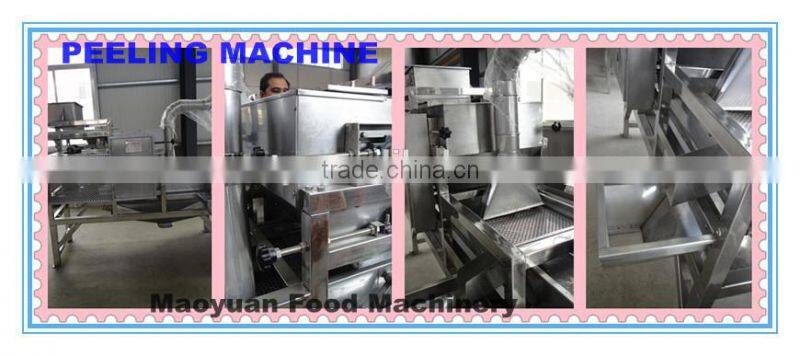

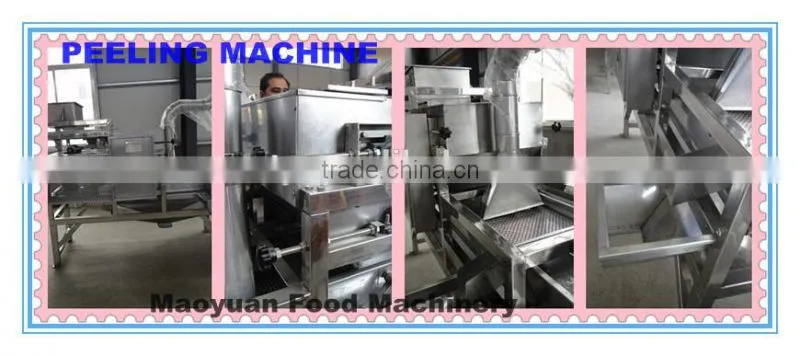

Industrial peanut butter making machine ---Peeling:
put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted and un-blanched peanut kernel is picked up by manual or mechanical. (It is matched with manual type conveyor in the quotation)
Industrial peanut butter making machine --Primary grinding: Using steel grinder to make the first grinding;
Industrial peanut butter making machine --Second grinding:
Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7um, temperature of grinding is controlled below 68C.
Industrial peanut butter making machine ---Blending: make the butter more homogeneous
Industrial peanut butter making machine ---Cooling:
the butter through second grinding should be cooled immediately. The temperature should go down 45C.
Industrial peanut butter making machine --Degasser : Take out the air from peanut butter.
Industrial peanut butter making machine --Storage tank:
settling down in the storage tank till the temperature drop to air temperature.
Industrial peanut butter making machine --packing
by the filling machine, the finished peanut butter is packed into 200g/500g/1000g bottle
ABOUT US
Yantai Maoyuan Food Machinery Manufacturing Co., Ltd., established in 1993 and situated in Qixia of Yantai City, Shandong Province with a registered capital of 2,000,000 RMB and an area of 9,800 square meters, is a professional food machinery manufacturing company integrated with R&D, professional manufacturing, direct sales and after sales service. We have taken lead in issuing and passing Shandong Business Product Quality Standard and have been smoothly certified to ISO9001:2008 International Quality Management System, CE safety certification for exporting to European Union, BV certification, the third party certification. Now we have successfully gained trademark.
WELCOME TO VISIST US---- peanut butter maker manufacturer
