5XZC-5BX Seed Cleaner Grader

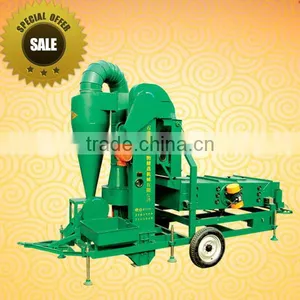

5XZC-5BX Seed Cleaner Grader thumbnail-1
5XZC-5BX Seed Cleaner Grader photo-1
US$ 5,100 - 5,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Seed cleaner grader
Use:
used for cleaning light impurity from the grain seeds
Certification:
ISO9001:2008
Contact Supplier Request Quote Chat Now
Shijiazhuang Sanli Grain Sorting Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Seed cleaner grader
Use used for cleaning light impurity from the grain seeds
Certification ISO9001:2008
Place of Origin Hebei, China
Brand Name Sanli
Model Number 5XZC-5BX
Condition New
After-sales Service Provided Engineers available to service machinery overseas

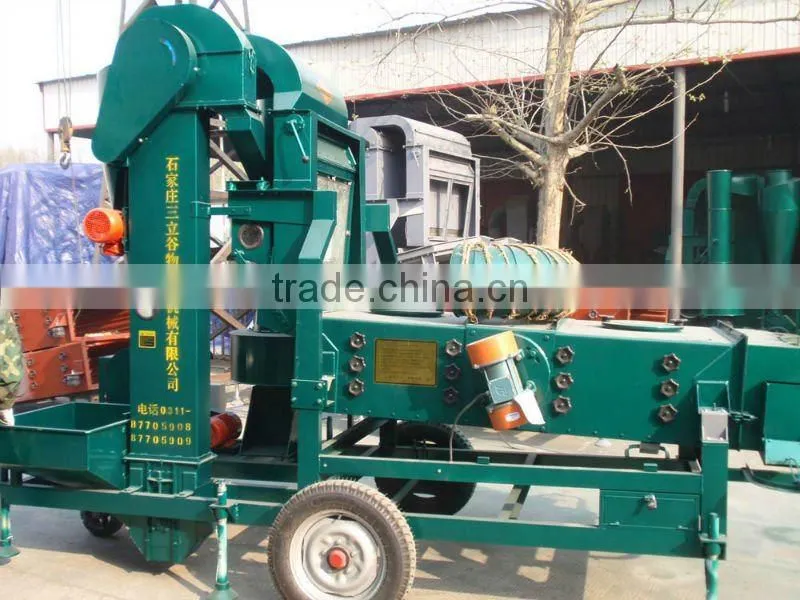

5XZC-5BX Seed cleaner grader



Features:

  1. The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the ejection chamber, while seed is heavy and is transferred into a vibrating sift having passed through air sifting.
  2. The vibrating is three layers sieves with four exits which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.
  3. The machines are used for seed and agriculture byproducts processing.
  4. The sieves used in the machine is made of high quality cool rolled galvanizing steel, with high precision and a long life span. The rubber ball sifting structure complies with international standards, SanLI’s patented rubber ball is highly elastic, endures, cold and is long lasting.
  5. The machines use a vibrating motor as its vibrating source: the regulation of both scale and direction of vibration is convenient and accurate. Advanced technology. advanced specification, efficient, easy to operate and maintain, stable and cost effective.
  6. With cyclone, more environment protection.

The main performance indicators and technical parameters



Model5XZC-5BX5XZC-5DX
Productivity 5000 Kg/h5000 Kg/h
Size (L×W×H)4320×2100×3310mm4320×2100×3310mm
Sieve Layers34
Weight1650 Kg1700 Kg
Power supply380V  50Hz380V  50Hz
Total power7.74 Kw8.1 Kw
Selection rate≥96%≥96%
Clarity≥97%≥97%
Broken rate≤0.5≤0.5
Impurities rate≤2%≤2%
RemarksWith Cyclone dusterWith Cyclone duster





Products details:

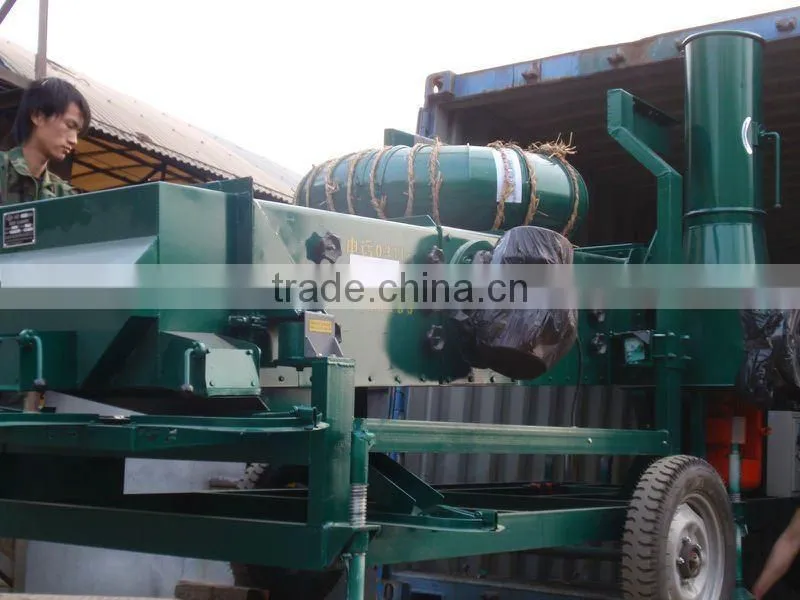

5XZC-5BX Seed cleaner grader







5XZC-5BX Seed cleaner grader
