5XZC-5BXC Grain Processing Machine Cleaner

Name: 5XZC-5BXC Grain Processing Machine Cleaner
Brand: SANLI
SKU: 141423168
Availability: InStock

Shijiazhuang Sanli Grain Sorting Machinery Co., Ltd.

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Type:

5XZC-5BXC seed cleaner

Use:

seed processing machine

Certification:

ISO9001:2008

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Type 5XZC-5BXC seed cleaner

Use seed processing machine

Certification ISO9001:2008

Place of Origin Hebei, China

Brand Name SANLI

Model Number 5XZC-5BXC

Condition New

Specifications

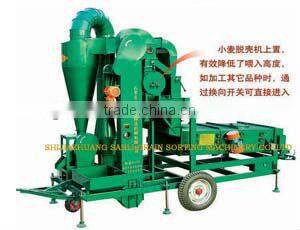

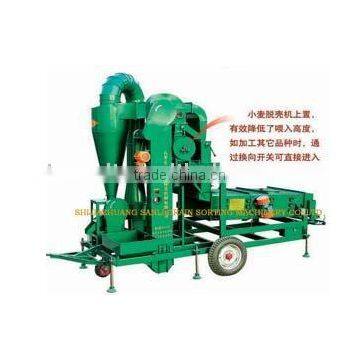

5XZC-5BXC Grain processing machine cleaner
MOQ:1set
Delivery time: 20days after received the prepayment
Payment term:T/T

5XZC-5BXC Grain processing machine cleaner

Features

The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the ejection chamber, while seed is heavy and is transferred into a vibrating sift having passed through air sifting.
The vibrating is two layers sieves with three exits which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.
The machines are used for seed and agriculture byproducts processing.
The sieves used in the machine is made of high quality cool rolled galvanizing steel, with high precision and a long life span. The rubber ball sifting structure complies with international standards, SanLI’s patented rubber ball is highly elastic, endures, cold and is long lasting.
The machines use a vibrating motor as its vibrating source: the regulation of both scale and direction of vibration is convenient and accurate. Advanced technology. advanced specification, efficient, easy to operate and maintain, stable and cost effective.
With Cyclone duster, With wheat huller.

The main performance indicators and technical parameters


Model	5XZC-5BXC	5XZC-7.5BXCA
Productivity	5000 Kg/h	7500 Kg/h
Size (L×W×H)	5000×1800×3200mm	5340×2060×3200mm
Sieve Layers	3	3
Weight	1700 Kg	1900 Kg
Power supply	380V 50Hz	380V 50Hz
Total power	11.74 Kw	15.1 Kw
Selection rate	≥96%	≥96%
Clarity	≥97%	≥97%
Broken rate	≤0.5	≤0.5
Impurities rate	≤2%	≤2%
Remarks	With cyclone duster& wheat huller	With cyclone duster& wheat huller
