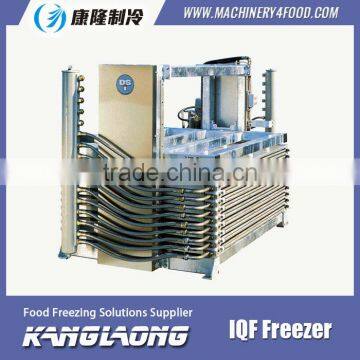

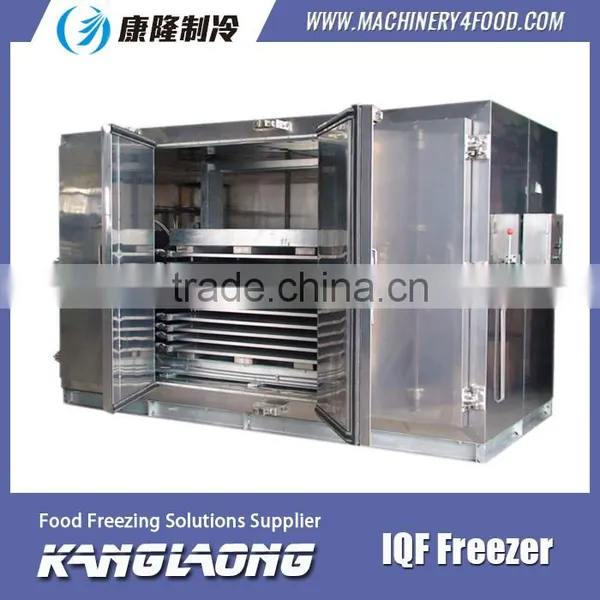

1. Pictures of High Quality Small Deep Freezer Solar Powered Deep Freezer
2. Description of High Quality Small Deep Freezer Solar Powered Deep Freezer
1. Freezing plate is specially designed and produced integral plate in aluminum alloy.
2. Aluminum integral plate has large area for heat transfer with forced ram cooling, efficient in heat transfer and with short freezing time.
3. Plate for insulation storehouse: stainless steel plate (or white colored plastic plate), foamed by polyurethane inside.
4. Suitable for aquatic products, dividing meat and nursing products.
Parameter of product
Technical parameter table of aluminum plate freezing machine
ItemModel |
Freezing capacity kg/batch 4h/batch |
Pieces of plate |
Size of plate m |
Height of layer mm |
Refrigeration consumption Kw |
Power of air blower Kw |
Solution feeding and back steam |
Overall dimension L×W×H |
SKD-1 |
1000 |
10 pieces, 9 layers |
2×1.2 |
160 |
35 |
2.2 |
38,78 |
3650×1800×2140 |
SKD-1.5 |
1600 |
10 pieces, 9 layers |
3×1.2 |
160 |
45 |
2.2 |
38,78 |
4650×1800×2140 |
SKD-2 |
2000 |
10 pieces, 9 layers |
4×1.2 |
160 |
68 |
3 |
38,78 |
5650×1800×2140 |
SKD-3 |
3000 |
10 pieces, 9 layers |
6×1.2 |
160 |
90 |
3 |
38,78 |
7700×1800×2140 |
SKD-4 |
4000 |
10 pieces, 9 layers |
6×1.2 |
150 |
130 |
4.5 |
57,108 |
7700×1800×2500 |
Note: 1. freezing capacity is calculated according to 15 kg fish dish, with operating mode of +35°C/-35°C. 2, Designed according to customers’ needs.
Overall dimension of SKD aluminum plate freezing machine
3.More Products To Choose
|
|
|
|
|
Fluidized Freezer |
Spiral Freezer |
Plate Freezer |
Tunnel Freezer |
5.Why Choose Us
1.Product development and special customized ability for clients.
2.The independent intellectual property rights and the international certification authority.
3.High quality material - product quality exceed international counterparts.
1.Trade Items Of Products
| Payment | L/C,T/T,and etc. |
| Port | Shanghai or Ningbo |
| MOQ | 1 Set |
| Supply Ability | 2Twenty-Foot Container/Week |
| Delivery | 30-45 working days at appointed port |
2.Packaging Of Products
Introduction Of Company
Shangyu Kanglong Refrigeration And Fanner Equipment Co.Ltd.:
1.Entered the filed of food freezing industry more than 15 years.
2.Fast delivery, 30 Working days / 40' feet container.
3.Product are exported to more than 20 countries.
4.15 years experience, 10500mm2 ISO9001 certified workshop.
5.Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
6.High quality material, was sourced from famous brand in China.
7.Main Products:
IQF Freezer,Food Treatment Production Line,Food Processing Machine,Food Drying Equipment,Refrigeration Equipment
