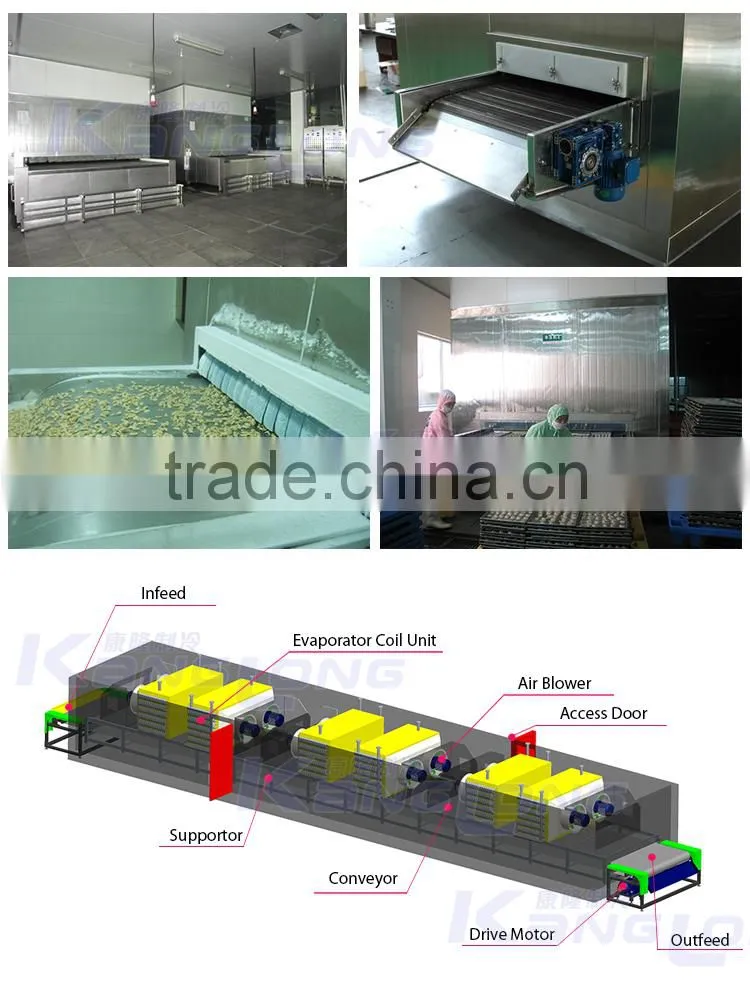

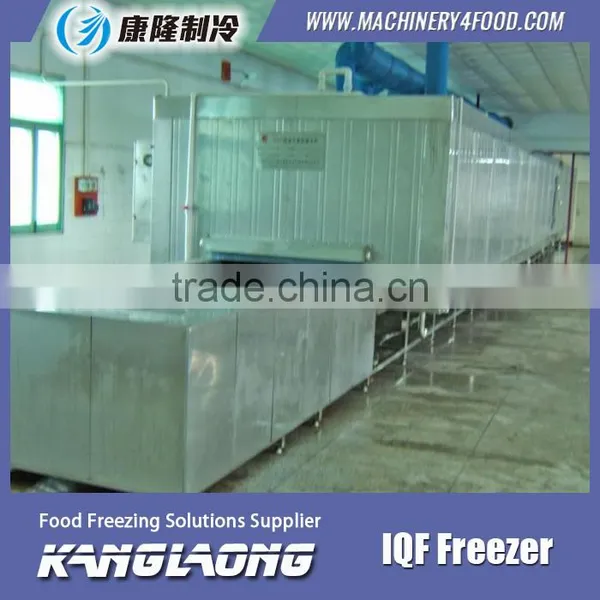

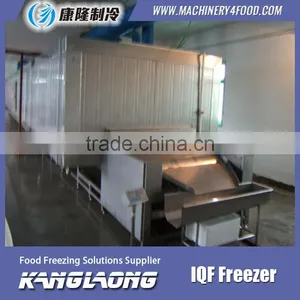

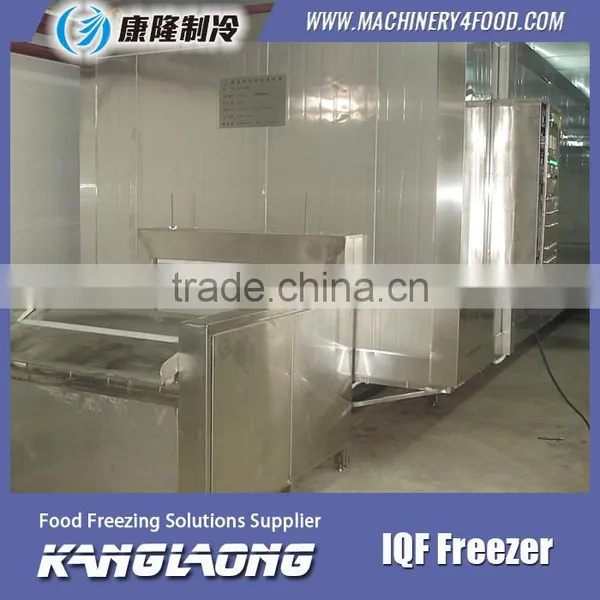

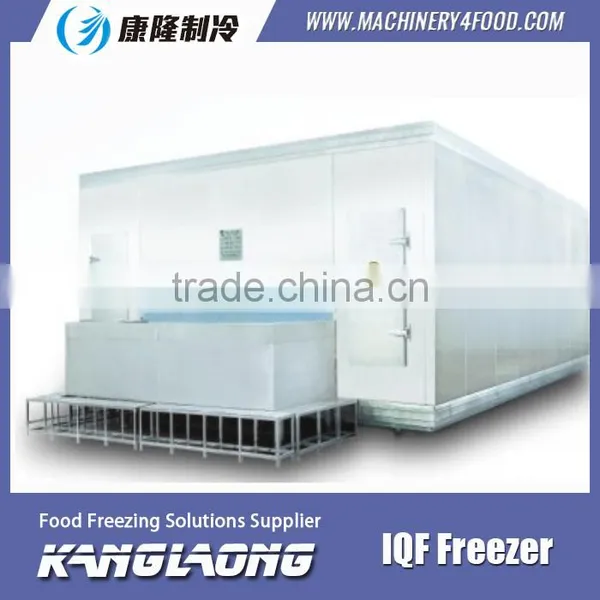

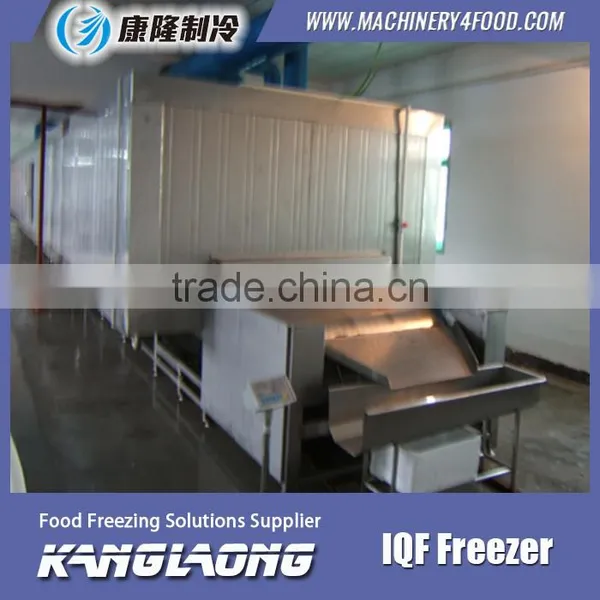

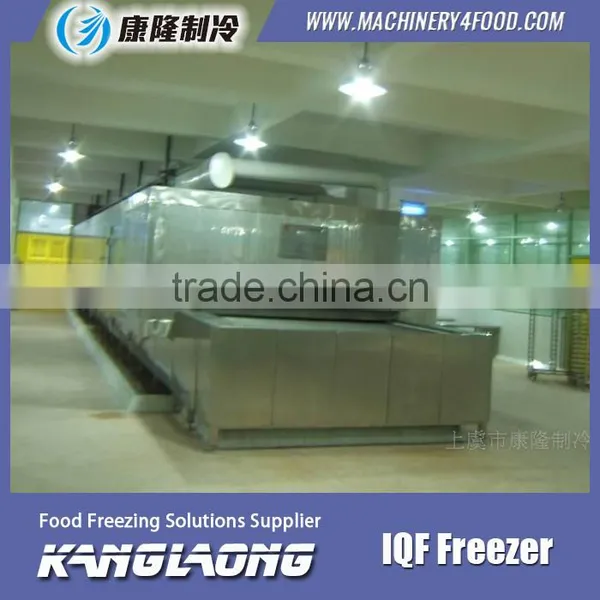

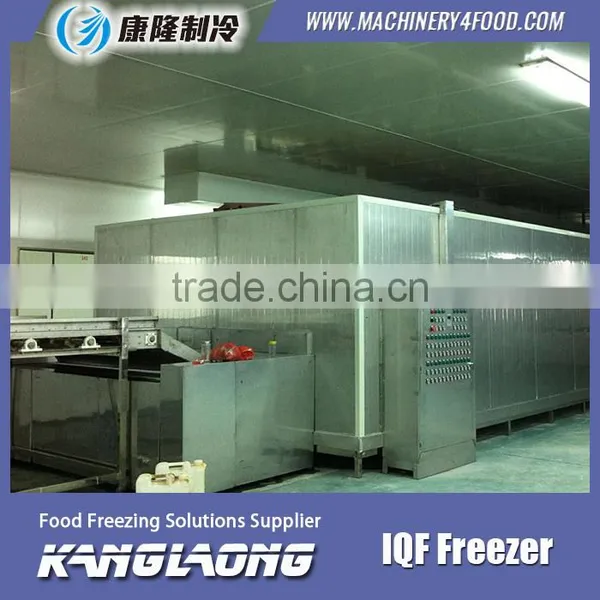

1. Pictures of How To Freeze Fresh Shrimp Machine
2. Description of How To Freeze Fresh Shrimp Machine
SSD Tunnel quick-freezing machine is monomer machine with advanced design and superior performance, which can efficiently save energy and retain freshness. It is widely used in quick-freezing strip, cubic or grain food, such as shrimp meat, shrimp, sliced fish, meat dumpling, divided meat, pig tongue, chicken, asparagus and yam, which saves energy and is convenient in cleaning and maintenance. It is chosen by many domestic factories, being new-generation quick-freezing machine with brand-new concept.
Features of Product
1.There are 2 choices for conveying belt, imported high-intensity stainless steel belt or mesh belt, both with conversion infinite speed variation. As a conversion double-stage driving system, it is safe and reliable in running.
2. Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products, which makes perfect freezing, quality and efficiency.
3. Cold air blower applies overall aluminum pipe and sheet and optimum designed pitch of fins, advanced in structure and efficient in refrigeration.
4. The quick-freezing machine applies polyamine double-surface stainless steel storehouse with stainless steel frame, meeting the requirements of exported food.
Parameter of product
SSD-S series (aquatic products, meat products, quick-frozen wheaten food) tunnel quick-freezing machine
|
Item
Model |
Freezing capacity KG/H |
Freezing time min |
Refrigeration consumption kw |
Installed power kw |
Dimension of freezing room L×W×H m |
Overall dimension L×W×H |
Circulating temperature in storehouse °C |
SSD-300S |
300 |
3-50 |
70 |
15.5 |
13×2.5×1.6 |
17×2.5×2.2 |
-36±2 |
SSD-400S |
400 |
3-50 |
110 |
17.5 |
15×2.5×1.6 |
19×2.5×2.2 |
-36±2 |
SSD-500S |
500 |
5-60 |
130 |
20.5 |
18×2.5×1.6 |
22×2.5×2.2 |
-36±2 |
SSD-600S |
600 |
5-60 |
160 |
22 |
20×2.5×1.6 |
24×2.5×2.2 |
-36±2 |
SSD-700S |
700 |
5-60 |
190 |
26 |
22×2.5×1.6 |
26×2.5×2.2 |
-36±2 |
Note: 1. Feeding temperature +15°C, discharging temperature -18°C, refrigerant R717 or R22.
2. Applying high-intensity stainless steel from abroad, or applying mesh belt
3. Freezing capacity is based on shrimp with 74% water content, wheaten food with bigger capacity.
SSD-K series (quick-frozen shrimp, fish meat, meat, asparagus, peach, pear and sweet potato) broadband tunnel quick-freezing machine
|
Item
Model |
Freezing capacity KG/H |
Freezing time min |
Refrigeration consumption kw |
Installed power kw |
Dimension of freezing room L×W×H m |
Overall dimension L×W×H |
Circulating temperature in storehouse °C |
SSD-300K |
300 |
3-60 |
70 |
17 |
8×3.0×1.6 |
10.4×3.0×2.5 |
-36±2 |
SSD-500K |
500 |
3-60 |
130 |
18 |
9×3.6×1.6 |
12.4×3.6×2.5 |
-36±2 |
SSD-1000K |
1000 |
3-60 |
186 |
22 |
11×3.6×1.6 |
14.9×3.6×2.5 |
-36±2 |
SSD-1500K |
1500 |
6-80 |
256 |
25 |
13×3.6×1.6 |
16.9×3.6×2.5 |
-36±2 |
SSD-2000K |
2000 |
6-80 |
330 |
28 |
16×3.6×1.6 |
19.9×3.6×2.5 |
-36±2 |
SSD-3000K |
2500 |
6-80 |
550 |
35 |
18×3.6×1.6 |
21.9×3.6×2.5 |
-36±2 |
Note: 1. Feeding temperature +15°C, discharging temperature -18°C, refrigerant R717 or R22.
3.More Products To Choose
|
|
|
|
|
Fluidized Freezer |
Spiral Freezer |
Plate Freezer |
Tunnel Freezer |
5.Why Choose Us
1.Product development and special customized ability for clients.
2.The independent intellectual property rights and the international certification authority.
3.High quality material - product quality exceed international counterparts.
1.Trade Items Of Products
| Payment | L/C,T/T,and etc. |
| Port | Shanghai or Ningbo |
| MOQ | 1 Set |
| Supply Ability | 2Twenty-Foot Container/Week |
| Delivery | 30-45 working days at appointed port |
2.Packaging Of Products
Introduction Of Company
Shangyu Kanglong Refrigeration And Fanner Equipment Co.Ltd.:
1.Entered the filed of food freezing industry more than 15 years.
2.Fast delivery, 30 Working days / 40' feet container.
3.Product are exported to more than 20 countries.
4.15 years experience, 10500mm2 ISO9001 certified workshop.
5.Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
6.High quality material, was sourced from famous brand in China.
7.Main Products:
IQF Freezer,Food Treatment Production Line,Food Processing Machine,Food Drying Equipment,Refrigeration Equipment
