Specifications
straw biomass charcoal briquette machine1. 30 years experience
2. Reasonable price
3. Thought service
4. Reliable

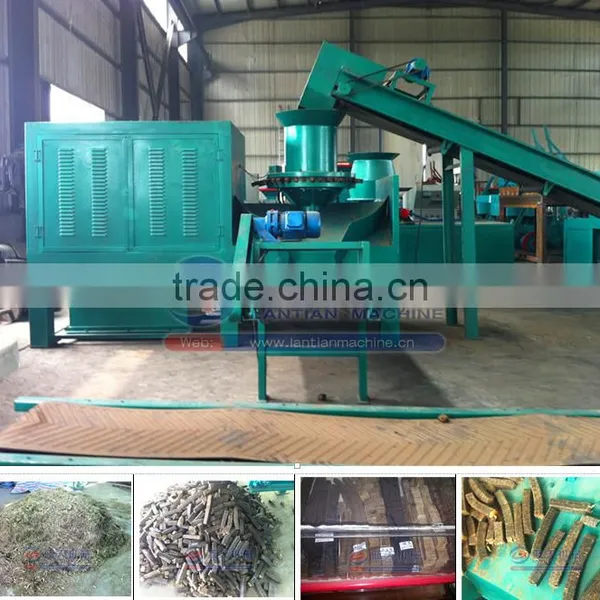

straw biomass charcoal briquette machine
Introduction of straw biomass charcoal briquette machine:
1. What'straw charocal?
machine to make straw biomass charcoal is to use rural corn stalk, what straw, cotton stalk, rice straw, rice husk, peanut shell, corn cob, tree branches, leaves, sawdust, etc, agricultural waste, solid waste as raw material, after crushing, be compressed into high density and strength of briquettes.
2. Features of "straw biomass charcoal briquette machine".
The grass briquette making machine with small volume, relative density, flame resistant, easy for storage and transport. The briquette volume is only 30% of the original straw; the weight is 10-15 times of the same size of the straw; the density is 0.9-1.4g/cm3; the calorific value can reach to 3500-5500 kilocalorie, is high volatile solid fuel.
3. The applied range of straw biomass charcoal briquette machine:
The straw biomass charcoal briquette machine can stead the wood, coal, liquefied gas etc, widely used in life stoves, heating stove, industrial boilers, biomass power plant,
The performance of straw biomass charcoal briquette machine:
1. High capacity, low price, low power consumption: 1.5-2.8 tons per hour, small power consumption.
2. Material strong adaptable: suitable for all kinds of biological material moilding, straw from powder to 50mm length, the moisture content is between 5-30%, can all be pressed into briquettes.
3. Electric heating function: automatic electrical heating device can adjust the humidity of material, solve the problems of congestion and briquetting.
4. The adjustment function of rollers: by using the principle of bi-directional thrust bearing rotation automatically adjust the pressure Angle, the wet material is not crowded, not boring maching, keep stable discharging molding.
5. The operation is simple, easy to use: high degree of automation, less labor, needs only three people, artificial feeding or automatic screw conveyor feeding.
6. Technological process: Crushing--Conveying--Briquetting--Products in store.
Technical parameters of straw biomass charcoal briquette machine:
| Model | LTM-6000 | LTM-IV | LTM-III | LTM-VI |
| Power | 45 kw | 30 kw | 18.5 kw | 22 kw |
| Capacity | 1.8-2.5 t/h | 1-1.5 t/h | 1-1.5 t/h | 1.5-2 t/h |
| Dimension | 3x1.2x1.96 m | 2x0.9x1.7 m | 2x0.9x1.6 m | 2x0.9x1.75 m |
| Weight | 3800 kg | 1500 kg | 1300 kg | 1500 kg |
| Length of raw material | 2-50 mm | 2-50 mm | 2-50 mm | 2-50 mm |
| Material water content | 5-30 % | 5-30 % | 5-30 % | 5-30 % |
| Shape and size of briquettes | [] 30-40 mm | Θ 20-35 mm | Θ 33 mm | Θ 33 mm |
| Density of briquettes | 0.9-1.4 g/cm3 | 0.9-1.4 g/cm3 | 0.9-1.4g/cm3 | 0.9-1.4g/cm3 |
| Calories | 3500-5500 | 3500-5500 | 3500-5500 | 3500-5500 |
The final product of the straw biomass charcoal briquette machine:
The operation principle:
1. Before starting: please firstly pure 25 kg gear oil, tighten the plug head fillingafter refueling.
2. Carefully check the power line, prevent the electric leakage and ensuring the safty of using electricity.
3. Carefully check the machine motor, transmission parts in parts of bolts, screws are solid, if there are any loose phenomenon, in order to timely fastening.
4. Sugarcane bagasse making machine for material requirements: the length should be less than 60mm corn straw,wheat straw which the water content should be 10-20%; the peanut shell,rice husk, which water content less than 12-14%.
5. Depending on the type of material before feeding set preheating temperature, corn and wheat straw between 70-90 degrees Celsius, peanut shell, rice husk between 80-100 degrees Celsius.
6. Idle for 1 minute before start up, check whether the machine rotation is normal, if normal, please firstly feeding for a little, after the remaining material is completely discharged out off the machine, then you can evenly feed material.
7. Before loading, please be sure to pay attention to the raw material of hard staff, put an end to stone and iron into the hopper so as not to damage the machine.
8. Every tine when run 8 hours, pure 2-3 drops of oil at a time. Please put a little wet material before downtime, so that the boot after discharge smoothly.
About our factory:
Through 30 years of development and technology innovation, our Lantian Mechanical Plant has developped to a professional manufacturer that set design, production, and after-sale service as a whole. In order to meet the different requirementd of customers, we designed and researched many types of charcoal processing machines, include grass briquette making machine, charcoal and coal briquette machine, shisha / hookah charcoal machine, sawdust charcoal briquette machine, charcoal extruder machine, etc, besides, we can also provide the assistant equipments for the whole production line,etc. In order to provide the best service to customers, we have also the certificates and patents of our machines.
