Factory Supplied Automatic Peanut Sheller Machine

Factory Supplied Automatic Peanut Sheller Machine photo-1
US$ 800 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
sheller
Use:
shelling peanut or camellia seed
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type sheller
Use shelling peanut or camellia seed
Production Capacity 400-450kgs/h
Place of Origin Henan, China
Brand Name HX
Model Number 50
Voltage 380V
Power(W) 3KW
Dimension(L*W*H) 1000*500*1300MM
Weight 150KGS
Certification ISO
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

peanut sheller machine
1.voltage per your request
2.suitable for shelling peanut and camellia seed
3.3KW

peanut sheller machine



Working principle of peanut sheller machine



Workers put the raw material into hopper firstly and them itself run into the rotary drum ,then the shell and kernel separation by use of the frictional force between marked steel plate and intaglio plate when rotating ,

 after that those mixture flows out via the front concave   hole and when passing the air flue ,the shell was blow out ,for the kernel and some unopened seeds automatically dropped into weight screener for further separation,

and pure kernel comes out from screen upper and connected with a plastic bag , for the seeds still with shell they flows into the hopper again under the force of fan for a second hulling



Features:



Simple instruction and easy to operate , all index are accordance with international standard

low power consumption ,

small noise ,

save labour ,

90% good hulling performance ,

low impurity , clean separation ,



Main Parts of peanut sheller machine :

  1. hopper
  2. mchine frame
  3. discharge hole
  4. blower for peanut husk
  5. screener
  6. belt pulley
  7. two motors

Application :



factory supplied automatic peanut sheller machinefactory supplied automatic peanut sheller machine



                                                                          peanut                                                                                                                    camellia seed

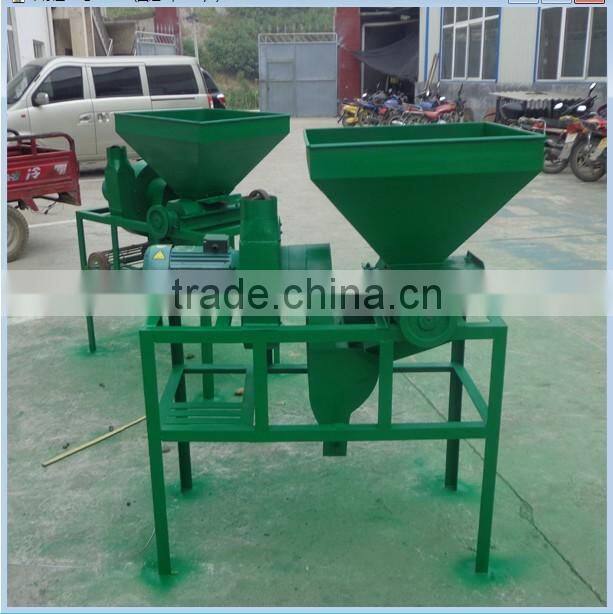

 Photo of  our peanut sheller machine



factory supplied automatic peanut sheller machine
