Waste Motor Rotor Crusher for recycling copper wire and steel lumps
Working principle of Waste Motor Rotor Crusher :
Material fall into the high speed rotating impeller vertically, under the action of centrifugal force , and will produce high speed impact and smash with another part of material which distribute in umbrella form around that impeller , after such a kind of hitting each-other, they will smash due to multiple impact and friction between impeller and machine casing (eddy generation), and then discharge directly from lower location .
Forming a closed multiple circulation , via a vibrating screen to control the fineness of finished product you need. (size of finished iron block and copper wire are adjustable by changing screen mesh )
Application :
Features of Waste Motor Rotor Crusher :
- powerful twisting (Hard Torsional Flex),high capacity , low noise and abrasion resistance
- can reduce the volume which waste will occupied , convenient to transport and also can save storage space , okay to accept continuous and intermittent feeding
- high smash ratio , high production efficiency , and discharging granularitycan be adjustable per your request ,and will not be affected by abrasion from Plate hammer and lining board,
- the driving unit in machine being equipped with electric security protector , it can prevent equipment damaged due to accident happened .
- without screen-strip design
- scrap motor rotor crusher adopts elastic adjusting mechanism ,and those unbroken material will discharge automatically and we promise no equipment damaged comes.
- horizontally disposed of bearings, long working life
- In our design , there are screw rod and hydraulic open mechanism in the afterbody of the cavity , and can easily and safely to change quick-wear parts and no need to start the main engine.
-
Rotor body are designed with a unique structure ,so…..basically a few abrasion happened when crushing .
Specifications of all model Waste Motor Rotor Crusher :
model |
Rotor Diameter
|
power |
Handling capacity |
Motor |
weight |
HDFH-700 |
550mm |
45KW |
2T/H |
y-4 |
3ton |
HDFH-1000 |
800mm |
90KW |
5T/H |
y-6 |
8ton |
HDFH-1200 |
800mm |
132KW |
7T/H |
Y-6 |
10ton |
HDFH-1400 |
860mm |
200 |
10 |
Y-8 |
15ton |
Step 1: crushing( motor rotor)
Step 2: install a magnetic separator, and then the iron will be picked out , for the rest mixture of copper wire and plastic pieces , it is okay to solve by a copper wire machine (crushing and separating machine for getting copper and plastic granule)
Detailed Photo of Waste Motor Rotor Crusher and Its auxiliary equipment :

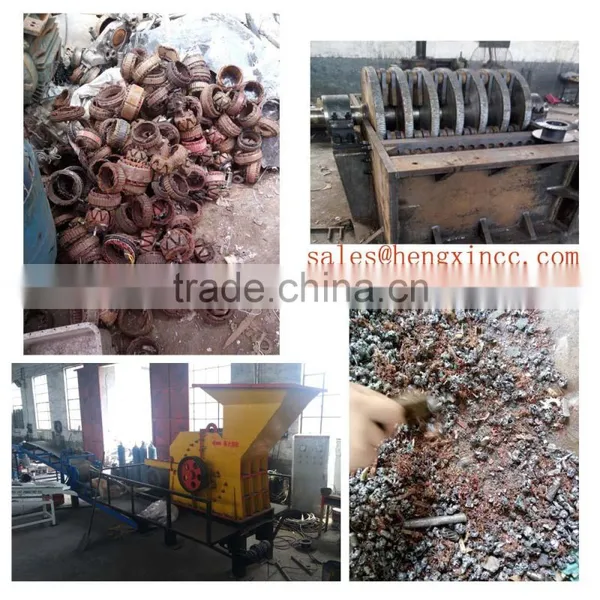

Photos of spare parts and true production site
Production Line Design Drawings for dismantling and crushing waste motor rotor
For any interest on our Waste Motor Rotor Crusher , pls feel free to contact as below Info :
We are a trading company , but now only cooperate with several fixed machinery factory which produce good quality equipment . In past three years , with more and more understanding on product knowledge in the whole(true) communication process , and naturaly we will give up the low credibility and poor quality supplier , so.....choose us as a partner , firstly means that you are guaranteed on machine performance . As for that price , maybe we are not the lowest , but I am sure we are the best as dealed . To give you a reference , here as below I show you the main production line we are versed in :
1. tradtional squeezing edible oil + refining
2. steel wire nail
3. sawdust briquetting
5. fruit /tuber vegetable cleaning( peeling) + cutting+ dehydration oven + vacuum package (Nitrogen Filling)
6. tofu machine
7. coffeen bean roaster + grinder (also applicable for various seasoning , sugar , salt and etc)
8. waste vehicle oil purifier processing recycling equipment for getting oil and metal pieces
9. motor rotor crushing separating machine
- Before sending the machine , we will test , for any problems , we will find timely and moreover make approprite adjustment , speak from this aspect , we can guarantee each machine comes in 100% good quality , and you can use directly after connect with electric power
- Operating video will be sent to clients together with instruction book , to help them for a better use.
- Any Problems occurred while running , professional advice(technic support) will be given by us within 24 hours via email .
- Ware parts of hammer , blade and screen mesh are supplied from us all the year round .
-
One year guarantee for whole machine except spare parts .
