Specifications
oil expeller plant1.voltage per your request
2.two year quanlity guarantee
3.handle 250kgs seeds per hour

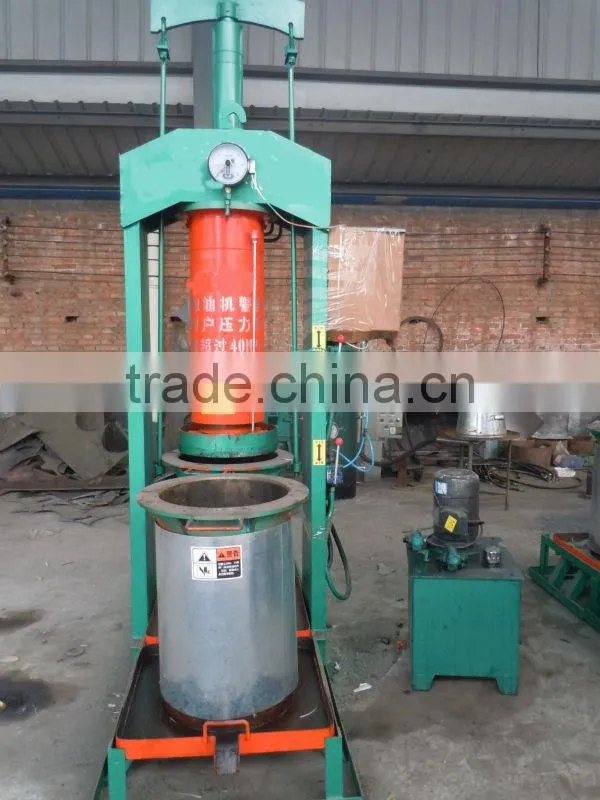

Oil Expeller Plant
Working Principle of Oil Expeller Plant

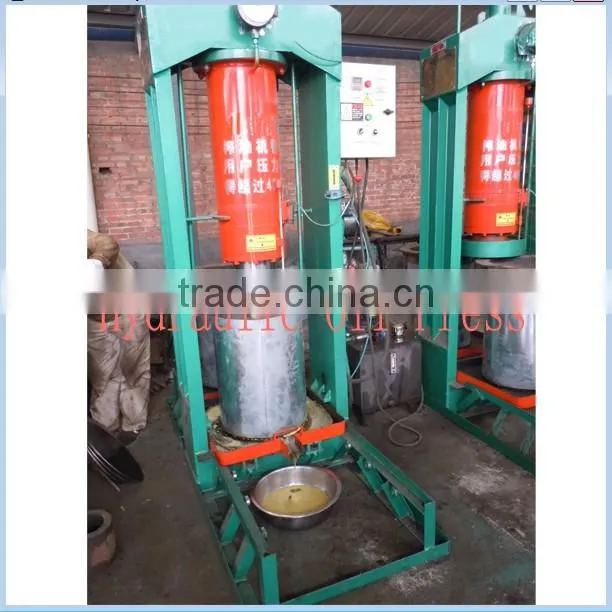

The main working principle is use of the thrust of the hydraulic cylinder, filling and preload the raw material, then extract oil, automatic maintaining pressure, complete the oil press once only.

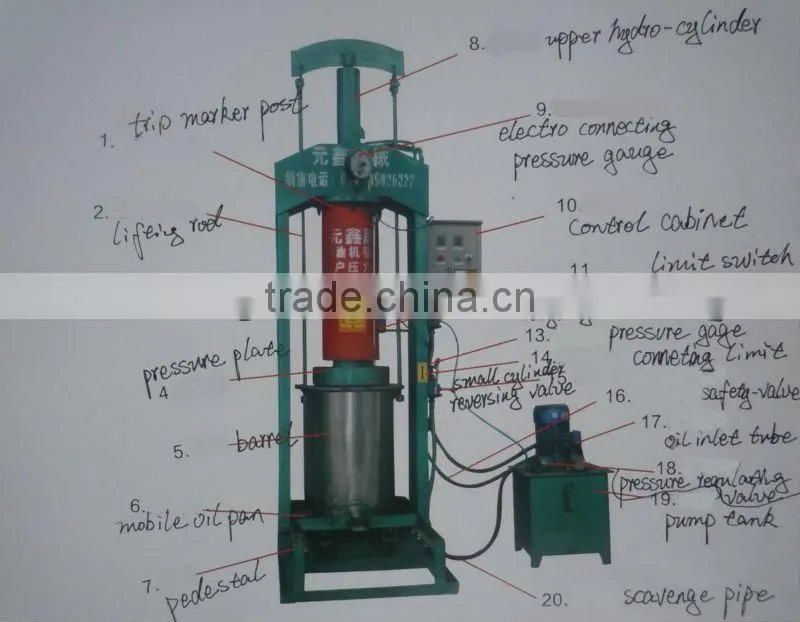

Instruction of Oil Expeller Plant
Features of Oil Expeller Plant
- widely application:
palm fruit, palm kernel, coconut, peanut, cashew, avocado, tiger nut, mustard seeds, rapeseeds, peanut, sesameseeds,pine nut ,oilve and etc.Valuable oil seeds
- both cold and hot pressing are all okay
- output rate 42-52%
- less waste
Working Procedure of Oil Expeller Plant

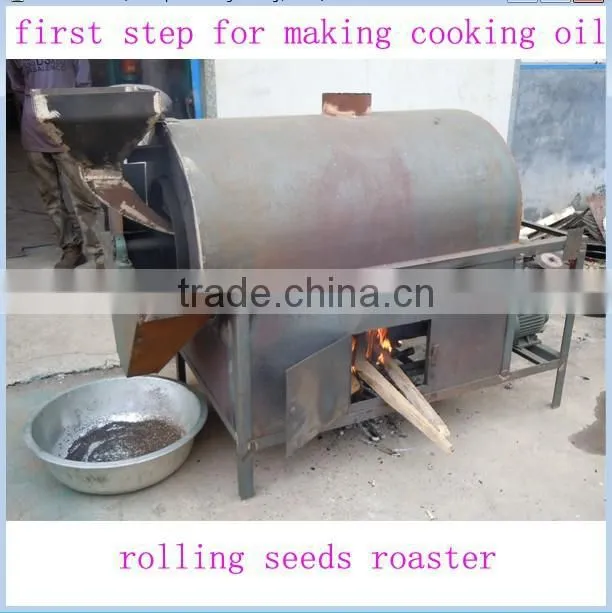

- drying the oil seedsl till that feels hot and can easily smash when pinch

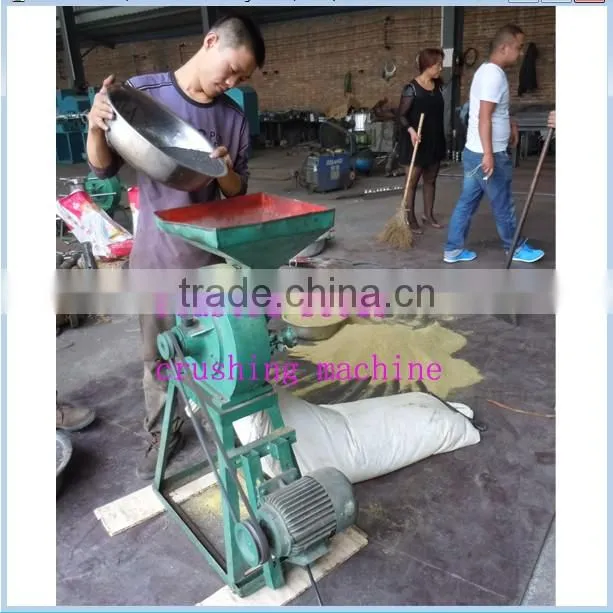

- crushing the baked seeds into powder ,the finer the better

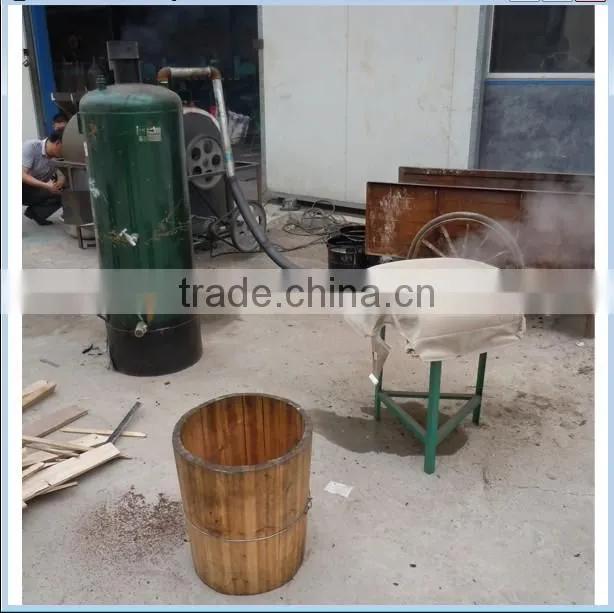

- putting the powder into the steamer till there are oil flows out when grasp in hand as a ball .The longer time steamed the more oil.
- Filling the steamed oil seeds powder into the drum and then press ,during this period ,pls notes that :

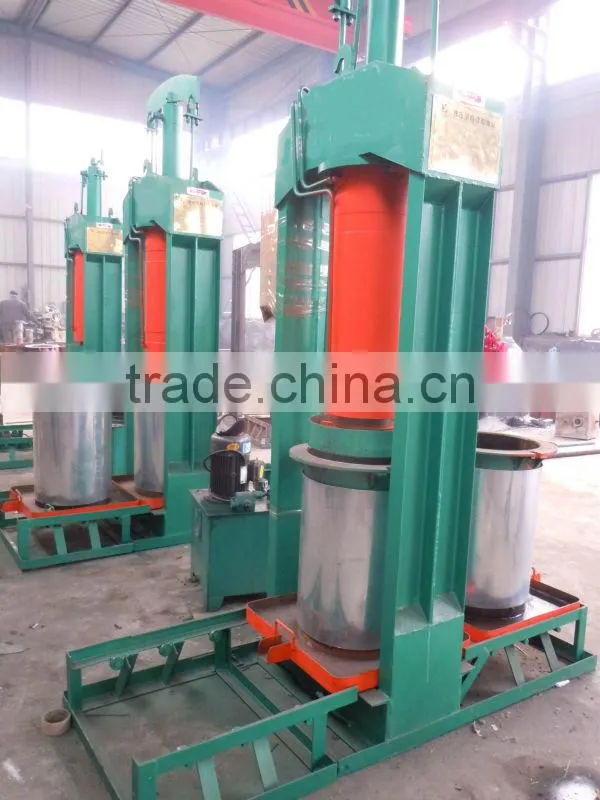

(1) take turns to use the two barrels ,when one is pressing and the other one is preparing or filling
(2) putting some straw on the bottom of barrel to avoid the raw material sticked on the division board , approximately every 10-15kgs raw material requires one division board and meanwhile do add some straw on its upper and below side.
Remark: Also we have another type with single barrel ,the working principle are same with double barrel type, and the only difference is you have to waste more time to putting the new material for a second pressing after first pressing finished ,therefore its productivity is a little smaller .

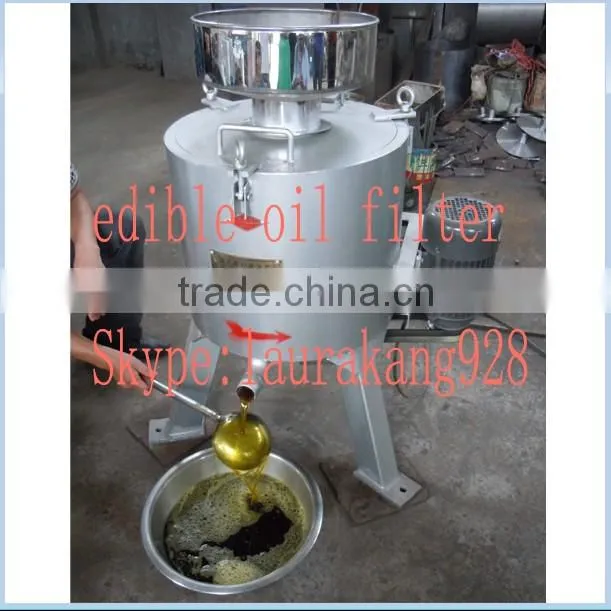

- Purify the crude oil by use of centrifugal force comes from high speed rotating of inside barrel to seperate the clean oil and suspendig impurity well.

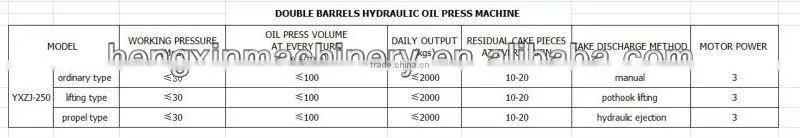

Specifications Of Oil Expeller Plant
Business Card

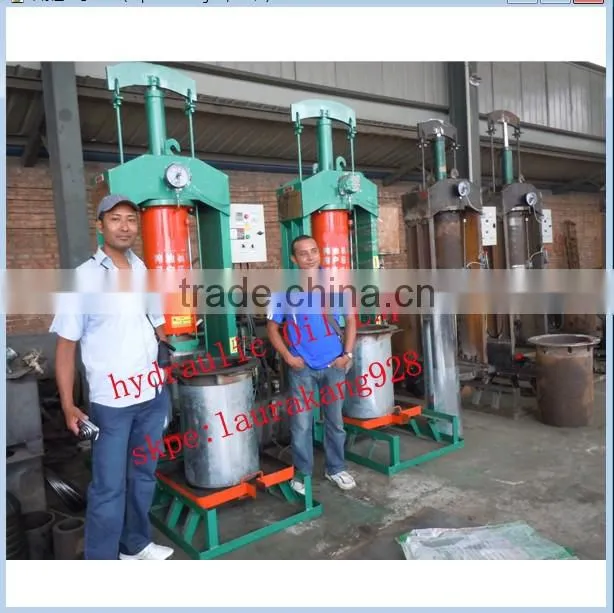

Photo shows
Residual cake

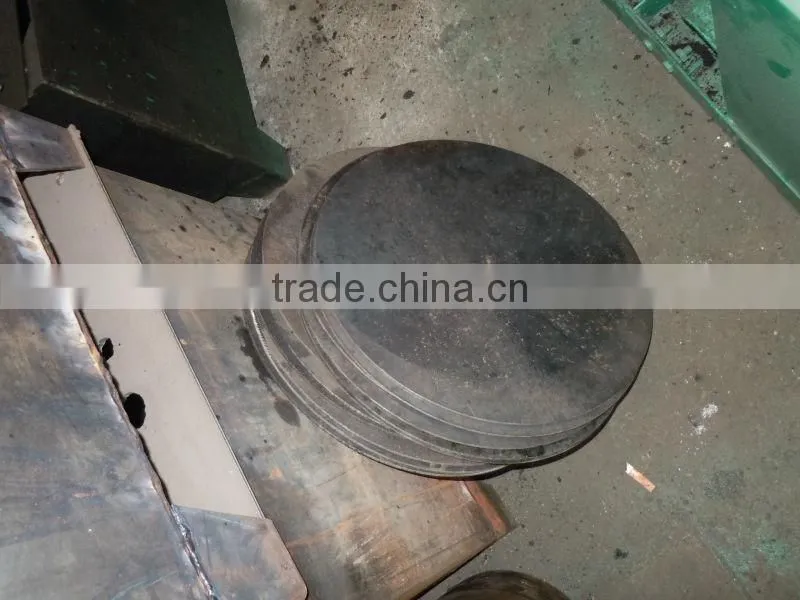

Steel Plate

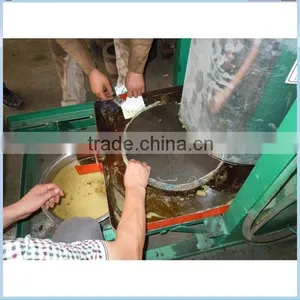

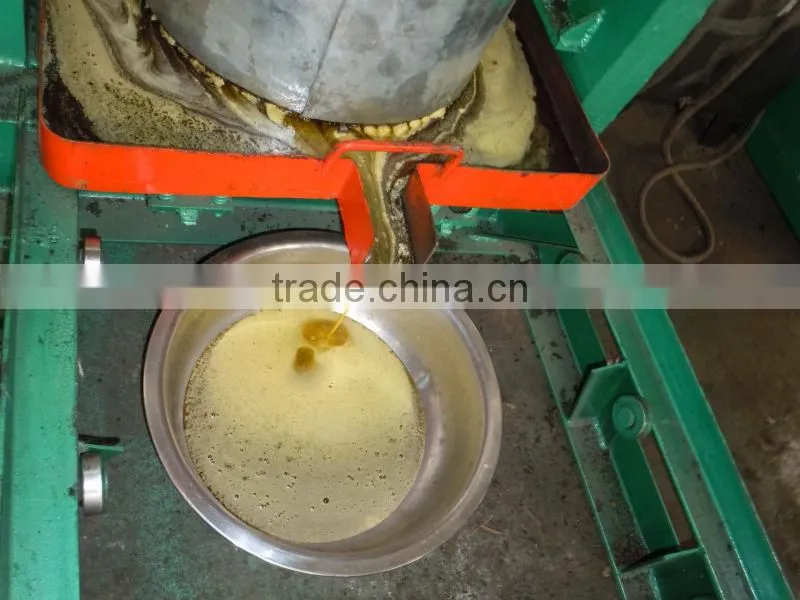

Crude Oil
