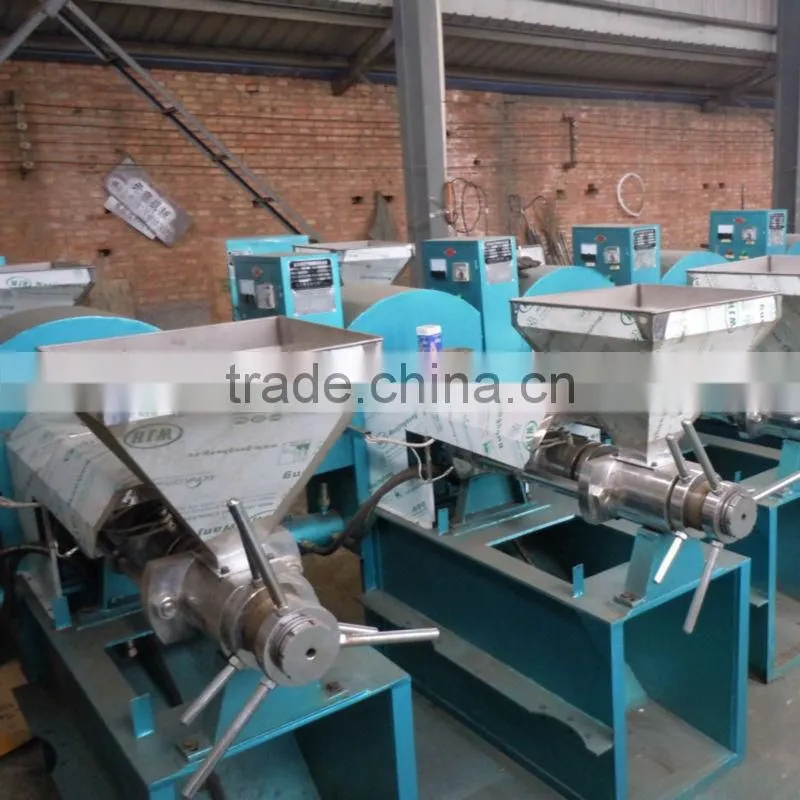

soya/rapeseed/peanut spiral edible oil processing machine

 Edible Oil Processing Machine , plants oil processing line , Screw Press , Eating Oil Squeezer , Screw type oil expeller , Oil Press Machine ,Oil expeller, Oil Mill

1.WORKING PRINCIPLE of Edible Oil Processing Machine

The power comes from main motor being passed on to the shaft, and with the rotation there the worm push the oil crops seeds forward continually .because of the space between squeeze chamber and squeeze worm become more and more tighter,also with higher density of the raw material ,therefore the pressure increasing gradually. Meanwhile,due to the friction from oil particles movement surely much heating will appears , so far the two basic factors had been complete for oil technicals ,they damage the cell tissue and resulting in crude oil flows to the mixing tank via oil plate for further simple filter,in this way,the oil residue was segregate on the screen.And related to the cake residual ,they are being pushed out from special designed discharge hole.

2.TECHNICAL PARAMETER OF EDIBLE OIL PROCESSING MACHIEN

3.MACHINE PERFORMANCE TESTING

4.FEATURES

1.Fully automatic with 2 vacuum oil filters ,not only save labour about 60% (one or two person are okay

   for  operate one machine)but also remove residue so as to ensure the pure oil quality and meet the  standard of health guarantine

2.Small land using---only 10-20 square meters is enough for production

3.Widely-used: it can be used to completely press more than 20 kinds of oil crops, such as

   peanuts,sesame ,rapeseeds,soybean,sunflower seeds and flax and etc by third levels for one time.

4.Cake residual oil rate---only 6%-7%. So the cake also can be used for animal feed.

5.Low investment, get more profit

6.machine surface is made of chrome plated stainless steel, in line with food hygiene standards

5.MACHINE COMPONENTS

It is mainly composed by 7 major parts respectively that is screw axis ,press cage,feed mechanism ,cake yielding mechanism ,transmission system,electric control part and vacuum filter part.All the parts are assembled on one frame and screwed as a whole.

 6.PROFESSIONAL ADVICE

Please kindly inform us your required daily capacity, treated quantity, raw material, covering space and related data,so that we can make flow chart production line for you as your requiremen.We will stand at your point to suggest low cost and suitable production line for you.

Sincerely want to cooperate with you.

7.BUINESS CARD

8.BASIC PROCUDURE

hulling—screening—grinding---drying---pressing ---refinery --eating oil

kindly notes that we adopt different processing technics according to different raw material.

9,DETAILS SHOWS (photos)
