Specifications
5000kg/h Negative Gravity SeparatorProductivity: 5000kg/h
Power: 6.8
45kW diesel generator
Chines Weichai engine

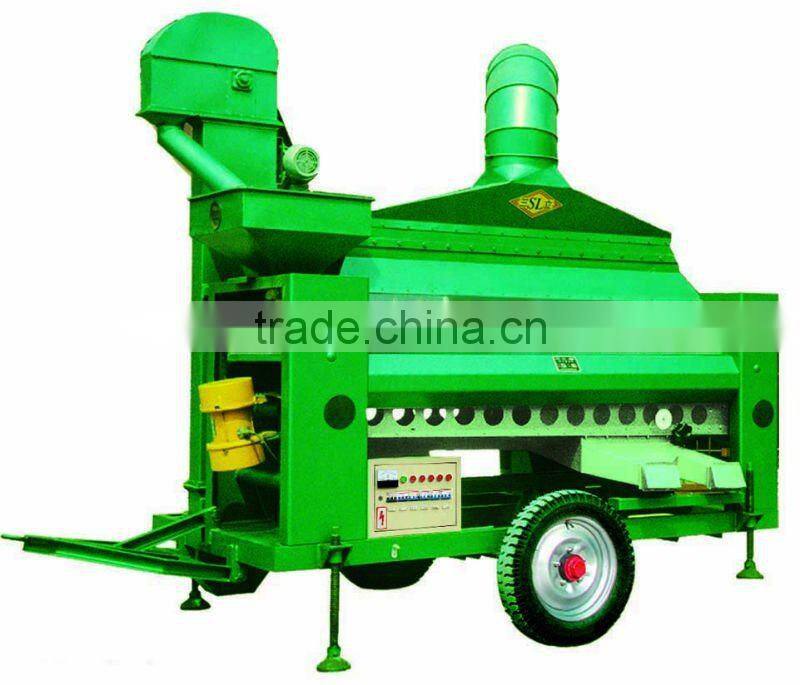

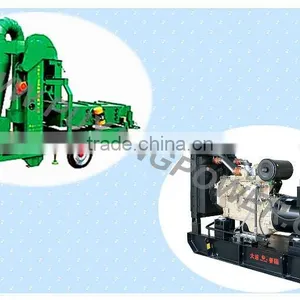

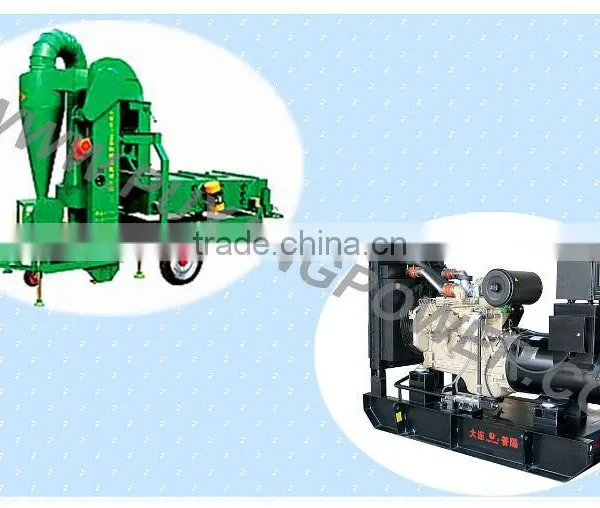

Negative Gravity Separator powered by 45kW Diesel generators
Brief Introduction
This machine can separate different materials into different layers by adjusting air pressure and vibration rate. High gravity material will sink while low gravity material will rise. After material enters the drop area, the machine will discharge different material from different exits, achieving accuracy.
The machine is ideal for sifting grain seeds, tree seeds and cotton seeds. It can eliminate inferior grain, grain with buds, moth bitten seeds, rotten seeds, black-powder disease seeds, seed with glumes, grass seeds, sand and stones with a diameter below 2mm. It can also clear out soil. After sifting ,the produce quality ,including weight per thousand seed, bud rate, cleanliness and consistency, will be greatly improved. Even better results can be gained by sifting wheat seed, corn seed, rice grain, cotton seed, broomcorn, beans, rapeseed, vegetable seed, pine nuts, larch etc.
The machine is practical ,flexible, efficient, user-friendly and mobile. It is reliable, stable, the shock absorbing cover is robust. This machine is technically excellent in its class in China.
Main performance indicators and technical parameters
Model | PY5XJC-5 |
Productivity | 3000 Kg/h |
Size (L×W×H) | 4000×1990×2880mm |
Weight | 1300 Kg |
Power supply | 380V 50Hz |
Total power | 6.8 Kw |
Air volume of fan machine | 4012-7419 M3/H |
Air pressure of fan machine | 2014-1320 Pa |
Sieve size(L×W) | 2000×450mm |
The diameter of aspirator pipe | 300 mm |
Selection Rate | ≥97% |
Remove light impurity rate | ≥83% |
Remove Heavy impurity rate | ≥80% |

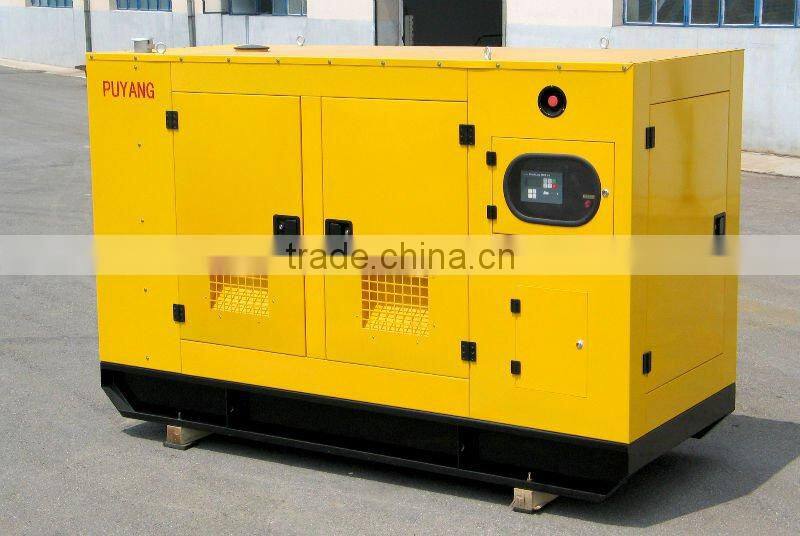

Specifications of 45kw diesel generator:
Model No. : PFC56
Prime Power: 45kw/56kva
Standby Power: 50kw/63kva
Engine Model: 4BTA3.9-G2
Alternator Model: MP-48-4
Dimensions: 1860 x 730 x 1225mm
Weight: 680kg
Engine Specification
Manufacturer/brand: Cummins
Model No: 4BTA3.9-G2
Engine Type: 4L, 4 -cycle
Max. Engine Power:55 kW
Aspirate: Turbocharged, inter cooled
Governor Type: Electronic governor
Cooling Method: Forced water circulation
Number of cylinders: 4
Bore x stroke: 102 x 120mm
Displacement : 3.9 L
Compression ratio: 16.5:1
Fuel consumption:
75% L/hr
100% L/hr 10.3
Lub. Oil Capacity: 11L
Coolant Capacity: 20L
Exhaust Gas Volume: n 9.3 m³/mi
Exhaust Temperature: 485 °C
