Specifications
electric heaters1.Power:2000W
2.Heating area:15~20 M2
3.Technology:Anodicoxidation
4.Temperature:230-270 degrees
CE 220 volt Home electric heaters heating equipment
Infrared electric heaters use tubular heaters that reach high temperatures and radiate sufficient heat from overhead.Infrared heaters come in many different lengths and sizes and are an excellent choice for outdoor applcaitions
Features:
(1) Comfortable: No wind, light or odor will be caused during the running of this product, so the indoor air is clean without floating dust.
(2) Energy-saving: This product has high heat generation efficiency and good heat radiation effect, controls the temperature intelligently, and saves power and energy
(3) Reliable: The indoor temperature can be freely adjusted, free of the limitation of heating season. The service life of this product is up to 20 years
(4) Physical therapy: The heat radiant can change body microcirculation, cell organization under skin producing resonance, clearing the barrier of microcirculation, adjusting and balancing nervous system promoting metabolism, increasing body physical power. It is very good for your health
Specification:
- Model:PF-NR20-11A
- Output power: 2000W

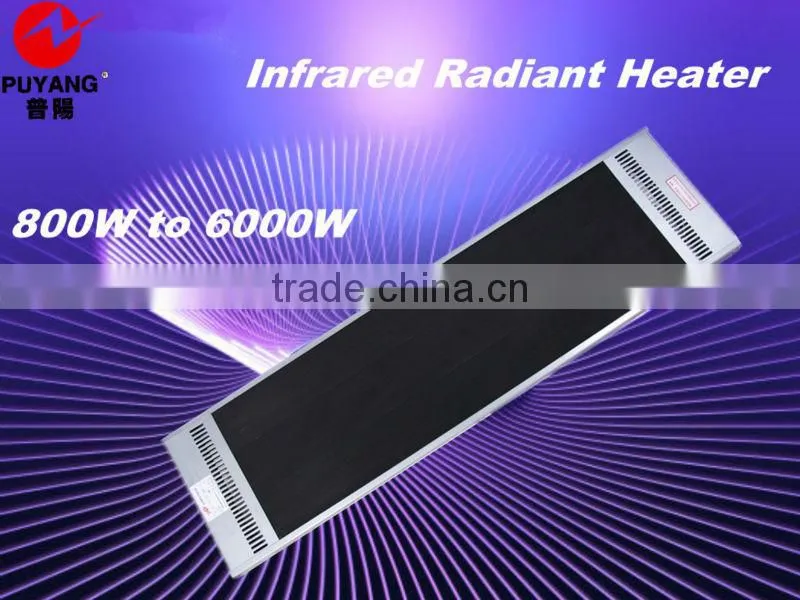

- Electric heater type: Infrared heater
- Heating element: carbon fiber
- Outer covering: Cold-rolled plate
- Surface material : Aluminium alloy
- Technology: Anodicoxidation
- Temperature: 230-270 degree
- Time up to 270 degrees in 3minutes
- Heating area: 15-20 M2
- Installation: celling;wall mounted
- Function: overheat protection;adjustable thermosta

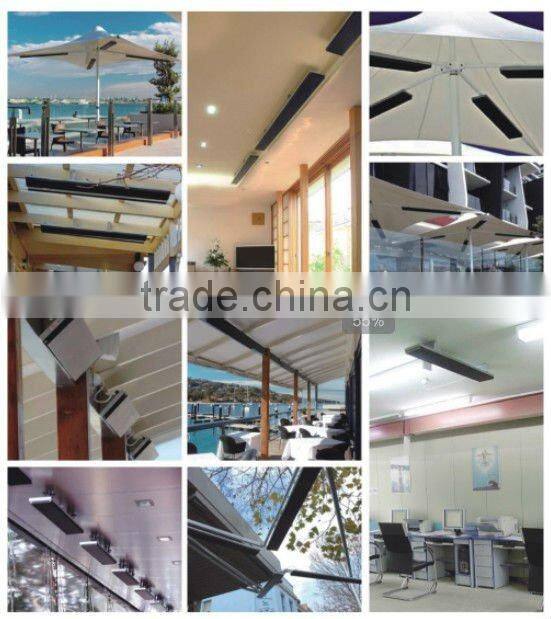

- Use living room,bedroom,office,garden,factory, shop and so on
- Size: 1170*270*75 MM
- Weight:10KG
- Package:carton
INSTRUCTION REQUIREMENTS
1. Qualified installer:
Electrical installation certificate shall be held by professional installation personnel, the installtion process should meet the national electrical safety standards.
2. Installation condistions:
2.1 Supply voltage fluctuation range should be within+ 10%, if do not meet, must be revised before installation.
2.2 If there is a serious security risk in users’ electricity enviroment, the installtion should be refused, until eliminate the security risks.
2.3 Electricity lines should be equipped with earth leakage protection devices and master switch.
2.4 Ground wire should be connected to the grouding device on the building, if not, please consult to professional installer, please do not put ground wire to gas pipe, water pipe, lighting rod or telephone grounding wire.
3. Installation requirement:
3.1 Power supply for radiant heater must with particular power-supply branch circuit
3.2 Must be added a circuit breaker, the circuit breaker is an all-pole disconnection, and electric shock distance at least 3mm, power distribution wiring must meet the following requirements:
Conductor cross-section area, switch type and load current chart
Model No. | Rated voltage(V) | Rated current(A) | Conductor cross-sectional area(mm) | Suggest power switch specification(A) |
PF-NR08-11A | 220~240 | 3.6 | 1~2.5 | 16 |
PF-NR10-11A | 220~240 | 4.5 | 1~2.5 | 16 |
PF-NR12-11B | 220~240 | 5.5 | 1~2.5 | 16 |
380~415 | 1.8 | 1~2.5 | 16 | |
PF-NR15-11B | 220~240 | 6.8 | 1~2.5 | 16 |
380~415 | 2.3 | 1~2.5 | 16 | |
PF-NR20-11A | 220~240 | 9.1 | 1~2.5 | 16 |
PF-NR40-11A | 220~240 | 17.7 | 2.5~6 | 25 |
380~415 | 5.9 | 1~2.5 | 16 | |
PF-NR55-11A | 380~415 | 8.2 | 1~2.5 | 16 |
PF-NR60-11A | 380~415 | 13.6 | 1.5~4 | 25 |
Note: 220-240V is single phase, 380-415V is there phase
INSTRUCTION METHOD
- Product must be installed by professional installation personnel, and with national safety standards for electrical installation.
- Rated voltage and power supply must use dedicated circuit, devices connected to the power outlet must have ground wire.
- Determine the installation location of radiant heater, check the installation location can support four times of radiant heater weight, it should be reinforced before installation if can not support.
- Choosing hanging rod bolts, fix 4pcs M8 screws on 4 positions of the bank radiant heater, as picture1.
- Product can be installed on the ceiling/bracket or hanging installation. Be ensure that the space not less than requirements shown on picture2.
- Please refer to wiring diagram.
