popular in Europe!!! high efficiency infrared radiant heater(800W--6000W)

Specifications

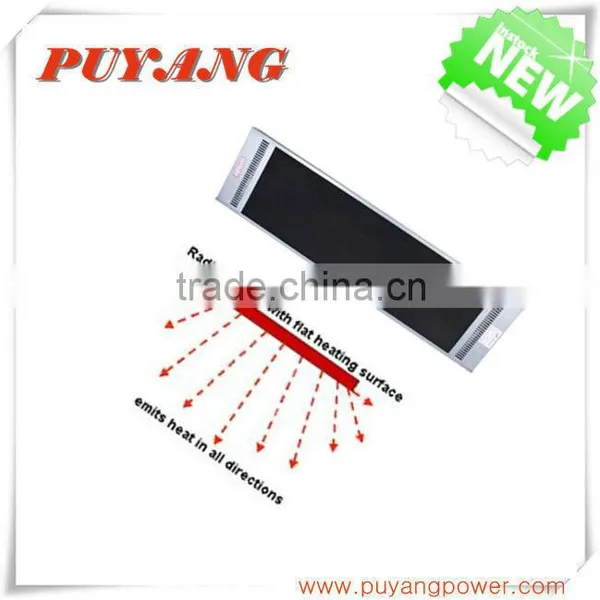

infrared radiant heater
1.Power:1KW
2.Heating area:8-10M2
3.Technology:Anodicoxidation
4.Temperature:300 degrees

Outdoor heater



Specification:

1. Model:PF-NR10-11A
2. Output power: 1000W
3. Electric heater: type Infrared heater
4. Heating element: carbon fiber
5. Outer covering: Cold-rolled plate
6. Surface material: Aluminium alloy
7. Technology: Anodicoxidation
8. Temperature: 230-270degree
9. Time up to 300 degrees in 3minutes
10. Heating area: 8-10m2
11. Installation: celling;wall mounted
12. Function: overheat protection;adjustable thermostat
13. Use: living room,bedroom,office,garden,factory, shop and so on
14. Size: 860*270*75MM
15. Weight: 8kg
16. Package: carton



Construction:

1. Casing: high quality cold-rolled steel plate finished with electrostatic powder spraying;
2. Heating element: carbon fiber
3. Surface: aluminum radiant panel with black infrared oxide radiant coating.



Feature:

1. Radiant effect
2. Quick Warm Up: 3-5 minutes
3. Ceiling and wall nounted
4. Maintenance Free
5. Silent and Draught Free with No Light Output
6. Comfortable and clean



Certificate: ISO,CE











Delivery time: 15 days











Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.







INSTRUCTION METHOD



1. Product must be installed by professional installation personnel, and with national safety standards for electrical installation.
2. Rated voltage and power supply must use dedicated circuit, devices connected to the power outlet must have ground wire.
3. Determine the installation location of radiant heater, check the installation location can support four times of radiant heater weight, it should be reinforced before installation if can not support.
4. Choosing hanging rod bolts, fix 4pcs M8 screws on 4 positions of the bank radiant heater, as picture1.
5. Product can be installed on the ceiling/bracket or hanging installation. Be ensure that the space not less than requirements shown on picture2.
6. Please refer to wiring diagram.



















Application:

It is the best solution in places where there is a need for high capacity heating, such as

1. Factory and industrial places: warehouse and large depot
2. Commercial spaces: stores and shopping malls
3. Home: living room and bed room.



Keyword: infrared radiant heater/electric radiant heater/infrared radiant heating panel/ elctric heater/electrical radiant panel heater/ radiant heating panel/ radiant heater panels/ heating equipment/ infrared heating panels



Installatiion:





Package:
