Specifications
Infrared Radiant Heater1.Power:800W
2.Heating area:6-8M2
3.Technology:Anodicoxidation
4.Temperature:300 degrees

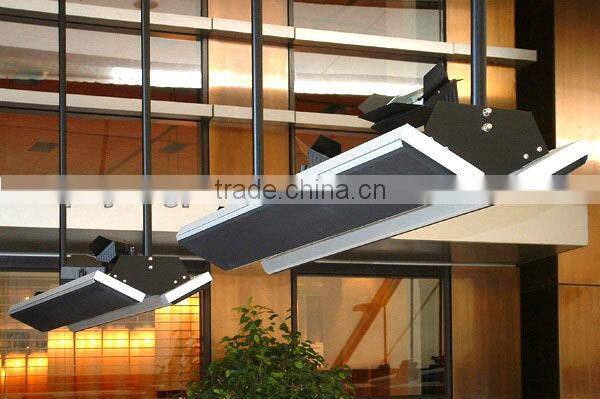

800W Infrared Radiant Heater for home appliance
1.What's infrared radiant heater?
Infrared heaters use tubular heaters that reach high temperatures and radiate sufficient heat from overhead.Infrared heaters come in many different lengths and sizes and are an excellent choice for outdoor applcaitions.
2.What is its feature?
1.Infrared radiant heaters are economic, efficient, and clean.
2.Infrared radiant heaters are designed for comfort heating applications that require radiant heat in indoor, outdoor, and exposed areas through direct infrared heat transfer.
3.Where do we ust it?
Used in large areas such as arenas, sawmills, ice rings, gymnasiums auditoriums, racetracks, parking garages, aircraft hangars and large areas that require radiant heating
4.Specification
1 | Model | PF-NR08-11A |
2 | Output power | 800W |
3 | Electric heater type | Infrared heater |
4 | Heating element | carbon fiber |
5 | Outer covering | Cold-rolled plate |
6 | Surface material | Aluminium alloy |
7 | Technology | Anodicoxidation |
8 | Temperature | 230-270degree |
9 | Time | up to 300 degrees in 3minutes |
10 | Heating area | 6-8m2 |
11 | Installation | celling;wall mounted |
12 | Function | overheat protection;adjustable thermostat |
13 | Use | living room,bedroom,office,garden,factory, shop and so on |
14 | Size | 860*270*75MM |
15 | Weight | 8KG |
16 | Package | carton |
INSTRUCTION METHOD
- Product must be installed by professional installation personnel, and with national safety standards for electrical installation.
- Rated voltage and power supply must use dedicated circuit, devices connected to the power outlet must have ground wire.
- Determine the installation location of radiant heater, check the installation location can support four times of radiant heater weight, it should be reinforced before installation if can not support.
- Choosing hanging rod bolts, fix 4pcs M8 screws on 4 positions of the bank radiant heater, as picture1.
- Product can be installed on the ceiling/bracket or hanging installation. Be ensure that the space not less than requirements shown on picture2.
- Please refer to wiring diagram.
