Full range far infrared radiant eletric heater for home use

Specifications

radiant eletric heater for home use
1.Power:0.8-6KW
2.CE certificate
3.Warranty:1 year
4.Temperature:300 degrees

Full range far infrared radiant eletric heater for home use





1.What's infrared radiant heater?

Infrared heaters use tubular heaters that reach high temperatures and radiate sufficient heat from overhead.Infrared heaters come in many different lengths and sizes and are an excellent choice for outdoor applcaitions.



2.What is its feature?

1.Infrared radiant heaters are economic, efficient, and clean.

2.Infrared radiant heaters are designed for comfort heating applications that require radiant heat in indoor, outdoor, and exposed areas through direct infrared heat transfer.



3.Where do we ust it?

Used in large areas such as arenas, sawmills, ice rings, gymnasiums auditoriums, racetracks, parking garages, aircraft hangars and large areas that require radiant heating



Series	Model	Specification	Heating Power	Voltage	Heating Area
		Length*Width*Height
		mm	W	V	M2
Residential	PF-NR08-11A	860x270x75	800	220/380	6~8
	PF-NR10-11A	860x270x75	1000	220/380	8~10
	PF-NR12-11B	860x395x75	1200	220/380	10~12
	PF-NR15-11B	860x395x75	1500	220/380	12~15



Series	Model	Specification	Heating Power	Voltage	Heating Area
		Length*Width*Height
		mm	W	V	M2
Commercail	PF-NR20-11A	1170x270x75	2000	220/380	15~20
	PF-NR40-11A	1470x395x75	4000	220/380	20~40
	PF-NR55-11B	1470x520x75	5500	220/380	40~55
	PF-NR55-11A	1825x397x75	5500	220/380	40~55
	PF-NR60-11A	1820x520x75	6000	220/380	55~60



4. INSTRUCTION METHOD

1. Product must be installed by professional installation personnel, and with national safety standards for electrical installation.
2. Rated voltage and power supply must use dedicated circuit, devices connected to the power outlet must have ground wire.
3. Determine the installation location of radiant heater, check the installation location can support four times of radiant heater weight, it should be reinforced before installation if can not support.
4. Choosing hanging rod bolts, fix 4pcs M8 screws on 4 positions of the bank radiant heater, as picture1.
5. Product can be installed on the ceiling/bracket or hanging installation. Be ensure that the space not less than requirements shown on picture2.
6. Please refer to wiring diagram.

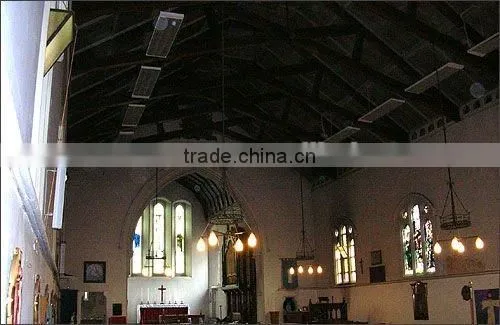

5. Installation photos







 6. Package:
