Ceiling Mounted Infrared Electrical Heater

Dalian Puyang International Trade Co., Ltd.
Ceiling Mounted Infrared Electrical Heater thumbnail-1
Ceiling Mounted Infrared Electrical Heater thumbnail-2
Ceiling Mounted Infrared Electrical Heater thumbnail-3
Ceiling Mounted Infrared Electrical Heater thumbnail-4
Ceiling Mounted Infrared Electrical Heater thumbnail-5
Ceiling Mounted Infrared Electrical Heater photo-1
Ceiling Mounted Infrared Electrical Heater photo-2
Ceiling Mounted Infrared Electrical Heater photo-3
Ceiling Mounted Infrared Electrical Heater photo-4
Ceiling Mounted Infrared Electrical Heater photo-5
US$ 99 - 299 MOQ: 30 Units
Key Specifications
Get Latest Price
Electric Heater Type:
Infrared Heater
Infrared Heater Type:
Bathroom Heater
Number of Bulbs:
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Heater Type Infrared Heater
Infrared Heater Type Bathroom Heater
Heating Element Carbon Fiber
Installation Ceiling, Wall Mounted
Function Adjustable Thermostat, Overheat Protection
Use Bedroom, Garden, Living Room
Place of Origin Liaoning, China
Brand Name Puyang, Puyang
Model Number PF Series

Specifications

infrared electrical heater
1.Power 800W~6000W
2.Anodicoxidation technology
3.up to 300 degree
4.Carbon fiber heating

Ceiling mounted infrared electrical heater



SeriesModelSpecificationHeating PowerVoltageHeating Area
Length*Width*Height
mmWVM2
ResidentialPF-NR08-11A860x270x75800220/3806~8
PF-NR10-11A860x270x751000220/3808~10
PF-NR12-11B860x395x751200220/38010~12
PF-NR15-11B860x395x751500220/38012~15
CommercialPF-NR20-11A1170x270x752000220/38015~20
PF-NR40-11A1470x395x754000220/38020~40
PF-NR55-11B1470x520x755500220/38040~55
PF-NR55-11A1825x397x755500220/38040~55
PF-NR60-11A1820x520x756000220/38055~60





APPLICATIONS:

--OFFICE BUILDING,
Entryways, Enclosed Walkways and Perimeter Heat With Variable Air Volume Systems.
--INSTITUTIONAL
Classrooms, Cafeterias and Swimming Pool Areas.
--HOSPITAL
Hydrotherapy, Nurseries, Burn and Trauma Areas.
--RESIDENTIAL
Bathrooms, Above Floor To Ceiling Windows and ` Sliding Doors, Other Cold Spot Areas.

For Complete or Supplemental Heating In Commercial, Residential and Institutional Structures
- In New or Remodeled Construction . . .
Clean, Gentle, Comfortable Heat
Great For Offsetting Perimeter Heat Loss . . .

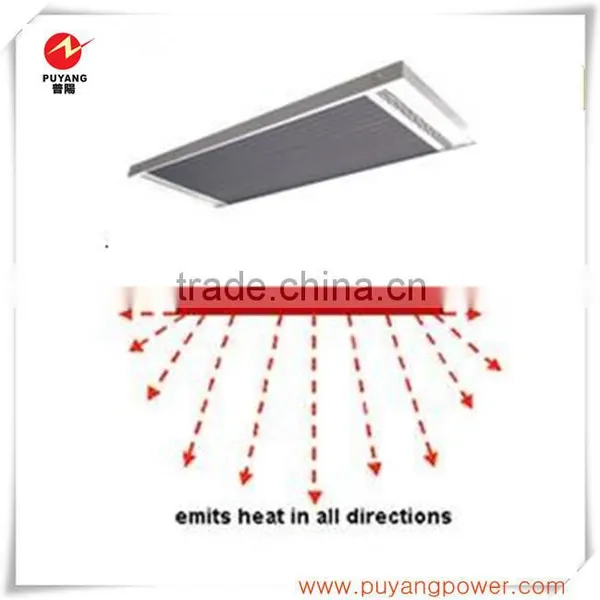

Saving Substantial Energy Over Other Systems By Heating People and Objects rather Than All The Air In a Room or Building.



INSTRUCTION REQUIREMENTS

1. Qualified installer:

Electrical installation certificate shall be held by professional installation personnel, the installtion process should meet the national electrical safety standards.

2. Installation condistions:

2.1 Supply voltage fluctuation range should be within+ 10%, if do not meet, must be revised before installation.

2.2 If there is a serious security risk in users’ electricity enviroment, the installtion should be refused, until eliminate the security risks.

2.3 Electricity lines should be equipped with earth leakage protection devices and master switch.

2.4 Ground wire should be connected to the grouding device on the building, if not, please consult to professional installer, please do not put ground wire to gas pipe, water pipe, lighting rod or telephone grounding wire.

3. Installation requirement:

3.1 Power supply for radiant heater must with particular power-supply branch circuit

3.2 Must be added a circuit breaker, the circuit breaker is an all-pole disconnection, and electric shock distance at least 3mm, power distribution wiring must meet the following requirements:

Conductor cross-section area, switch type and load current chart

Model No.

Rated voltage(V)

Rated current(A)

Conductor cross-sectional area(mm)

Suggest power switch specification(A)

PF-NR08-11A

220~240

3.6

1~2.5

16

PF-NR10-11A

220~240

4.5

1~2.5

16

PF-NR12-11B

220~240

5.5

1~2.5

16

380~415

1.8

1~2.5

16

PF-NR15-11B

220~240

6.8

1~2.5

16

380~415

2.3

1~2.5

16

PF-NR20-11A

220~240

9.1

1~2.5

16

PF-NR40-11A

220~240

17.7

2.5~6

25

380~415

5.9

1~2.5

16

PF-NR55-11A

380~415

8.2

1~2.5

16

PF-NR60-11A

380~415

13.6

1.5~4

25

Note: 220-240V is single phase, 380-415V is there phase





INSTRUCTION METHOD

  1. Product must be installed by professional installation personnel, and with national safety standards for electrical installation.
  2. Rated voltage and power supply must use dedicated circuit, devices connected to the power outlet must have ground wire.
  3. Determine the installation location of radiant heater, check the installation location can support four times of radiant heater weight, it should be reinforced before installation if can not support.
  4. Choosing hanging rod bolts, fix 4pcs M8 screws on 4 positions of the bank radiant heater, as picture1.
  5. Product can be installed on the ceiling/bracket or hanging installation. Be ensure that the space not less than requirements shown on picture2.
  6. Please refer to wiring diagram.



Ceiling mounted infrared electrical heaterCeiling mounted infrared electrical heaterCeiling mounted infrared electrical heater
