Home > Consumer Electronics > Water Heater & Components > Electric Water Heater > High Quality Radiant Heating Panels With 1 Year Warranty

High Quality Radiant Heating Panels With 1 Year Warranty

Name: High Quality Radiant Heating Panels With 1 Year Warranty
Brand: Puyang, Puyang
SKU: 141415542
Availability: InStock

Dalian Puyang International Trade Co., Ltd.

High Quality Radiant Heating Panels With 1 Year Warranty thumbnail-1

High Quality Radiant Heating Panels With 1 Year Warranty photo-1

US$ 99 - 299 MOQ: 100 Units

Key Specifications

Get Latest Price

Electric Heater Type:

Infrared Heater

Infrared Heater Type:

Bathroom Heater

Number of Bulbs:

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Electric Heater Type Infrared Heater

Infrared Heater Type Bathroom Heater

Heating Element Carbon Fiber

Installation Ceiling, Wall Mounted

Function Adjustable Thermostat, Overheat Protection

Use Bedroom, Garden, Living Room

Place of Origin Liaoning, China

Brand Name Puyang, Puyang

Model Number PF Series

Specifications

radiant heating panels
1.Power 800W~6000W
2.Anodicoxidation technology
3.up to 300 degree
4.Carbon fiber heating

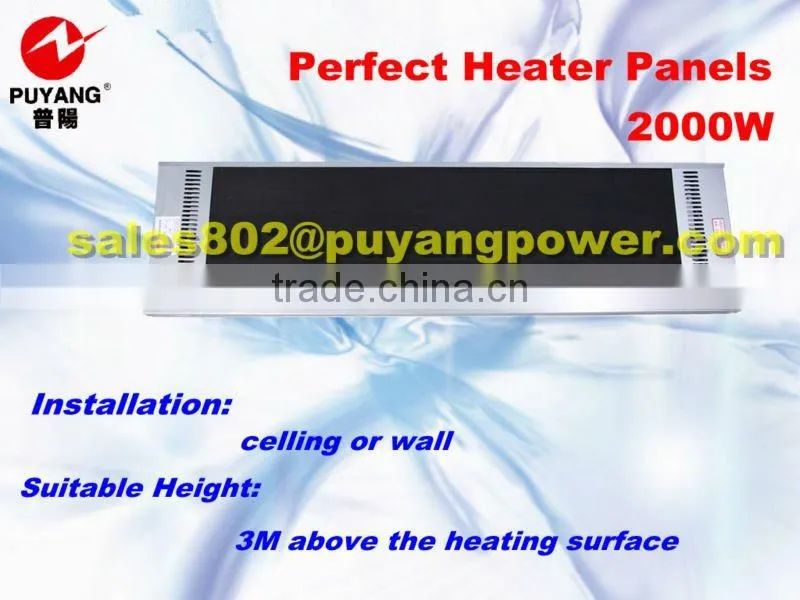

High Quality Radiant Heating panels with 1 year warranty

Series	Model	Specification	Heating Power	Voltage	Heating Area
		*LengthWidthHeight*	Heating Power	Voltage	Heating Area
		mm	W	V	M²
Residential	PF-NR08-11A	860x270x75	800	220/380	6~8
	PF-NR10-11A	860x270x75	1000	220/380	8~10
	PF-NR12-11B	860x395x75	1200	220/380	10~12
	PF-NR15-11B	860x395x75	1500	220/380	12~15
Commercial	PF-NR20-11A	1170x270x75	2000	220/380	15~20
	PF-NR40-11A	1470x395x75	4000	220/380	20~40
	PF-NR55-11B	1470x520x75	5500	220/380	40~55
	PF-NR55-11A	1825x397x75	5500	220/380	40~55
	PF-NR60-11A	1820x520x75	6000	220/380	55~60

Installation Instructions – Heat-On FIR Radiant Heating Panels

Before installation, you must read this guide for correct installation and use. If you have any questions in relations to installation or use of the product, please contact us.

(1) Preparation

a) The Heat-On FIR radiant ceiling heating panels are low consumption/wattage heaters designed for either main (central) or subsidiary heating for domestic or commercial heating applications.

b) The heater is fitted with a short length (350mm) of flexible cable for electrical connection.

c) The heaters should be connected as a fixed installation/hard wired by a licensed electrical person, according to the relevant electrical standards.

d) This appliance does not require to be earthed.

e) In case of heater fault, the Head Office must be notified immediately, the appliance will then need to be returned to the manufacturer for repair or replacement.

(2) Installation – Location

a) Heater must not be closer than 300mm to adjacent walls.

b) Heater must not be installed closer than 150mm from light fittings (down lights).

c) Heater does not require any clearance between the back and any ceiling surface.

d) The heaters are designed to heat with a minimum ceiling height of 2400mm and a maximum of 5000mm.

e) When installing multiple panels in one room please ensure that the panels are spaced a minimum distance apart equal to the length of the specified panels.

f) When installed in wet areas, the heaters must be installed so that switches and other controls cannot be touched by persons in the bath or shower.

(3) Installation – Heaters

a) Clean the ceiling and mark out the fixing points as per the recommended installation location.

b) Mount the heating panels by fixing screws into timber or ceiling toggles above plaster to firmly secure the heaters to the ceiling surface. The fixing torque needs to be fairly rigid to prevent any expansion/contraction movements while panels operate.

c) Once panels are securely fixed cover the naked holes with the supplied hole plugs.

Connect the heater wire to the power line of the thermostat.

Connect the thermostat wires as per the thermostat installation instructions.

f) When capacity is over 3500watts/14.6 Amps please use a magnetic contactor for switching.

g) After installation, set the thermostat temperature to over 25 Degrees C, wait for 90 seconds and than touch each heating panel to make sure they have been correctly installed.
