1.Easy mainenance2.Good resistance knives
3.Low price with high quality
4.Energy saving

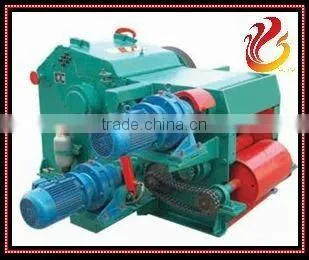

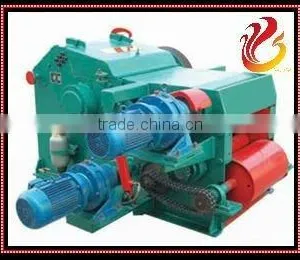

Introduction of Industrial Wood Crusher
This wood crusher is used for crush wood logs into chipps. Can driven by electrice and diesel engine according to users' requirements.
This drum crusher makes high quality pulp or fuel chips from lumber trims, slabs, veneer trims, edgings, blocks, log ends, oversized chips and solid wood. Also tree length wood, brush, stringy bark and limbs can be processed.
It is a ideal equipment for chips production.The machine is made up of high strength steel plate so it is strong enough for working. The knives are connected to the rotor by clamping plate. Connected by hydraulic system, the upper faced roller assembly can float up and down over the material to be cut within certain range according to the thickness of the material.
Features about Industrial Wood Crusher
Wood Crusher (Crusher Timber) have wide scope of application of sawdust processing. It is also called (timber mill, wood crusher, wood shredder cutting, wood cutting machines, mill sawdust, wood shavings mill, wood slicer). The machine is a new kind of product for crushing wood material and biomass material. It is an ideal pre-press equipment for producing wood powder or wood granules, particles. The wood chipper can process wood, bamboo, sticks, tree fork into raw materials such as sawdust, wood chips, wood shavings and so on. The wood chippers are popular by our clients with low investment and low energy consumption, high productivity, good economic returns, such as the use of the advantages of easy maintenance. The machine can be used for the development of edible fungi, particle board, sawdust board, HDF, charcoal production and other raw materials.
Notes about of Industrial Wood Crusher
1. The life of the knife is 2-3 months, it need to polish per day.
2. The size of raw material need to be less 200mm on diameter, and less 1000mm on length.
3. The outlet size of wood chip is less 3mm on thickness, and less 15-25 on length. But the size of the finished wood chip can be adjustable by changing the distance of the knives.
4. There is one request to the wood material, which can not be with wood skin. Before we use this wood chipper, we must firstly peel the skin of the wood; otherwise it will damage the knives heavily and reduce the capacity.
5. The metal material is the most elements to damage the knives.
Parameters of BX2113 Wood Chipper
Model | BX215 | BX216 | BX218 | BX2113 |
Feeding Size (mm) | 160*400 | 230*500 | 300*680 | 450*700 |
Quantity of Fly Cutter (piece) | 2 | 2 | 2 | 2 |
Rotary Speed of Cutter Roller (r/min) | 592 | 590 | 650 | 500 |
Maximum Diameter of Cutting Wood (mm) | 160 | 230 | 300 | 450 |
Size of Cutter Size (mm) | 30 | 30 | 30 | 38 |
Capacity (t) | 5-9 | 7-12 | 9-18 | 12-20 |
Power of Main Machine (kw) | 45 | 55 | 110 | 200-250 |
Power of Feeding Roller (kw) | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
Power of Oil Pump (kw) | 1.5*1 | 1.5*1 | 1.5*1 | 3*1 |
Weight (kg) | 3590 | 5030 | 7000 | 11840 |
Dimension (mm) | 1470*1550*970 | 1800*1900*1210 | 2200*2150*1500 | 3670*2517*2050 |
Conveying Power (kw) | 3 | 3 | 3 | 3 |
