Help Center2,4,6,8 Heads Bottling Line
Related Products
Specifications
1.PLC control,full automatic2.Low maintenance rate
3.Suitable for any viscosity material
4.No leaking
5.ISO9001:2008&CE

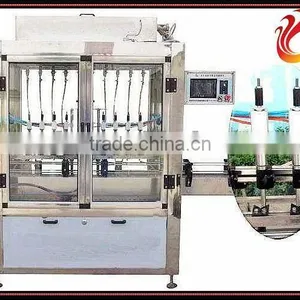

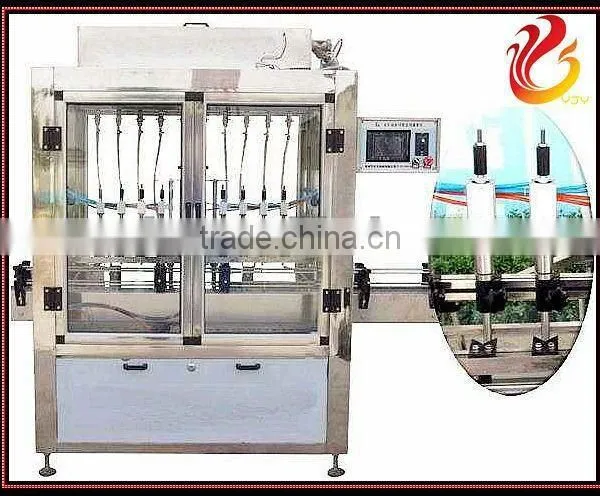

Introduction of liquid filling machine
(1) This bottling machine is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, and wine and so on.
(2) Bottle washing, filling and capping are achieved in one machine.
(3) The contact time is short between material and the outside. And improved the health conditions, production capacity and economic benefits.
(4) CGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
(5) The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products
Technical Parameters
1. Capacity: 0-30L/Bottle (adjustment);
2.Error < 0.5% ;
3. Fillting speed: 200-2000 Bottles (according to the different bottle volume) ;
Size of line:6000*1200*2200 mm;
weight:600kg;
Main motor:< 1kw .
Bottle head:2,4,6,8 pcs .
Bottle diameter:50-200mm;
Height of bottle:150-350mm;
Air pressure: 0.4 – 0.8 MPa.
4. Automatically controling and from slow to quick .
5.Stainless steel structure .
6. with sealer for plastic cover .
7. Automatically cap it.
8. with air pressurer.
9. with whole parts ,including to spare parts for one years .
