Specifications
1.High oil output rate2.Press many oil seeds
3.Stable running&Low maintenance
4.Easy operation&save energy
5ISO9001:2008&CE
Brief introduction of oil press
This series screw oil press is a signal screw oil processing machine, it can be used in oil plant to get edible oil from kinds of oil seed, olive oil press of this model is a screw oil press with capacity ranges from 1t/d to 100t/d, it is a popular model in series of oil seed press. Those screw type screw oil seed presses are advanced olive oil processing machinery, characterized by their high oil output rate with good quality, simple design, easy to use and continuous operation.
Structure of oil press

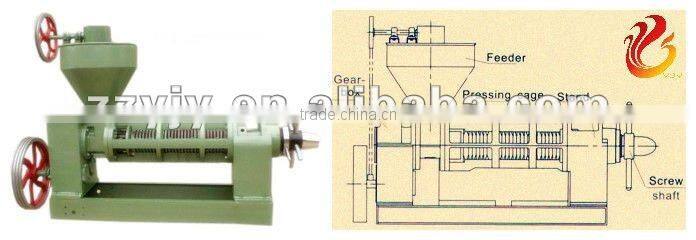

Screw oil press is composed of feeder, gearbox, pressing cage, screw shaft and edible oil extraction machine stand etc.
Use of oil press
It is suitable for all kinds of plant seeds, such as rapeseeds, peanut, soybean, sesame, cottonseed, palm, rice bran, corn embryo etc. especially, has better results to press olive, soybean and cottonseeds.
Working principle of oil press
This kind of screw oil press utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.
Parameters of oil press
|
CAPACITY(kg/h) |
POWER(kw) |
NET WEIGHT(kg) |
PACKING(mm) |

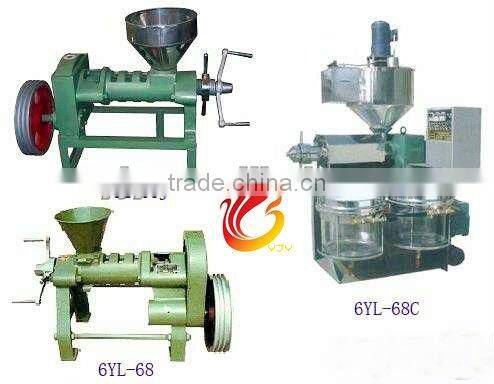

6YL-68 |
40 |
5.5 |
130 |
1050*660*760 |
6YL-80 |
80-125 |
5.5 |
330 |
1320*440*695 |
6YL-95 |
160-200 |
11 |
420 |
1910*610*765 |
6YL-100 |
160-200 |
7.5 |
400 |
1860*550*695 |
6YL-120 |
200-300 |
11 |
700 |
2060*610*770 |
6YL-130 |
375-500 |
18.5 |
700 |
2320*700*780 |
6YL-160 |
550-700 |
18.5 |
920 |
2020*700*780 |
6YL-165 |
620-830 |
22-30 |
1600 |
2120*800*980 |
Note: The above technical parameters are just for your reference.
