1.Can make biomass pellet,animal feed2.Cutting green and dry stalks.straw,grass
3.High capacity with cyclone
4.ISO9001:2008
Applied ranges

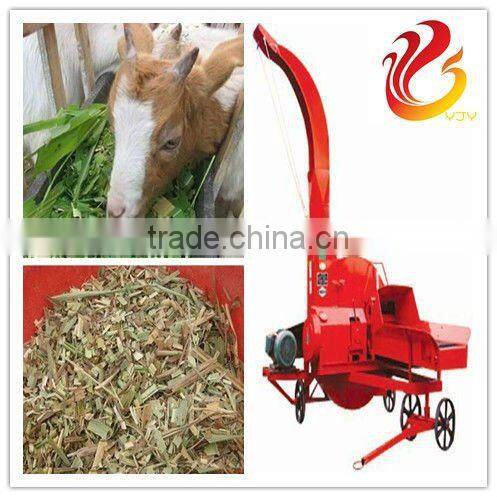

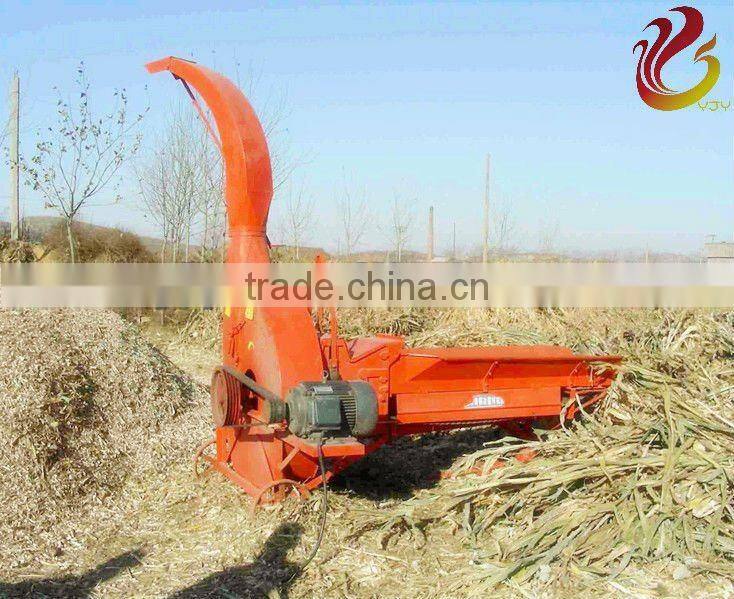

This kind of machine is also called hay cutter, stalk cutting machine, straw pellet machine which is order to cutting off
the various stalks. The throughput and efficiency of this machine is higher than normal hay cutter. It is mainly composed of feeding structure, chopping structure, throwing structure, driving structure, running gear , protective device and brackets.
The raw materials can be cornstalk, straw, Soybean stem, branch, bark, slab, bamboo, fiber grass stem, sugarcane and so on. The finished product can be used for breeding, animal husbandry, paper making, methane tank, briquetting, mechanism charcoal, man-made board and so on.
Key features
1. Made of steel body, small volume, light in weight, easy to move.
2. Designed with safety appliances, prohibit browsing incidents, safety and reliable.
3. Adopted advanced feeding structure with feeding roller, feeding capacity and feeding automatically and smoothly, high productivity.
4. About the power supply, you have some choices . Like motor, diesel engine and farm tractor, which is used to area
lacking electricity particularly.
5. The blade is made of good quality stainless steel, designed by specially processing.
6. Wear-resistant high strongly, high strong bolt, safe and reliable.
7. The frame of the machine is made of thickness steel welding together, beautiful design, durable using.
Parameters
MODEL | OUTPUT (T/H) | Matched | Dimension (mm) | |
|
| motor (KW) | Diesel Engine (HP) |
|
JX9Z-1.5 | 1-1.2 | 3 | ≥4 | 820*460*1160 |
JX9Z-2.5 | 2-2.5 | 4 | ≥8 | 1230*1150*1695 |
JX9Z-4 | 2.5-4 | 5.5 | ≥12 | 1737*1575*2315 |
JX9Z-6 | 5-6.5 | 7.5 | ≥15 | 2147*1600*2756 |
JX9Z-9 | 9 | 15 | ≥28 | 2620*2140*4110 |
JX9Z-12 | 12 | 18.5 | ≥30 | 2630*2230*4120 |
Note: The above technical parameters are just for your reference.
