Specifications
1.ISO9001:20082.Twin-shaft compulsory mixer
3.Easy for operation and maintance&Easy transporation
4Advanced Electric Control

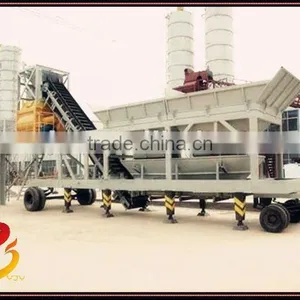

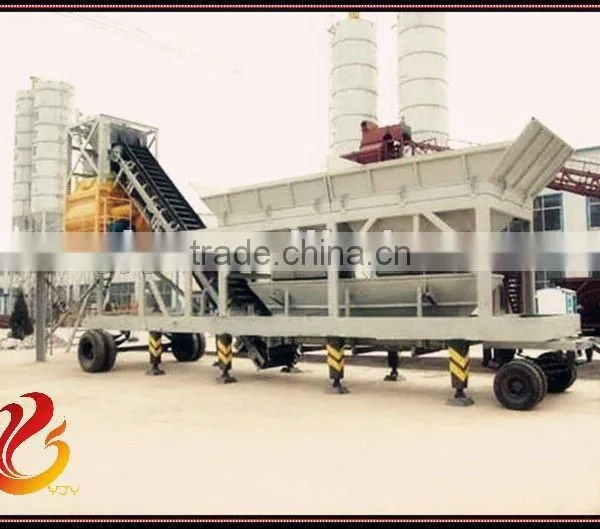

Mobile Concrete batching plant
Mobile concrete batching plant belongs to compulsory and efficiency equipment. It can
produce various kinds of concrete including quaking concrete and hard concrete. With high
production efficiency , it is widely used in large and medium scale building works, roads works
bridges works and concrete products prefabrication plants. It is an ideal equipment to produce
commercial used concrete.
Feature of Mobile Concrete Batching Plant
Mobile concrete batching plant has the following features: compact structure, combine various functions of aggregate dosing,weighing,mixing into a trailer unit; easy operation of human-machine interface, reliable working function, suitable for various bad environment; the whole design meets the requirement of environmental protection, excellent mobility; use once(twice) horizontal shaft mixer, strong continuous working ability, uniform and fast mixing ,high yield and applicable to construction projects of higher concrete demand.
Parameter of Mobile Concrete Batching Plant
YHZS(D) Series of Mobile Concrete Batching Plant Main Technical Specifications | ||||
model | YHZD35 | YHZS50 | YHZS75 | |
Production (m3/h) | 35 | 50 | 75 | |
Mixer | Type | JD750 | JSJ1000 | JSJ1500 |
Power (kW) | 1×30 | 2×18.5 | 2×30 | |
Output (m3) | 0.5 | 1 | 1.5 | |
Grain Size (mm) | ≤60 | ≤60 | ≤80 | |
Batcher | Hopper Capacity(m3) | 5 | 6 | 6 |
Hopper Quantity | 4 | 4 | 4 | |
Conveyor Capacity (t/h) | 200 | 400 | 400 | |
Weighing Scope Accuracy | Aggregate(kg) | 1000±2% | 2000±2% | 3000±2% |
Cement (kg) | 300±1% | 600±1% | 800±1% | |
Water (kg) | 200±1% | 300±1% | 400±1% | |
Admixture (kg) | 20±1% | 20±1% | 20±1% | |
Trailed speed(km/h) | 15 | 15 | 15 | |
Wheel distance(outside)(mm) | 2800 | 3400 | 3400 | |
Turning radius(mm) | 11 | 15 | 15 | |
Total weight(kg) | 20000 | 25000 | 32000 | |
Power(kW) | 60 | 65 | 90 | |
Discharge Height (m) | 2.8 | 2.8 | 2.8 | |
Note: The above technical parameters are just for your reference.
