Specifications
Dry Gas Filters
Dry gas filter housing is used to remove catalyst particle in upstream and downstream
1.Description

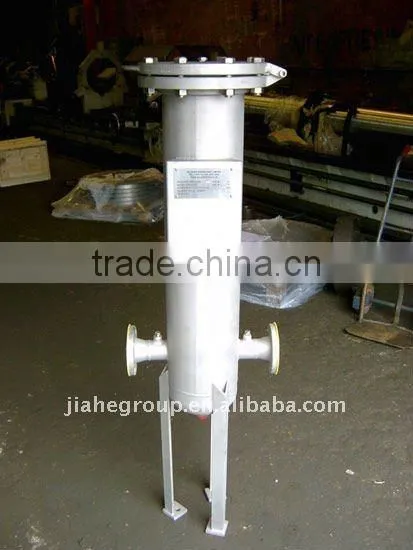

Dry gas filter housing is high precision filter equipment which is composed of filter element, shell, fixture, etc. This filter is applied to filter small solid particle from gas. When gas goes into equipment from inlet, element support pipe will scatter air stream evenly. Then it can low the flow rate and filter large impurity particle down to filter bottom. For the solid particle and impurity deposited in filter bottom or element surface, it can be removed by change filter element or clean filter element regularly.
Quick open blind plate& Blind flange are installed at one side of filter, which can save a lot time to change filter element. It can also reduce cost for filter using quick open blind plate.
2.Technology Parameter
Material:Gb150 &ASME VIII-1
Vessel Material: Carbon Steel, Stainless Steel
Filter Element Material: Glass fiber, PP, S S sintered fiber felt, sintered mesh, etc
Element Structure Strength: >0.5Mpa
Vessel Diameter:<2000mm
Filter Precision: 0.3,1,5,10,20,50micron
Filter Efficiency: solid—99.98%
Installation Way: Horizontal /Vertical
Natural Gas Vertical Filter-Separators
for Gas Transmission Service
(ASME
Code, 270 PSI, 10" Inlet/Outlet,
with Differential Pressure Gauges)
