Help CenterSelf-climbing Hydraulic Cutting Machine
Related Products
-
Orifice Flow Meter for Gas Metering StationUS$ 10,000 - 20,000MOQ: 1 Set -
Horizontal Self-Cleaning Automatic StrainerUS$ 100 - 5,000MOQ: 1 Set
-
Diamond Core Drilling RigUS$ 10,000 - 100,000MOQ: 1 Set
-
Domestic Displacement Diaphragm Gas MeterUS$ 13 - 500MOQ: 1000 Sets
-
Skid-mounted Natural Gas Regulating and Metering StationUS$ 1 - 1,111MOQ: 1 Piece
Specifications

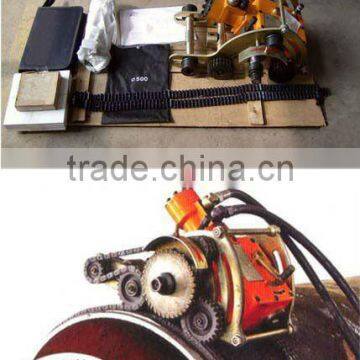

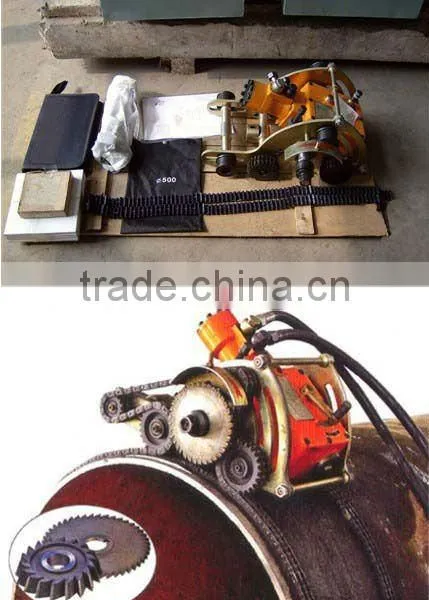

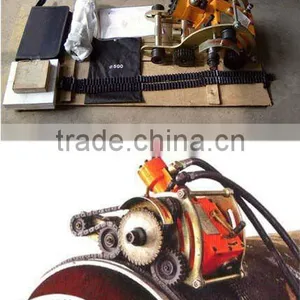

Hydraulic driving, explosion-proof, can match with beveled angle blade to have beveled fracture face, no need power supply.This machine is fixed on pipe by double chains. The cutter climb around pipe and cutting pipe by rotating blade, with running handle on then cutting and climbing automatically.
Feature: hydraulic driving, explosion-proof, can match with beveled angle blade to have beveled fracture face,
no need power supply. Incision error: ±0.3mm
Applicable material: lower grade of #65 steel(ZYQ 200-1200)
lower grade of #70 steel(ZYQ800-2600)
Applicable pipe thickness: Nodular iron pipe≤25mm(ZYQ 200-1200)
Steel pipe ≤10mm(ZYQ800-2600)
Nodular iron pipe≤30mm(ZYQ 200-1200)
Steel pipe ≤22mm(ZYQ800-2600)
|
Description
Modle |
ZYQ 200-1200 |
ZYQ800-2600 |
Remark |
Specification(mm) |
Φ200-1200 |
Φ800-2600 |
|
Cutting frequency |
|
|
|
Driving |
hydraulic |
hydraulic |
|
Cutter feeding |
Manual |
Manual |
|
Rated pressure(Mpa) |
12 |
16 |
|
Working pressure(Mpa) |
4-6 |
6-10 |
|
Hydraulic flow |
30-45L/min. |
30-45L/min. |
|
Blade speed |
105-150rpm |
60-80rpm |
|
Cutter velocity |
65-130rpm |
60-80rpm |
Self-climbing |
Dimension(mm) |
560×380×290 |
720×400×320 |
|
Weight(kg) |
Cutter: 36 Chain: 20 |
Cutter: 67 Chain: 30 |
|
