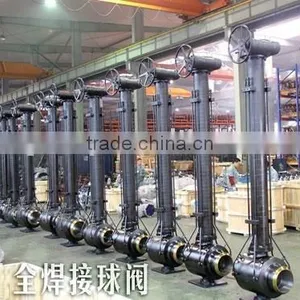

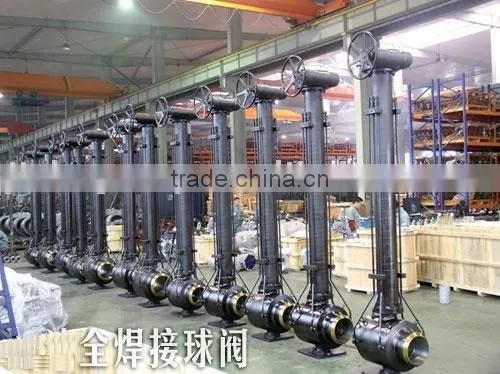

Help CenterFully Welded Ball Valve With Extension Stem
Related Products
-
Pipeline Ball Valve With Gas Over Oil ActuatorUS$ 5 - 50,000MOQ: 1 Set -
Different Type Butterfly Valve With Good Price and Good QualityUS$ 100 - 200,000MOQ: 1 Set
-
Tilting Check Valve With Counter WeightUS$ 100 - 5,000MOQ: 10 Sets
-
Different Type Butterfly ValveUS$ 100 - 10,000MOQ: 1 Set
-
5-good Wafer Lug Butterfly ValveUS$ 100 - 10,000MOQ: 1 Set
Specifications
fully welded ball valve with extension steam, full bore,trunnion mounted, double block and bleed, anti-blow out stem, anti-statiSTANDARDS
- Design and Manufacture: API 6D
- F-F Length: ASME B16.10
- BW Ends Specification: ASME B16.25
SIZES AND PRESSURE RATINGS
- NPS 2" to 48"
- CLASS 150LB to 900LB
MATERIALS (Carbon Steel)
- Body & Bonnet: A105/A216 WCB
- Stem: A182 F6a
- Ball: A105+ENP/A216 WCB+ENP
- Seat: A105+ENP
- Sealings & Gaskets: VITON, Graphite (+SS304) , Nylon, PEEK, PCTFE
MATERIALS (Stainless Steel)
- Body & Bonnet: A182 F316/A351 CF8M
- Stem: A182 F316
- Ball: A182 F316/A351 CF8M
- Seat: A182 F316
- Sealings & Gaskets: VITON, Graphite (+SS304) , Nylon, PEEK, PCTFE
OTHERS
- Other material combinations are available on request, e. g. used for low temperature
- Anti-static design is applied.
- Bleed valve in A105+ENP/A182 F316 is applied for safety consideration.
