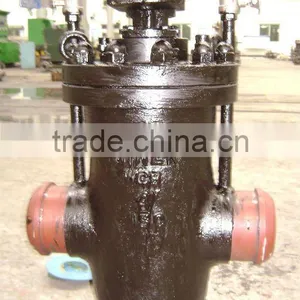

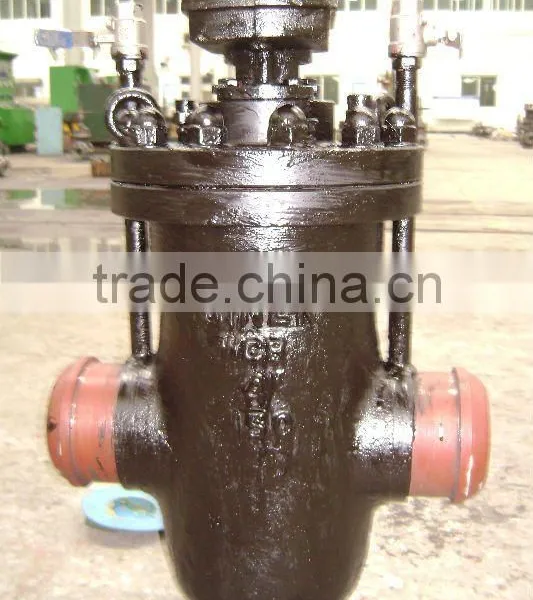

Through Conduit Gate Valve for Underground Application

Shandong Jiahe Machinery Co., Ltd.

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Application:

Other, underground use

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Application Other, underground use

Specifications

through conduit gate valves, is used for pipeline, which has Full thru-conduit port for pigging, wiping and scraping.

♣ Performance Specification

Suitable medium: Purified natural gas, nature gas with suiphur(H₂S+CO₂≤8%), coal gas, crude oil, finished oil, clean oil, water, etc.

Suitable temperature: -101°C~121°C(For super low temperature valve)

-46°C~121°C(For low temperature valve)

-29°C~121°C(For normal temperature valve)

-29°C~350°C(For middle temperature valve)

Pressure rating:PN1.6~42.0MPa (class150 ~ 2500)

Size: DN25~800 (NPS 1 ~ 32)

Main standard:API, ANSI, GB, JB, DIN, etc.

♣ Performance characters of through conduit gate valves

Designed to meet API 6D specification. Valves are served in pipeline, oilfield, station, airport, refinery and chemical industry.
Full thru-conduit port for pigging, wiping and scraping. Seats and gate surface self cleaning and self lubricating
The valves could be suitable in the condition of high content of sulfide(the content of H2S +CO2 is above 500mg/m3)
Single gate and double floating seats in structure. Double block and bleed option to facilitate complete flushing draining and venting of the valve body cavity.
The sealing face built up Stellite, and both gate and seats are applied ENP process. Equipped aviation rubber (NBR or Viton) on the seats and stem, and filled sealant compound. There are triplicate seal managements,
The valves can be installed in any direction.
Tested strictly, no leakage.
Equipped bearings when Equipped handwheel as operating manner. They are more convenient and less torque for opening and closing.
Sealing faces are protected from the medium flushing when through conduit gate valves being in the state of long-on and long-off, so their service life are long.
Optional electric actuator or other actuators for valve open-close operation.
Designed to allow in-line valve maintenance. Parts are replaceable without removing the valve from the line.
Packing repairable under full line pressure
