Industrial U.S.A Butterfly Valve

Name: Industrial U.S.A Butterfly Valve
Brand: Jiahe
SKU: 141412052
Availability: InStock

US$ 40 - 1,000 MOQ: 150 Pieces

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Butterfly

Pressure:

Low Pressure

Shandong Jiahe Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Butterfly

Pressure Low Pressure

Power Manual

Material Casting

Temperature of Media Low Temperature

Media Water

Port Size 8

Place of Origin Shandong, China

Model Number Wafer_ BV

Brand Name Jiahe

Specifications

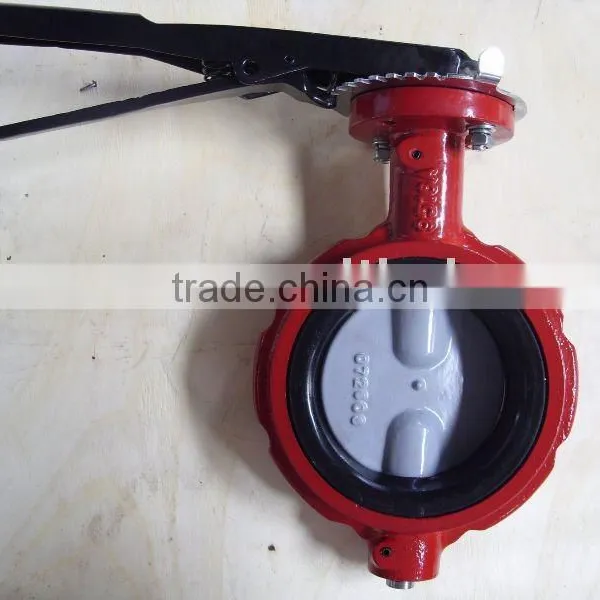

Industrial U.S.A Butterfly Valve

Wafer Butterfly Valve

·Valve Standard:Comply with EN593/BS5155/MSS SP-67.

·Working Pressure and Temperature

Size 50 to 600,working pressure PN 16/Class 125.

Size 50 to 300,working pressure PN 20/Class 150.

Temperature from -10°C to 120°C for EPDM liner.

Temperature from -10°C to 82°C for NBR liner.

Temperature from -10°C to 150°C for Viton liner.

·Top Flange standard: Comply with ISO5211/1.

·Flange Type:EN1092-2 PN10/PN16/PN25,ANSI B16.1 Class125, ANSI B16.2 Class250,BS10 Table D/E,JIS 10K/16K.

·Operator:Handle or gear operator.

·Materials Specification

Part Name	Material	EN Spec.	ASTM Spec.
Body	Cast Iron	EN-JL1040	A126 Class B
Shaft	Stainless Steel	BS970 420S37	AISI 420
Disc	Stainless Steel	BS970 304S15	A351 CF8
	Bronze	EN1982 CC491K	B62 C83600
	DI Chrome Plated or FBE Coated	EN-JS1050	A536 65-45-12
Bushing	PTFE	Commercial	Commercial
Liner	EPDM/NBR/VITON	Commercial	Commercial
O-Ring	EPDM/NBR/VITON	Commercial	Commercial
