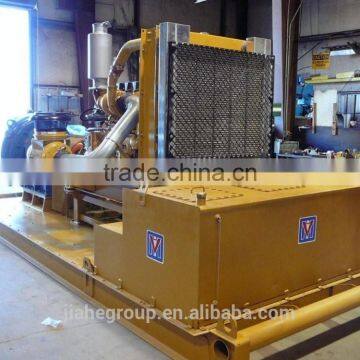

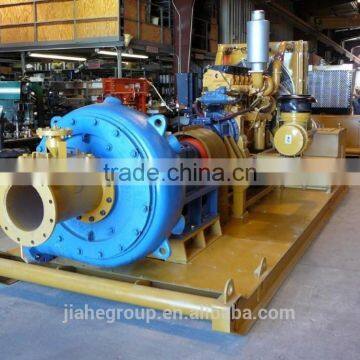

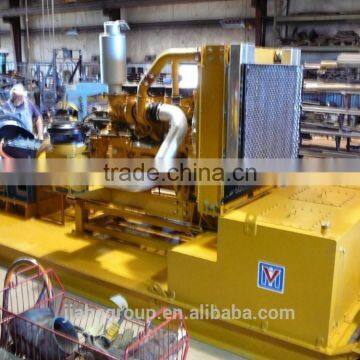

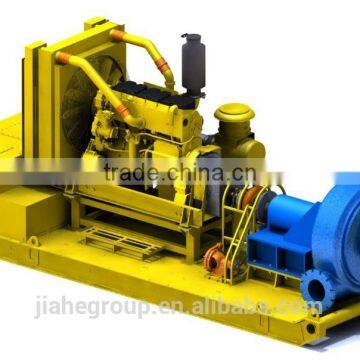

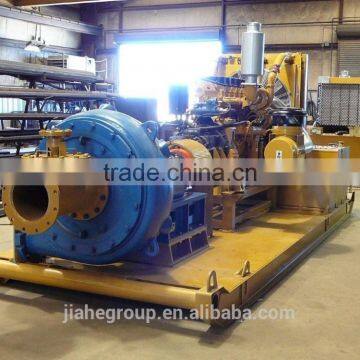

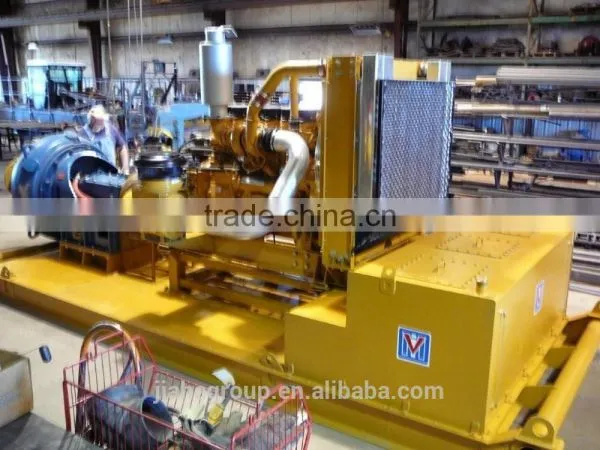

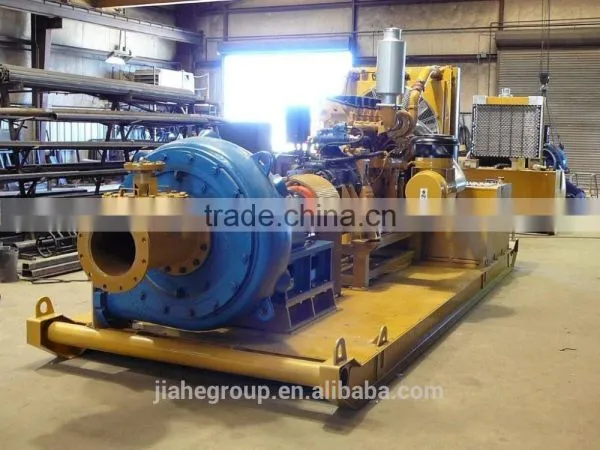

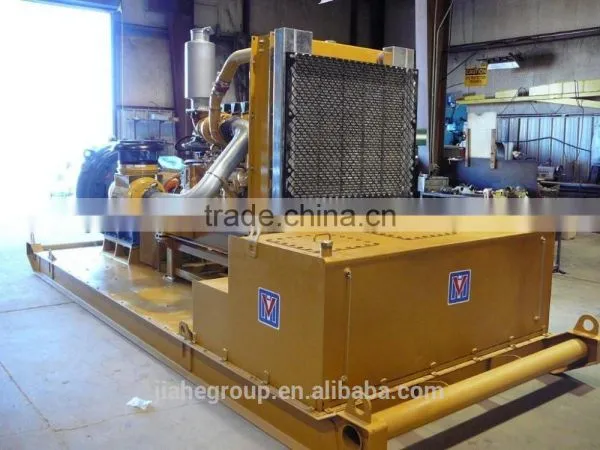

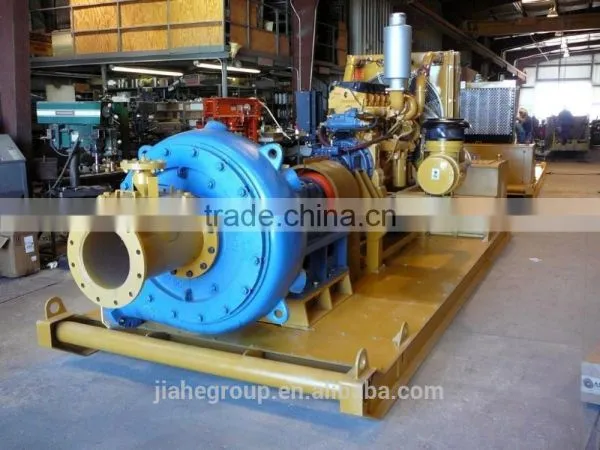

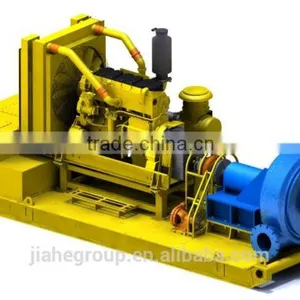

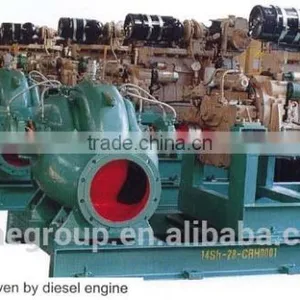

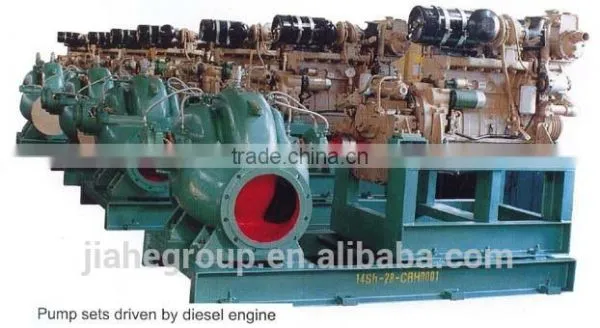

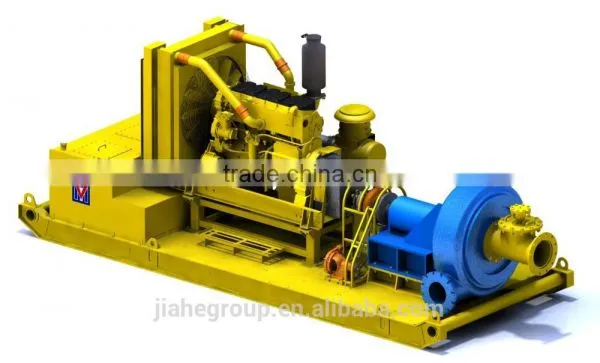

Help CenterDiesel Engine Driven Big Size Water Pump
Related Products
SH Series Double Suction Pump
* SH series pump is Single-stage, Double-suction, horizontal split-casing centrifugal pump which is used for clear water, also can be used for muddy water through changing the material and design of impeller, seal ring, sleeve and shaft, etc.
* Pump model: 24SH-19AZ
24 – means pump inlet diameter is 24”
SH—means Single stage, double suction type pump
19 – means the specific speed of the pump is 19x10
AZ – means cutting impeller
Technical Data Sheet
NO. |
PUMP MODEL |
CAPACITY (Q) (M3/hr) |
TOTAL HEAD (H) |
SPEED |
Suction head Hs |
EFF. |
SHAFT POWER |
(M) |
(RPM) |
(M) |
(%) |
(KW) |
|||
1 |
6SH-6 |
126, 162, 198 |
84, 78, 70 |
2900 |
5 |
72, 75, 74 |
40, 45.8, 51 |
2 |
6SH-6A |
112, 144, 180 |
67, 62, 55 |
2900 |
5 |
68, 72, 70 |
30, 33.8, 38.5 |
3 |
6SH-9 |
130, 170, 220 |
52, 47.6, 35 |
2900 |
5 |
74, 80, 67 |
25.3, 27.6, 31.3 |
4 |
6SH-9A |
120, 144, 180 |
43.8, 40, 35 |
2900 |
5 |
72, 75, 70 |
18.5, 20.9, 24.5 |
size to 48inch, detailed specification will be previded as per request
