BS-600TM rock stone incise cutting machinery concrete dismantle

Specifications

BS-600TM rock stone incise cutting machinery:
1:portable and portable
2:max. cutting depth:73cm
3:remote control

newly developed

BS-600TM/BS-500TM

rock stone incise cutting machinery

Remote control

introduction

BS-500TM/600TM wall saw machine is widely used inmineral mining(cave mining) , civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.

technical data:

model	BS-500TM	BS-600TM
rated input	30HP(22KW)	34HP(25KW)
voltage	380V/400V,3-phase,50HZ	380V/400V,3-phase,50HZ
current	43A	48A
weight hydraulic power unit incl.oil	170kg	175kg
dimension of power unit	650*550*1000mm	650*550*1000mm
max.operating pressure	200bar	240bar
max starter blade	800mm	800mm
blade diameter range	800-1400mm	800-1600mm
max. cutting depth	620mm	730mm
weight of saw head	34kg	32kg
control type	hydraulic auto	hydraulic auto
blade rotational speed	900rpm	400/860/1200rpm

as to wall concrete cutting machine , we have two model :500TM and 600TM for ur choice.

whichever model is suitable for u, pls contact us freely, and we will offer a very competitive price for you.

part pictures:

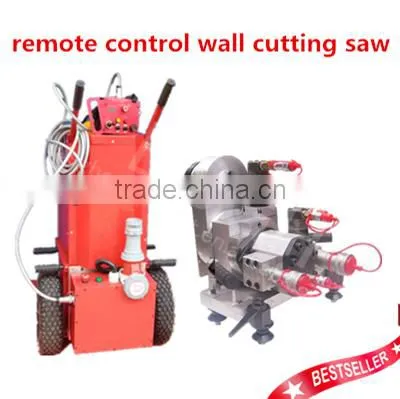

power unit : our newly developed remote control power unit, max control distance is 10M. saw head: diamond saw blade

project case for reference:

we also have the video of our wire saw machinery, welcome customers contact us for reference

   one year worranty for our all machines

payment terms:

1) 100% T/T in advance for amout less than

USD10000.00

2) 30% payment paid by T/T in advance and 70%

payment paid by T/T befor delivery for amout more

than USD10000.00
