Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper

Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper thumbnail-1
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper thumbnail-2
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper thumbnail-3
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper thumbnail-4
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper thumbnail-5
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper thumbnail-6
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper photo-1
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper photo-2
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper photo-3
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper photo-4
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper photo-5
Only $349 China Factory Direct Recycling Wire Automatic Stripping Machine for Recycling Copper photo-6
US$ 299 - 399 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BSGH
Model Number:
BS-KA
Contact Supplier Request Quote Chat Now
Xi'an Grand Harvest Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BSGH
Model Number BS-KA
Usage Stripping





Product Description

 1.Introduction:

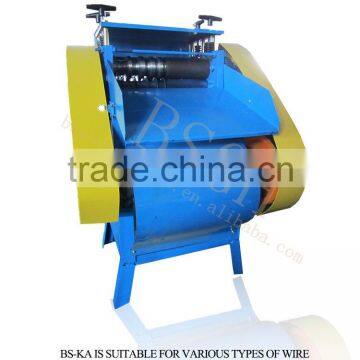

BS-KA is suitable for copper wire, single core wire ,muticore wire,aluminium wire,steel cable wire. Wire stripping range:1-35mm.This machine  is practicable and easy to handle.



NameAutomatic wire stripping machine BS-KA
ModelBS-KA
Range1~35mm
Power2.2 KW
Voltage 220V /380V (Optional)
Daily Output400~1000KG
Weight80KG
Colourblue ,black
Mea600*580*840mm

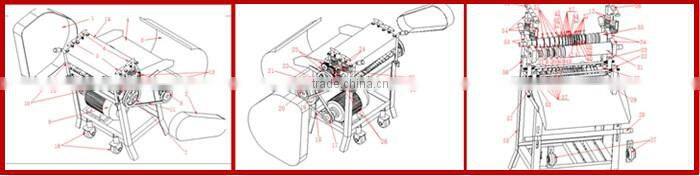

2. Design Chart of Used Wire Stripping BS-KA







Advantages



3. Advantages Of Scrap Wire Drawing Machine BS-KA



1. Multi-purpose Wire & Cable Stripper driven by single or three phase motor;

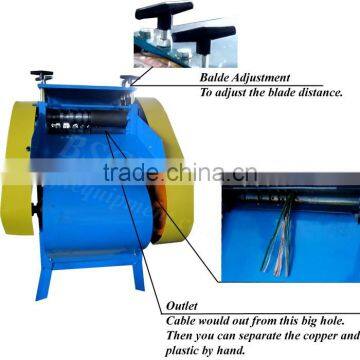

2. Four adjusting handles to adjust the distance between knives or rollers;


3. Simple knife change;


4. Heavy-duty gearbox and electric motor with start/stop button and safety shut off.





User Manual



4. User Manual Of  Wire Recycling Stripper Machine BS-KA

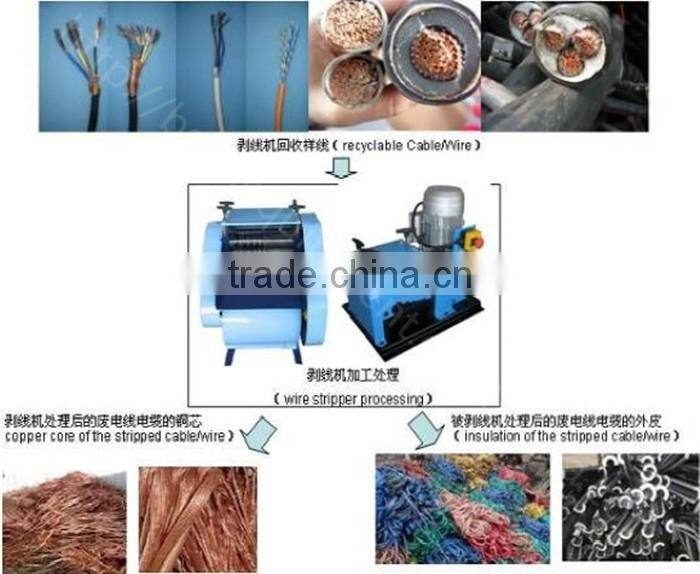

Only $349 China factory direct recycling wire automatic stripping machine for recycling copper

OPERATION MANUAL:
1.Push the Switch up to turn the Motor ON,Check whether the machine work well.Make sure There are no people on the output side of the machine.Comparing the cables/wires’diameters with the feeding holes on the machine,feeding the cables/wires one piece at one time.Before feeding the cables/wires,please cut off the head of the cables/wires,to avoid gaps caused to the blades.
2.On the output side,if the cuts on the cables/wires are too deep,please check below points:
  1) Please adjust the handles on the input side,screw down or loose them. (M12 handles)
  2) Check whether the cables/wires on the right position as you feeding them.
  3) Make sure the blades are sharp,if not,polish them with the oil stone
3.On the output side,if see the plastic(PVC)has been stripped,but the copper wires can not been  disgorged,please check below 4 points:
  1) Polish The axis of the upside with the oil stone
  2) Check whether the springs are loose,if yes, screw down to make them tighten
  3) The diameter of the cables/wires are too small,please adjust the space between the two axises  to 0.3-0.6mm.

  4) If the cables/wires you want to strip are hot,also can not get the copper wires stripped out.
4.If the cables/wires were Blocked in the axises,please check below points:
    1) Check if the V-belts are loose.
    2) If the springs on the press wheels are too tight,loose them.
    3) There are too much oil on the cables/wires, please wipe it(make sure the machine is turned  off when you wipe the axises)
5.If see the blades tilted :
    1) Check whether the center adjuster was loosed.
    2) centering adjustment and adjust thescrews of two sides of it.



  ♥ Video: https://youtu.be/AEwUXbCxSx0





5. Safety Requirments



Make sure the cables/wires’diameter are similar with the feeding holes ,large cables/wires in large feeding holes, small cables/wires in small feeding holes, flat cables/wires in flat feeding holes.


Make sure the axis turn to the right side, never put hand into the safety guards when the machine is running. Keep child far away from the machine.



A. DO NOT wear loose clothing or gloves as death or dismemberment can occur. (with gloves on when                 feeding wire/cable, gloves can snag on scrap wire and bring hand into machine)
B. Only to be operated by qualified personal whom have read instructions
C. DO NOT operate machine outside of machine specifications
D. DO NOT touch the running machine or moving parts while machine is running.
E. DO NOT remove machine guards. Only to be removed for maintenance and oiling by qualified personal and       quickly put back on the machine after maintenance is complete.
F. DO NOT allow children or untrained personal near machine.
G. DO NOT put cable/wire longer than 1 meter into machine.
H. DO NOT use this machine in the rain, if peeling wet cable/wire, keep the knife dry, oil the machine often,           test the knifepoint and machine for oxidation.
I. Turn off the machine after use





6. Maintenance



A.Often oil the sprockets and chains and use grease between the gears; the life of chain and gear     will be prolonged if this is done regularly, also it will reduce the noise of the machine.
B.Often inspect whether any screws are loose or missing; Fix the problem at once.
C.If blade damage should occur, have a qualified professional fix the problem in order to insure  the longevity and usual running of the machine





Packaging & Shipping

7.Standard export cartons:



Only $349 China factory direct recycling wire automatic stripping machine for recycling copper



Ship by express,air,via sea according to order quantity.









Only $349 China factory direct recycling wire automatic stripping machine for recycling copper



Company Information

 XI'AN Grand Harvest Equipment Co., Ltd. is speislized in producing various of recycling equipments, including cable recycling machines, such as cable stripping machines and electric wire cable granulator machines, and other recycling machinery, like radiator recycling, washer dynamo recycling or other compressors.

         Our company aims at provide the most superior service for clients, serve the higest quality products to customers. we have many years' experience in recycling machine field, and we always insist on the realize of environmental to develop our business. we have been more than four years experience abou foreign trade in Alibaba international website. At the same time, we have accumulated many superior quality customers from all over the world and we will always hold on in this way to serve customers and  reback society.

Only $349 China factory direct recycling wire automatic stripping machine for recycling copper

Production Equipment

Only $349 China factory direct recycling wire automatic stripping machine for recycling copper

Trade Shows

Only $349 China factory direct recycling wire automatic stripping machine for recycling copper

Our Services

Only $349 China factory direct recycling wire automatic stripping machine for recycling copper



Presales service:



Introducing in detail features and application of the products to customer



Selecting economical and practical machine & equipment for customer



Providing operation data of the related machine & equipment



Providing means of trial performance for customer



Sales service:



Recommending engineering conditions required for installation of the machine & equipment



Communicating in time the manufacturing progress of the machine with user



Providing assistance in technical conditions, screw combination and barrel disposition needed for product



After-sales service:



Providing on-the-spot technical assistance in installation, commission and training



Filling in detail customer’s information



Providing long-term maintenance service and spare parts



Giving technical support to customer for developing new product



Providing free maintenance for a year
