BS-500TM concrete blade wall construction saw blade
About our machine:
BS-500TM/600TM wall saw machine is widely used in mineral mining(cave mining) , civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
Advantage:
1) Powerful, it can split the stone or concrete easily;
2) High efficiency, it can split the stone in 5-10 seconds.;
3) Long-life, the wedges stands wear and tear;
4) Easy to operate and maintain. wall saw cutting tools
Technical details:
model |
BS-500TM | BS-600TM |
| rated input | 30HP(22KW) | 34HP(25KW) |
| voltage | 380V/400V,3-phase,50HZ | 380V/400V,3-phase,50HZ |
| current | 43A | 48A |
|
weight hydraulic power unit incl.oil |
170kg | 175kg |
| dimension of power unit | 650*550*1000mm | 650*550*1000mm |
| max.operating pressure | 200bar | 240bar |
| max starter blade | 800mm | 800mm |
| blade diameter range | 800-1400mm | 800-1600mm |
| max. cutting depth | 620mm | 730mm |
| weight of saw head | 34kg | 32kg |
| control type | hydraulic auto | hydraulic auto |
| blade rotational speed | 900rpm | 400/860/1200rpm |
As to wall concrete cutting machine , we have two model :500TM and 600TM for ur choice.
whichever model is suitable for u, pls contact us freely, and we will offer a very competitive price for you.
Pictures for reference:
|

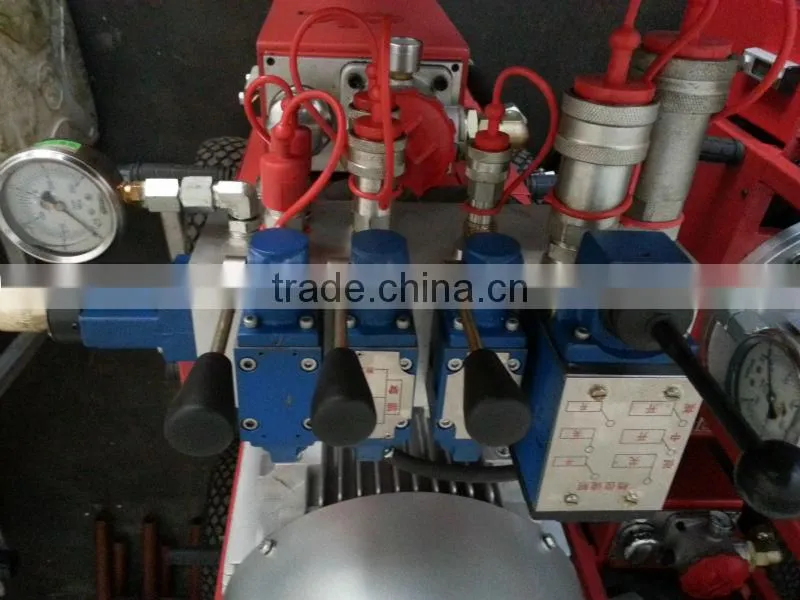

Power unit:

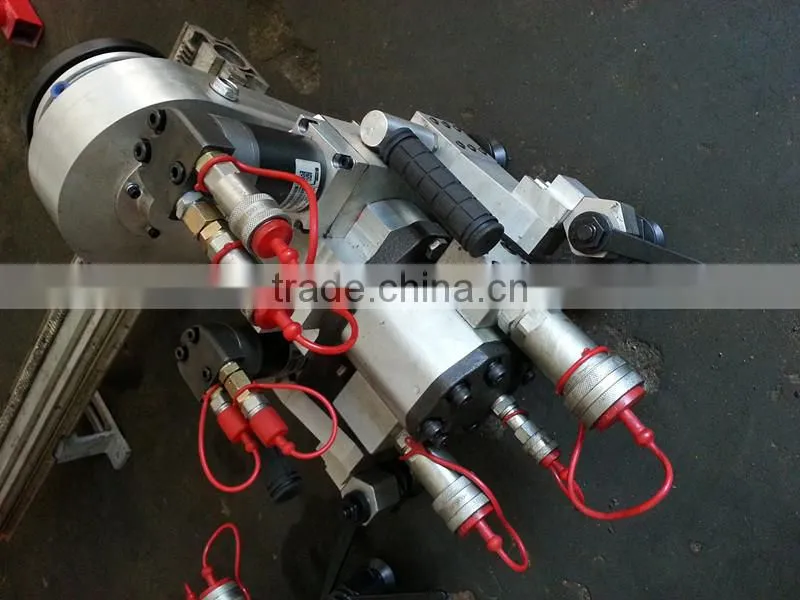

Blade: Saw head:
Accessaries:
|

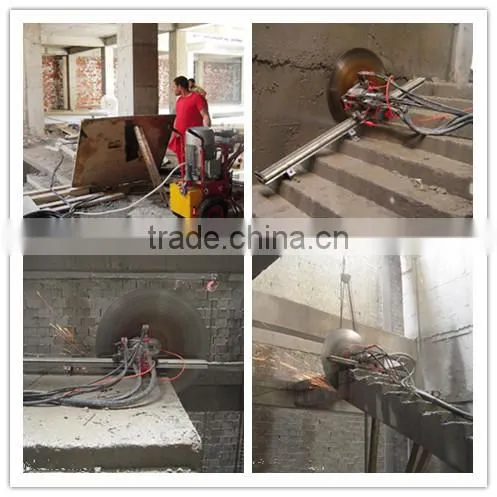

Project case:
Q&A
1. Why we choose your products?
1) One year guarantee for whole machine.
2)24 hours technical support by e-mail. Calling service.
3) Immediate answer about any question
4) BSGH products is widely used in almost all the materials you can think of
2. What are your payments terms?
1) 100% T/T in advance for amount less than USD10000.00
2) 30% payment paid by T/T in advance and 70% payment paid by T/T before delivery for amount more than USD10000.00
3. How about the nearest port?
Shanghai, Ningbo port, etc
4. How can we know your quality?
BSGH has own QC, there will be strict inspection and testing for every order before shipping out
Note:
All the listed price is only for references , for latest price please contact us directly.
If you have needs and are interested with our machine, pls contact with me freely about the more details and video and I am of service all the time!
