Home > Products > cable granulator recycling machine > High quality automatic waste scrap copper wires cables recycling machine
High quality automatic waste scrap copper wires cables recycling machine
- 5 Set / Sets per Month
- shanghai/ningbo
- T/T L/C
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | BSGH | Model Number: | mini BS-400 |
Condition: | New | After-sales Service Provided: | No overseas service provided |
Product Description
Mini BS-400 copper cable granulator machine separating machine
1.Product introduce:
Wire Granulator Machine BS-400 is as an equipment of recycling copper from a large number of scrap.Our device mainly recycles vehicle line,communication cable and micellaneous line.
2.Technical Parameter:
Products name | Wire granulator machine |
Model | BS-mini 400 |
Processing range | 1-20mm |
Capacity | 100kg/h |
Power | 12kw |
Separation rate | 99% |
Meas. | 1500X1500X1800mm |
Weight | 750kg |
Warranty | 12 month |
3. How to use:
A:Youtu video
https://youtu.be/i7Gk7D3r4dA
https://youtu.be/xlR6xV1w_ZA

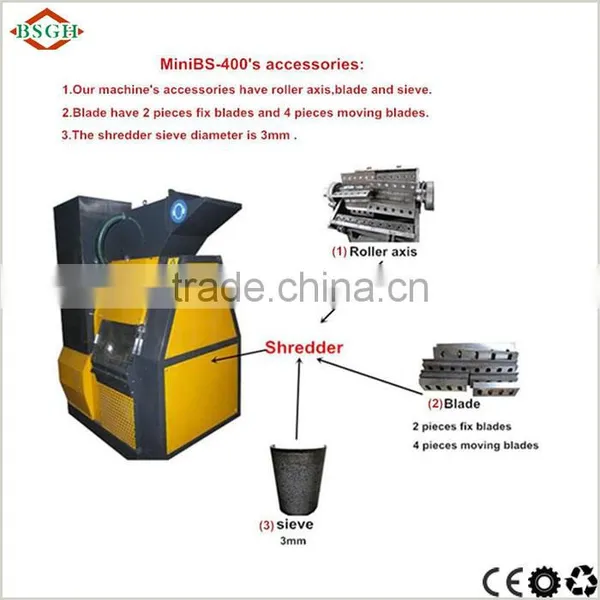

B:Image show:
C.Working Flow Chart
Copper wire recycling machine is mainly used to make the double recycling use of metal and plastics from scrap wires. The copper wire recyling machine through crude crushing to extract the iron materials, then through fine crushing to separate the metal and plastic mixture. Since the plastic and metal granules are uniform, but the weight has big difference, they are easy to be separated by the gravity separator. But the plastics after separated by the gravity separator is not completely clean, may have about 2-5% small copper wre or powder. Then use the electrostatic separator can extract the rest and small copper wire or powder out to get pure plastic and copper metal. Thus to increase the recycle use value of the plastics and metals.
Mainly used for all kinds of scrap wires, copper wire, aluminium wire, such as automobile electric line, motorcycle electric line, storage battery electric line,waste household appliance disassembly electric line, electromechanical equipment,computer cable, telephone wire, cable TV line,communication cable and other scrap wires which are difficult to recycle, circuit board, copper-clad plate, etc.
D.OPERATION MANUAL:
For the first time using the device, please complete the following measures:
1) Before starting,the cleaning machine should be expected to
check the installation screen is normal, so no-load start.
2) Check the wire line is really well.
3) Turn on the butten.
4) Open the up suction fan button to observe the motor rotation right or wrong,if wrong,pls reset power supply wiring.
5) After you have finished all the steps, you can start the machine.
1)Outter Package: plywood case standard export carton.
2)Ship by express,air,via sea according to order quantity.
XI'AN Grand Harvest Equipment Co., Ltd. is speislized in producing various of recycling equipments, including cable recycling machines, such as cable stripping machines and electric wire cable granulator machines, and other recycling machinery, like radiator recycling, washer dynamo recycling or other compressors. Our company aims at provide the most superior service for clients, serve the higest quality products to customers. we have many years' experience in recycling machine field, and we always insist on the realize of environmental to develop our business. we have been more than four years experience abou foreign trade in Alibaba international website. At the same time, we have accumulated many superior quality customers from all over the world and we will always hold on in this way to serve customers and reback society. |
