BS-KOB electrical wire recycling machine suitable for copper wire, single core wire ,multi core wire,aluminum wire.
Wire stripping range:1-45mm.
This machineis practicable and easy to handle.
♠Specification:
| Model | BS-KOB |
| Range | 1~45MM |
| Weight | 110Kg |
| Mea | 760*640*920 |
| Power | 2.2KW |
| Output | 600~1200KG |
♠BS-KOB use introduction:
1.Push the Switch up to turn the Motor ON, Check whether the machine work well. Make sure there are no people on the output side of the machine. Comparing the cables/wires’ diameters with the feeding holes on the machine, feeding the cables/wires one piece at one time.
2.Before feeding the cables/wires, please cut off the head of the cables/wires, to avoid gaps caused to the blades.
3.On the output side, if the cuts on the cables/wires are too deep, please check below points:
A.Please adjust the handles on the input side, screw down or loose them. (M12 handles)
B.Check whether the cables/wires on the right position as you feeding them.
C.Make sure the blades are sharp, if not, polish them with the oil stone.
4.On the output side, if see the plastic (PVC) has been stripped, but the copper wires can not been disgorged, please check below 4 points:
D.Polish the axis of the upper side shaft with the oil stone properly Check whether the springs are loose, if yes, screw down to make them tighten
E.The diameter of the cables/wires are too small, please adjust the space between the two axis to 0.3-0.6mm.
F.If the cables/wires you want to strip are hot, also can not get the copper wires stripped out.

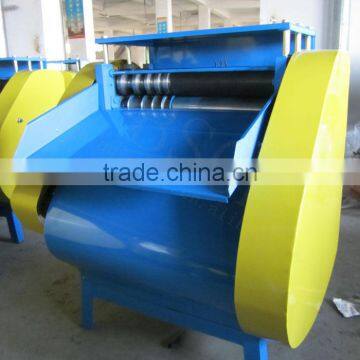

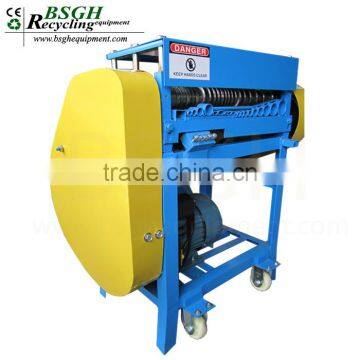

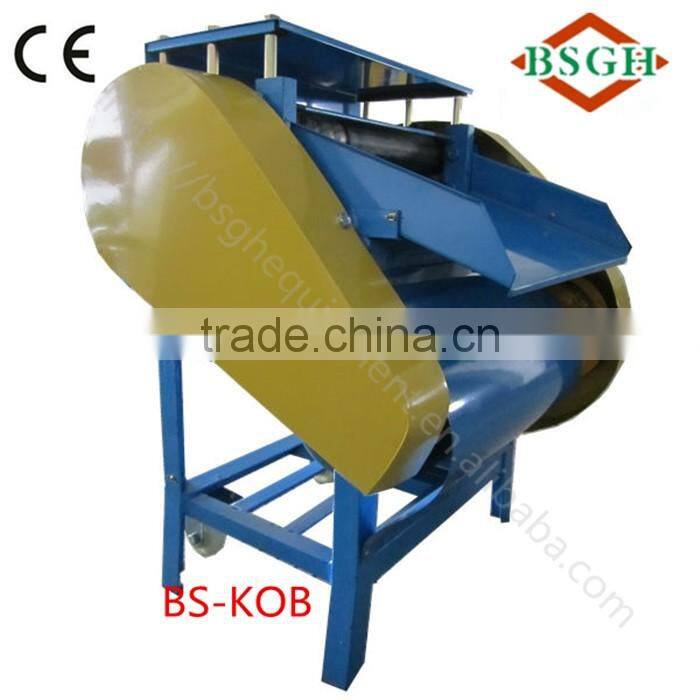

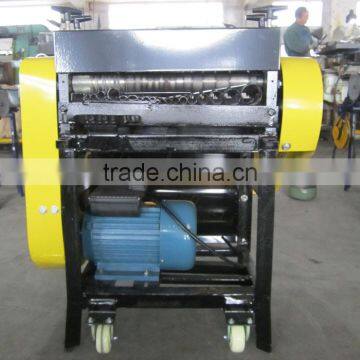

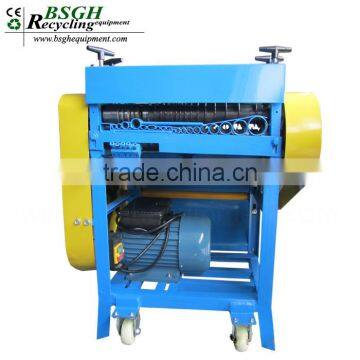

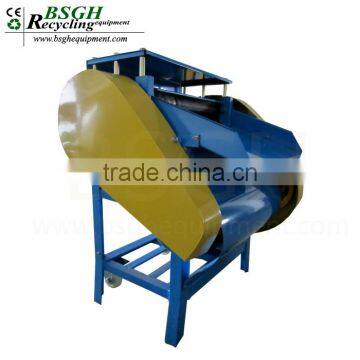

♠Products photos:

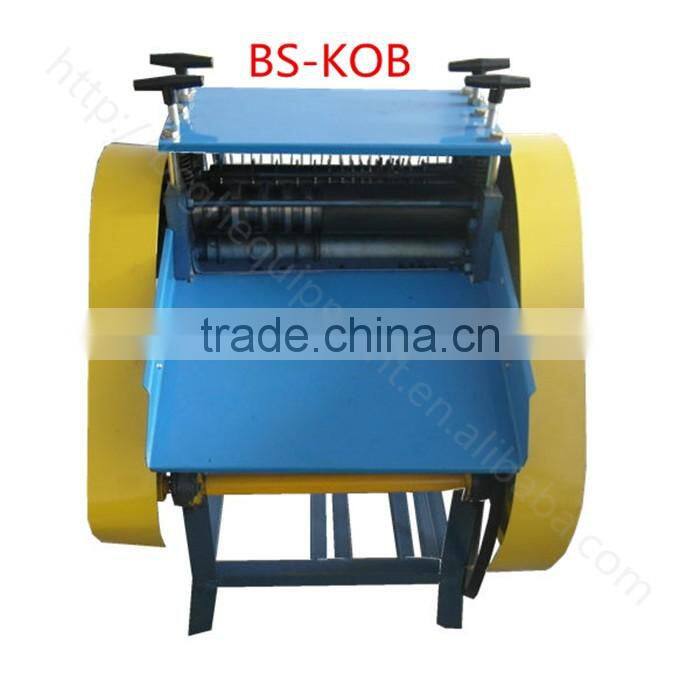

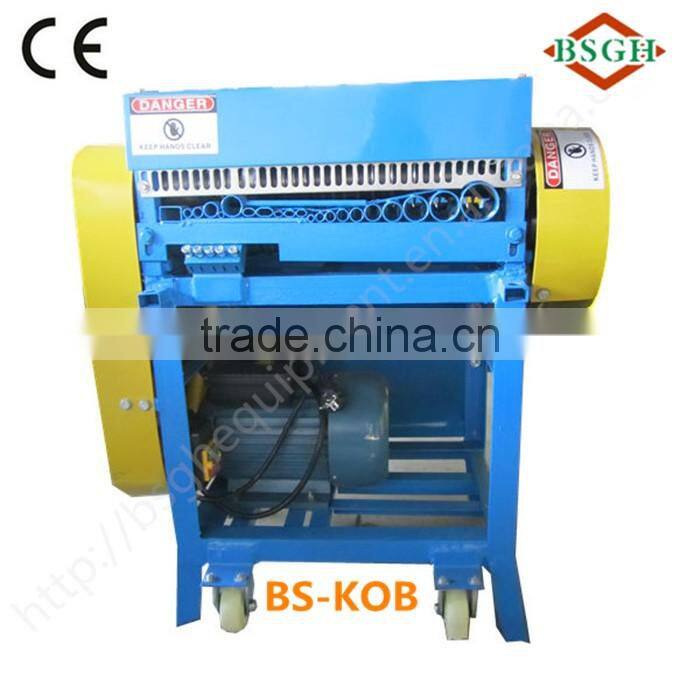

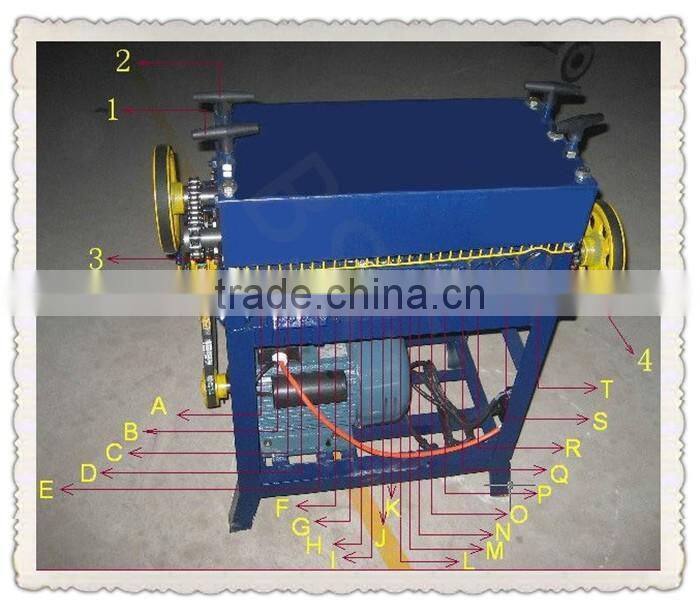

♠BS-KOB composition:
1,Blades adjuster A:twin-core sheet wire inlet
2,Wheel adjuster B:3-4 cores sheet wire inlet
3,center adjuster C:Diameter 1.5-3.0mm cables/wires’inlet
4,Safeguard meshwork D:strip video cables/wires or core loosed wires.
E:Diameter 3.1-4.5mm cables/wires’ feeding hole
F:Diameter 7.0-10.0mm cables/wires’ feeding hole
G:Diameter 10.0-13.0mm cables/wires’ feeding hole
H: Diameter 13.0-14.0mm cables/wires’ feeding hole
I: Diameter 14.0-16.0mm cables/wires'feeding hole
J,K:dual core flat wires
K: Diameter 1.0-3.0mm cables/wire’s feeding hole
L: Diameter 2.0-6.0mm cables/wires’ feeding hole
M: Diameter 3.0-8.0mm cables/wires’ feeding hole
N: Diameter 5.0-10.0mm cables/wires’ feeding hole
O: Diameter 6.0-12.0mm cables/wires’ feeding hole
P: Diameter 10.0-15.0mm cables/wires’ feeding hole
Q: Diameter 12.0-20.0mm cables/wires’ feeding hole
R: Diameter 15.0-27.0mm cables/wires’ feeding hole
S: Diameter 25.0-33.0mm cables/wires’ feeding hole
T: Diameter 30.0-42.0mm cables/wires’ feeding hole
| Product Name | Model | Output | Link |

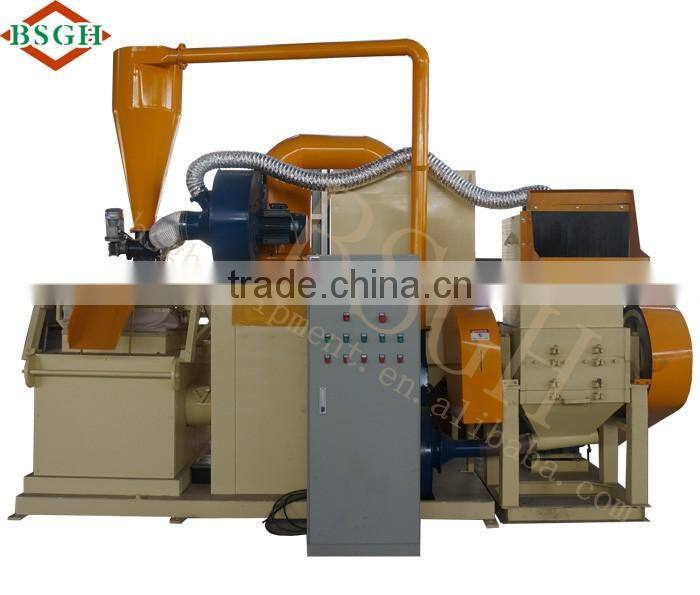

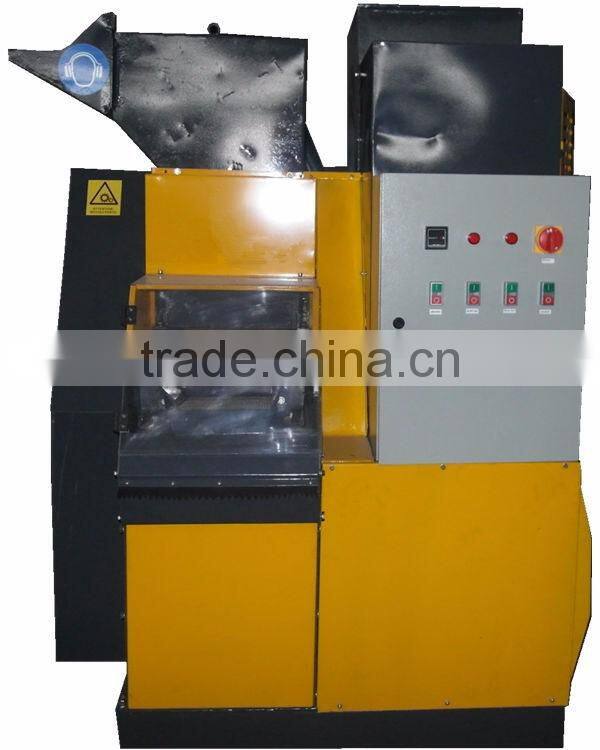

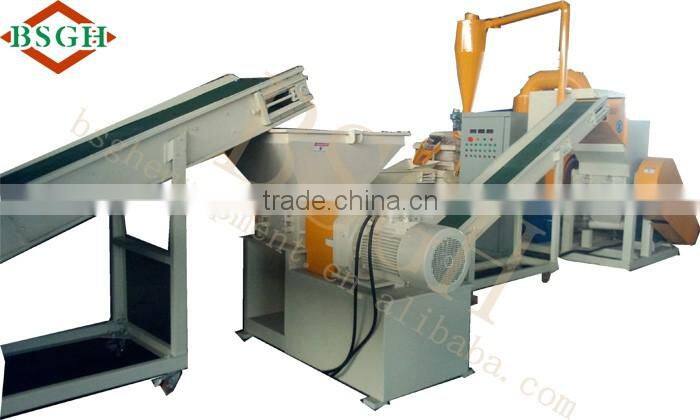

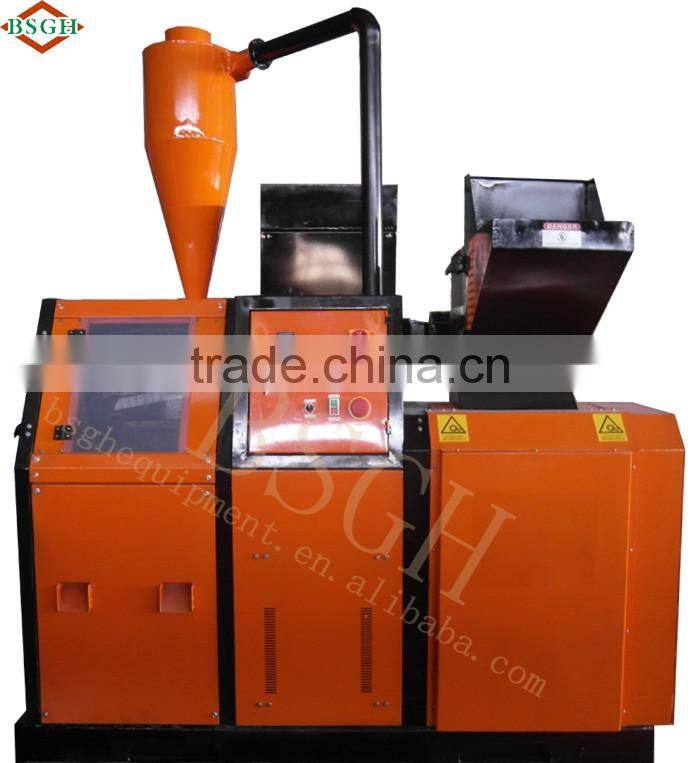

| Automatic Wire Granulator Machine |
miniBS-400 |
100KG/H | click here |
|
BS-400 |
150-200KG/H | click here | |
|
BS-600 |
300-400KG/H | click here | |
|
BS-800 |
600KG/H | click here | |
|
BS-009 |
200KG/H | click here |
