Help Center2014 Best Sale 10~50TPD Wheat Flour Milling Machine, Complete Flour Mill Production Line on Sale
Related Products
-
Small Scale Wheat Flour Milling Machines With Price, Wheat Flour Grinding Mill PriceUS$ 25,000 - 45,000MOQ: 1 Unit -
Small Scale Wheat Flour Milling Machines With Price With a Big FactoryUS$ 25,000 - 45,000MOQ: 1 Unit
-
Small Scale Wheat Flour Mill With a Big FactoryUS$ 25,000 - 45,000MOQ: 1 Unit
-
CHUAN YUE Small Scale Wheat Grinding Machine Top Quality and New TechnologyUS$ 25,000 - 45,000MOQ: 1 Unit
-
High Power! Small Scale Wheat Flour for Bread Top Quality and New TechnologyUS$ 25,000 - 45,000MOQ: 1 Unit
Specifications
long useful lifeeasy operation & high efficiency
low investment & less manpower
vertical/horizontal layout
2014 Best sale 10~50TPD wheat flour milling machine, complete flour mill production line on sale
We can supply the design and manufacture the machine line with the capacity from 5T/24H to 2400T/24H.
Our machine line include clean part, flour milling part and packing part.
Flowchart: 1. cleaning system (sifter, destoner,separator, magnet, scourer, etc) ---- 2. milling system (roller mill, plansifter, purifier, impact detacher, etc.) ---- 3. flour packing and stacking
cleaning part:
Includes beating, screening, destoner, magnetic separator and dampening. Different capacity machine line has different number of beat, screen and stoner.
To ensure the flour Quality and the working life of the mill by removing the impurities in the wheat before go to mill,
Beat: through the beat function of the wheat scourer, wheat brusher to remove dust sand small seed, bacterial count and insect seed.

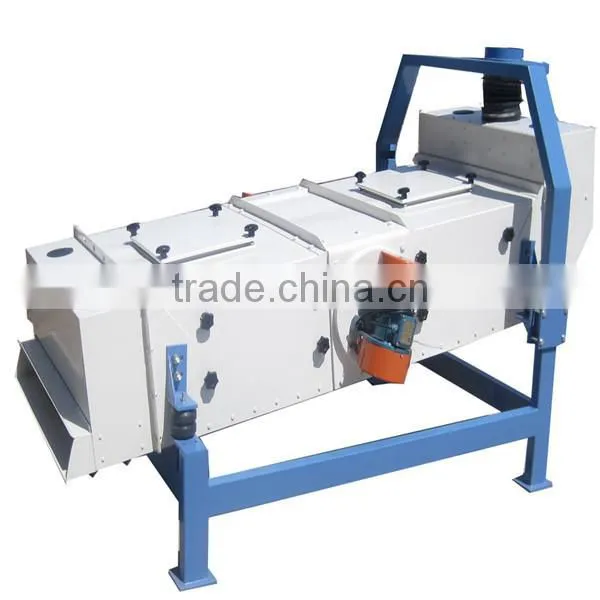

Screening:to remove large and small impurities in the wheat seed by make the wheat go through vibrating sieve and aspiration sieve.

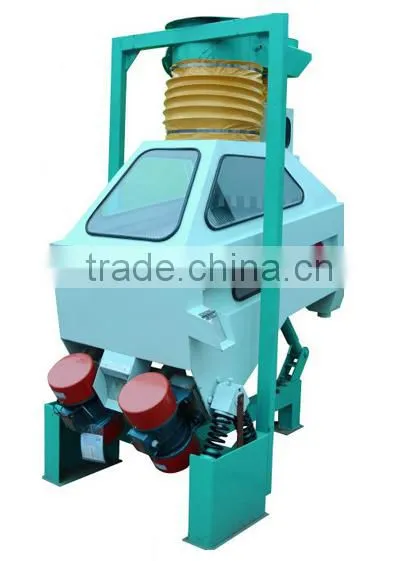

Destoner: mainly remove stone in the wheat to protect them milled into the flour and also protect the roller on the milling process.
Magnetic separator: remove metal material in the wheat to keep the roller safe and also avoid flour exploration accident of spark caused by the impact of the metal impurities and the machine.
Dampening: dampening the wheat bran before mill to ensure the bran’s integrity during the milling processing, avoid the bran going into the flour to keep flour quality.

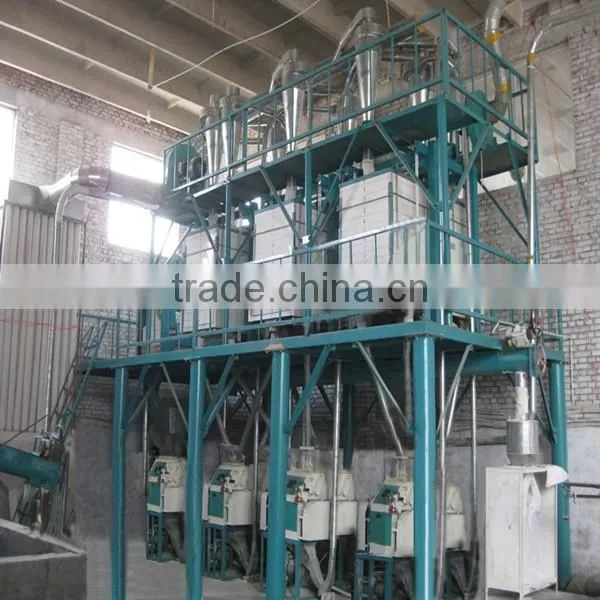

flour milling part:
Include different number of mill and sifter to mill the wheat and separate the flour and bran

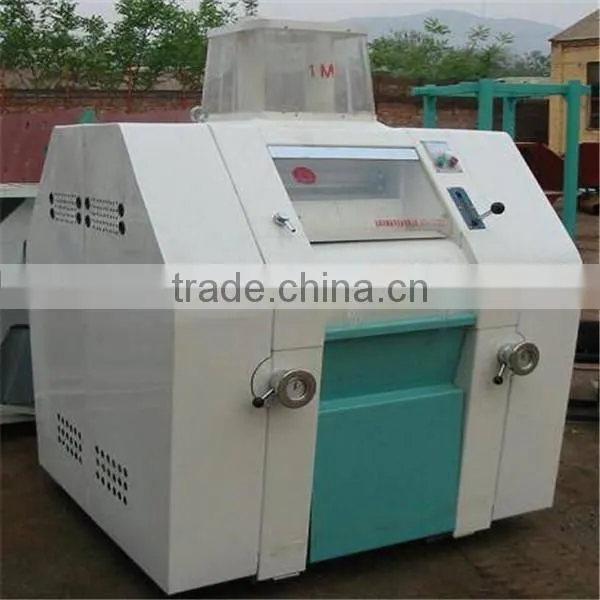

(1) Mill: mill the wheat to break the integrity by the roller moving

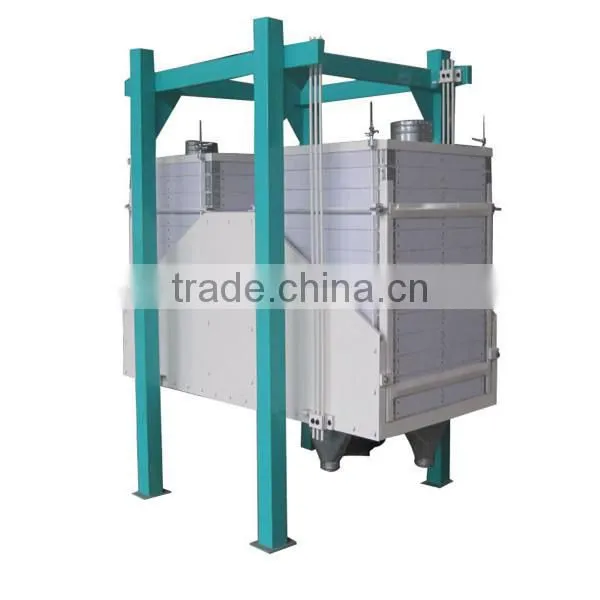

(2) Sifter: to separate the flour and bran, also separate large size and small size to enssure flour quality.

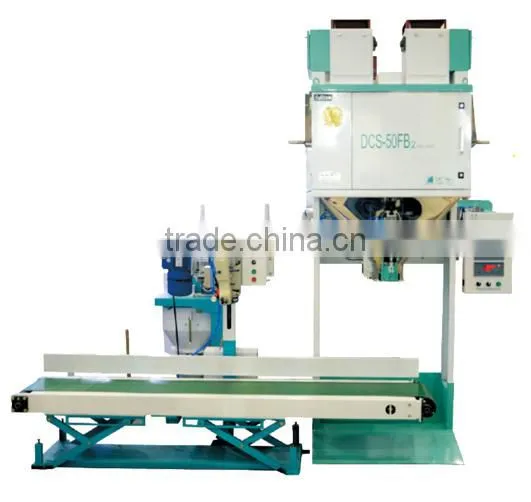

packing part:
The packing part can be manual one also can be auto one, this can be designed according to requirement and machine capacity.
technology:
1.Capacity 10t~50t/24h
2.Flour quality: It could produce super flour, grade flour, special flour and standard flour, according to the customer’s requirement.
3.The flour quality can compare with European product.
TYPE |
POWER ( KW ) |
OUTPUT ( T/24H ) |
SIZE REQUIREMENT ( L×W×H m ) |
10t |
45 |
10 |
6 ×4×4 ( steel frame construction ) |
20t |
60 |
20 |
10 ×4×4 ( steel frame construction ) |
30t |
80 |
30 |
20 ×8×6 ( steel frame construction ) |
50t |
120 |
50 |
28 ×10×6 ( building construction ) |
the process flowchart of milling:
finished products:

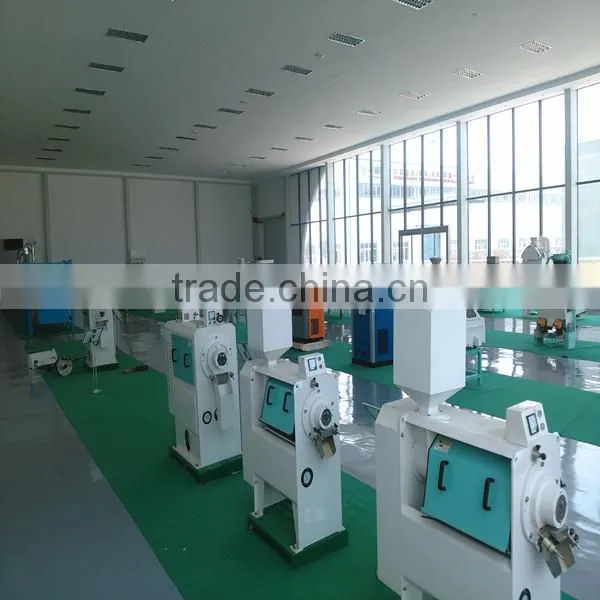

our workshop:

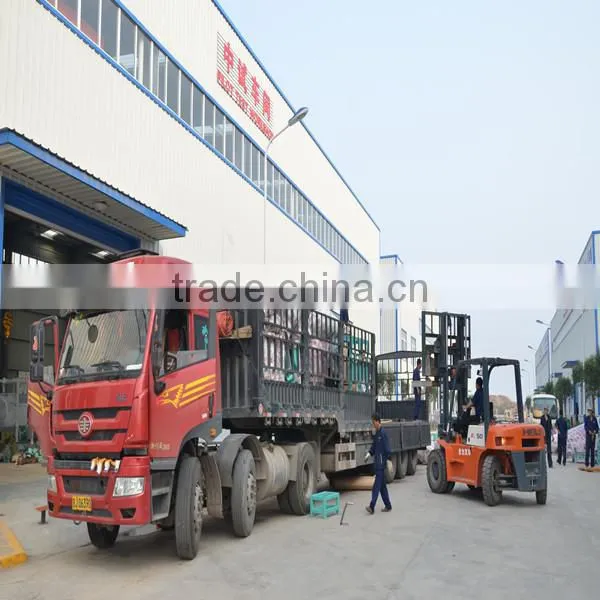

packaging and transport:
our commitment:
1. Provide free diagnosis, assessment services for enterprise
2. Provide free technical personnel to assist with the installation
3. Provide free of wearing parts(in the purchase of six months)
4. Provide OEM, Brush word services
Henan Chuan Yue machinery Co., Ltd.
We are a professional manufacturer of wheat flour milling and maize flour milling complete set machinery in China. We have been in this field for thirty years. We have modern processing workshop, advanced designing team, professional installing group, scientific management mode, and strict quality inspection to supply high quality complete sets of machinery of worldwide customers.
Our equipments have scientific design and configuration, elegant appearance, high efficiency, low power consumption, lower production costs. Our equipments run smoothly and steadily, with low noise and zero pollution; the service life can reach 25 years. Your satisfactory is our goal! Chuan Yue, your friend, is willing to create wonderful future together with you.
Give us a chance, and we will give you a surprise!
