Specifications
Vacuum Forming Machine1.Simplicity of operator.
2.Material can be recycled.
3 .Excellent qualit..
PS food box vacuum forming machine
Product pictures
Mainly including three main parts:
1. PS foam sheet extruder: make PS foam sheet from raw material
2. Fully auto forming and cutting machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc (we can design mould according to customer requirements)
3. Plastic recycle machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again

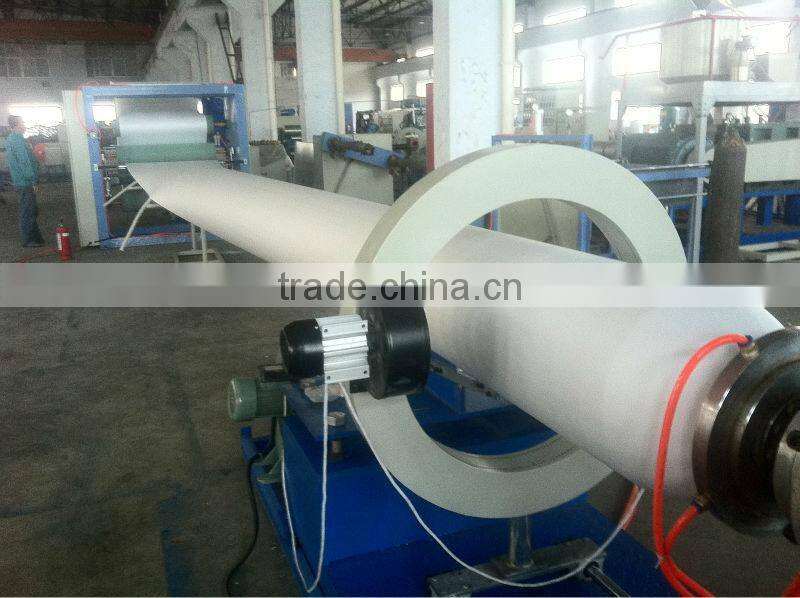

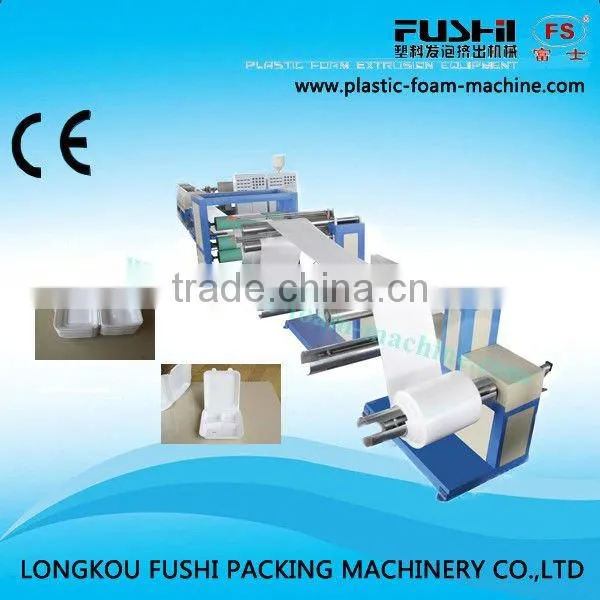

A. PS Foam Sheet Extruder

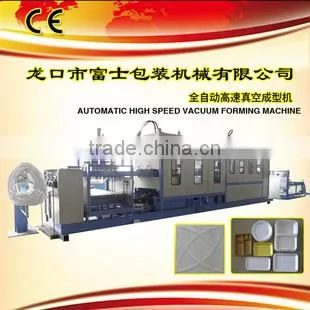

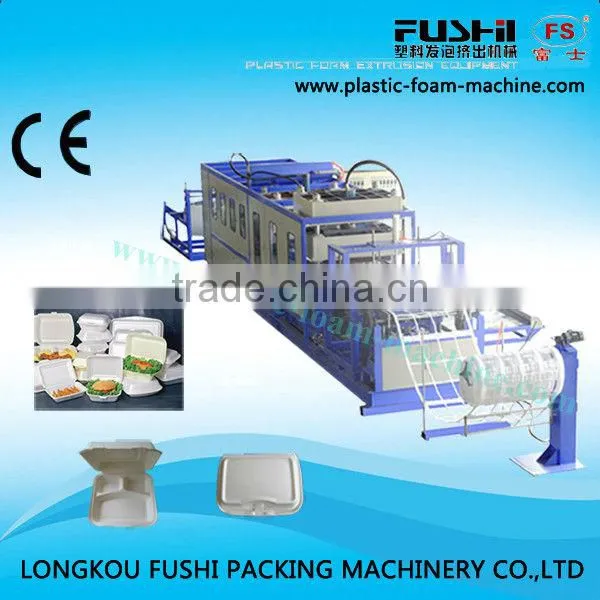

B. Fully auto forming and cutting machine
Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program. Two workers are enough for whole production line.
The machine is plastic sheet forming equipment in one step with following process: transporting sheet, heating, forming, cutting, stacking and winding waste edge.
Applications
-- Disposable material for lunch box, bowl, tray, plate etc…
-- Internal cushioning material for food, fruits and cosmetics
Main technical parameters
Model |
Unit |
TY-1040 |
Max. forming area |
mm2 |
1000×1100 |
Max. forming depth |
mm |
80 |
Production efficiency |
s/die |
3 - 8 |
Forming pressure |
T |
15 |
Mounted power |
kw |
168 |
Total weight |
T |
16 |
Installation size |
m |
13×2×3.2 |

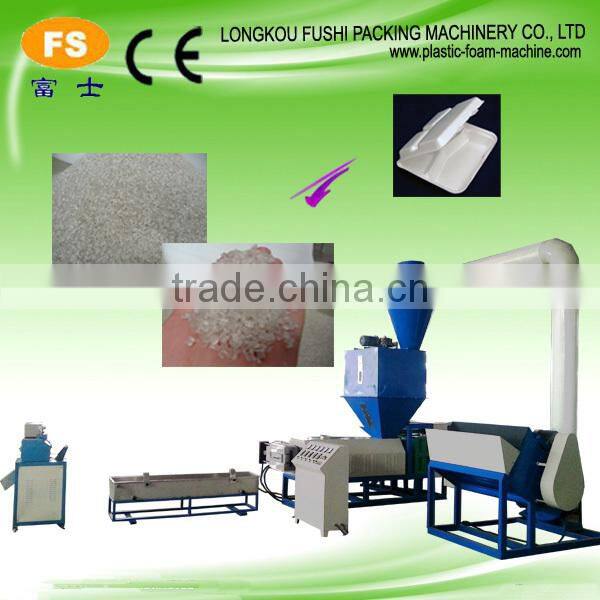

C.Plastic recycle machine
Plastic recycle and pelletizing machine is designed to reclaim the foamed polystyrene materials almost identically to new ones with its own superior filtering performance.
Main technical parameters
Screw Diameter |
φ300×φ110mm(reducing) |
L/D ratio of screw bolt |
28:1 |
Main motor power |
15kw |
Pelletizer power |
0.75kw |
Heating power |
15kw |
Total power |
35kw |
Segments of heating |
4 |
Wind motor |
120W |
Throughput |
80-120kg/h |
Application |
PE/PS scrap recycling and pelletizing. |

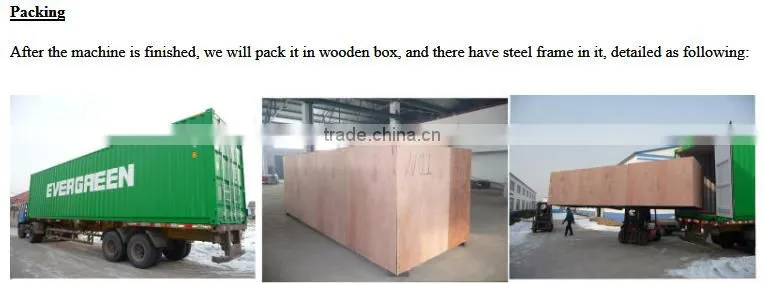

Shipping
1. Ocean shipping
2. Land transportation
Payment
1. T/T
2. L/C
3. ESCROW

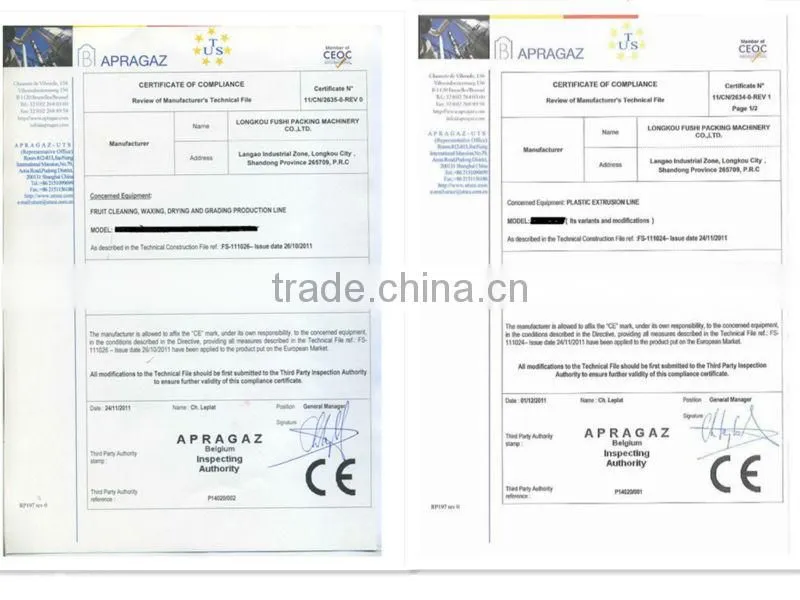

Certification
