Specifications
Polysyrene Foam Ceiling Tiles Machine1.ps foam sheet extruder machine
2.vacuum forming machine
3,recycling machine
4.CE
disposable polystyrene foam ceiling board forming machine
This line is the whole production line, which can form ceiling tiles from raw material. The material is recycled. The work flow is as follows: raw material---(polystyrene foam sheet extrusion line)---foam sheet---(ceiling tiles forming machine and cutting machine)---ceiling tiles---(plastic recycle machine)---plastic granulars( this part can be used as raw material)----foam sheet.
For producing ceiling tiles, you can change the mould to producing different patterns.

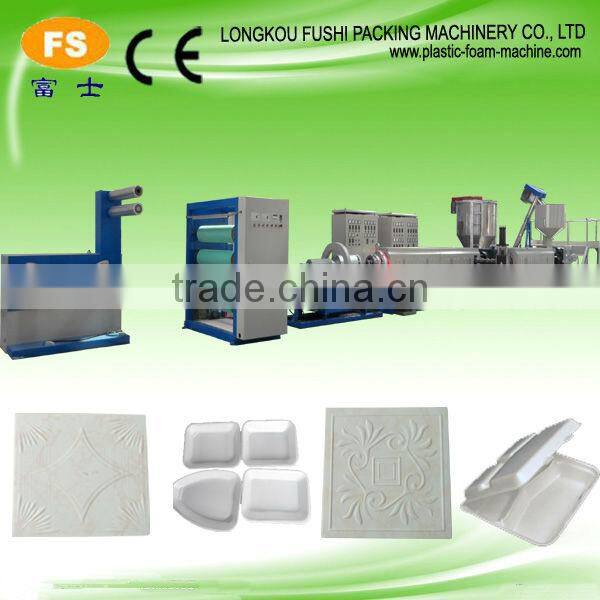

1.polystyrene foam sheet extruder machine
-------Polystyrene Foam Sheet extruder Machine uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control etc.
------Polystyrene foam sheet extruder machine produce polystyrene foam sheet, which is a kind of new-type packing with the features of shock proofing, sound insulating, heat preservation, damp proof, safety, and good plasticity. It is used widely in the packing of food, fruit, electronic product, daily necessities, hardware product, advertisement plate, etc.
a.the thickness of foam sheet is 1.2mm-5.0mm
b.the output is 220-320kg/h
c.the width is 1080mm
2. automatic ceiling tiles vacuum forming machine
Production instruction:
This machine is mainly suitable for polystyrene(PS).
It made the roll sheet to various kinds of ceiling tiles by vacuum forming which is used in decorating the house, the product have the feature of holding the indoor humidity accommodating and inhahited environmente.mould proof and sterilization improving our life space grately .
Features of this machine:
1.This kind of machine uses hydraulic and mechanical combine with pneumatic to achieve the automated continuous operation of feeding,forming,stripping,subboard cut andstacking. PLC control system make the machine work more reliable.
2. It adopts photocell to control the feeding be more stable and reliable, the feeding width and length can be adjusted steplessly, it is suitable for arranging different mould. It has an advantage of high efficient.
3.Adopted hollow far infrared heating piece to equip with up and down heating system, it has automatic temperature control
system.
4.According to the requirements of customer,this machine could usewind cooling and water fog system,it can work continuouly without water-cooling system, and it is suitable for producing non-metal mould .
5. With doubleshaft loosening device, transverse cutting and pilling unit, to improve the efficiency of production.

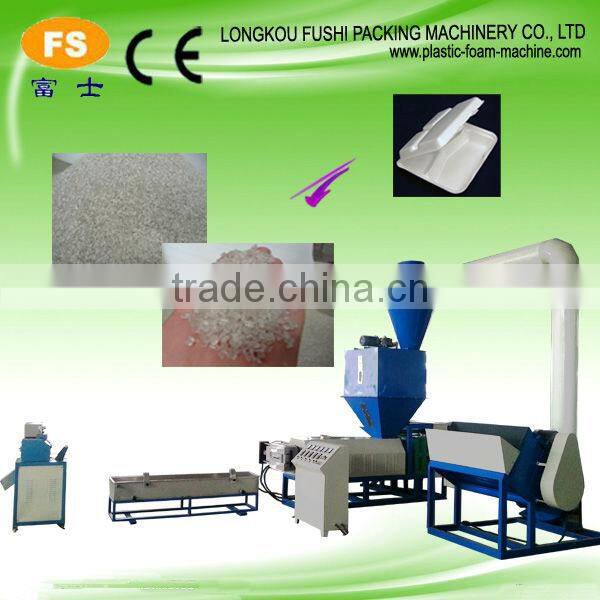

3.PS scrap recycling machine
Product description: This recycling and pelletizing machine is designed to reclaim the foamed polystyrene and polyethylene materials almost identically to new ones with its own superior filtering performance.
