Recommended good quality cemented carbide buttons

FOB Price

USD $60 - $76 / Kilogram

1 Kilogram(Min.Order)

Supply Ability 10000 Kilogram / Kilograms per Month
Port any as required
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China		Brand Name	JX
Model Number	JX		Alloy Specification	Tungsten Mining Button

Product Description

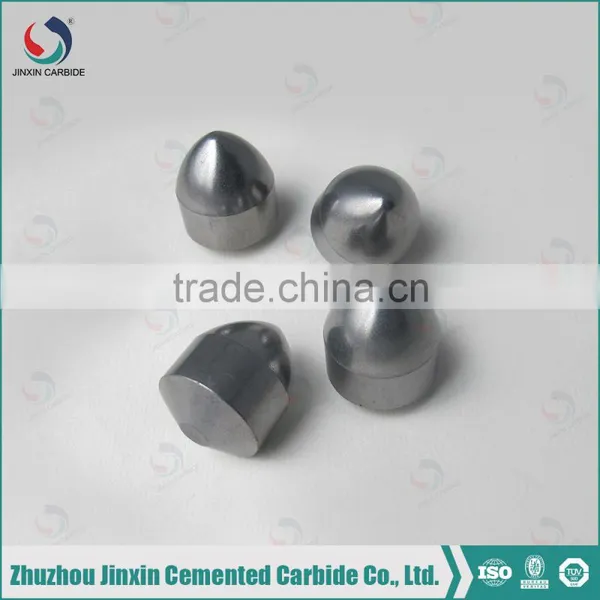

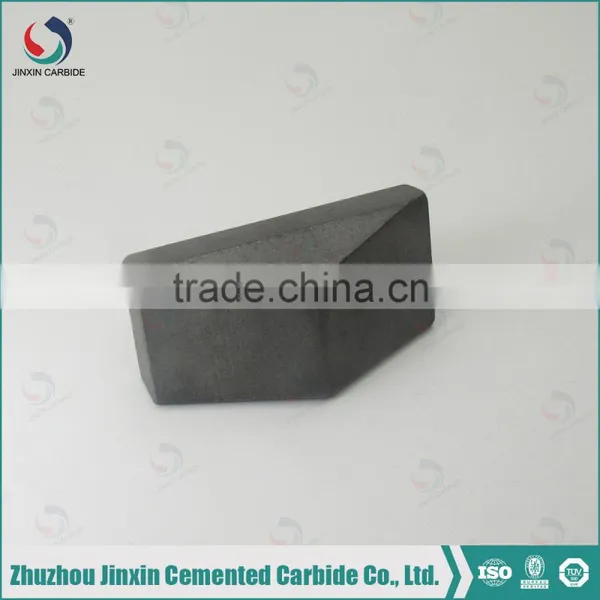

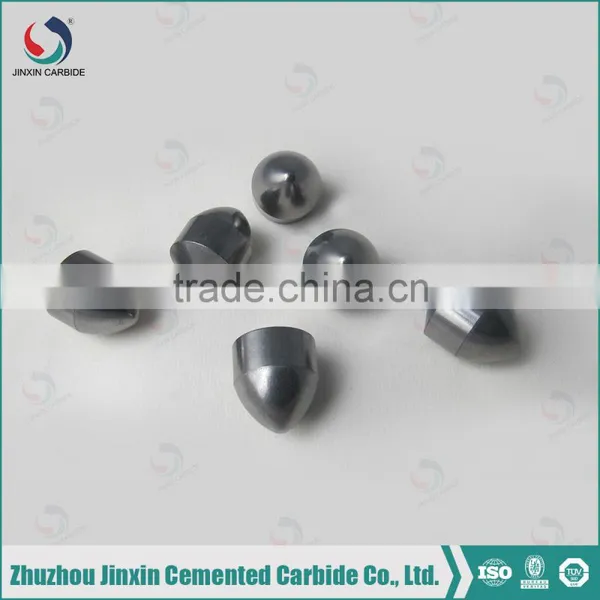

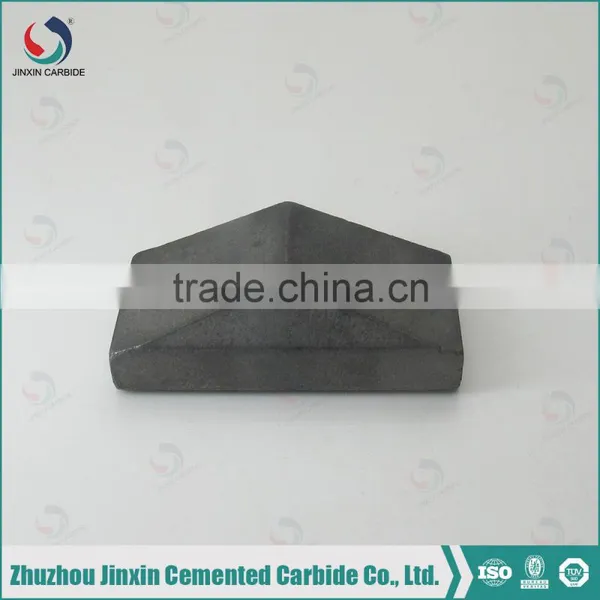

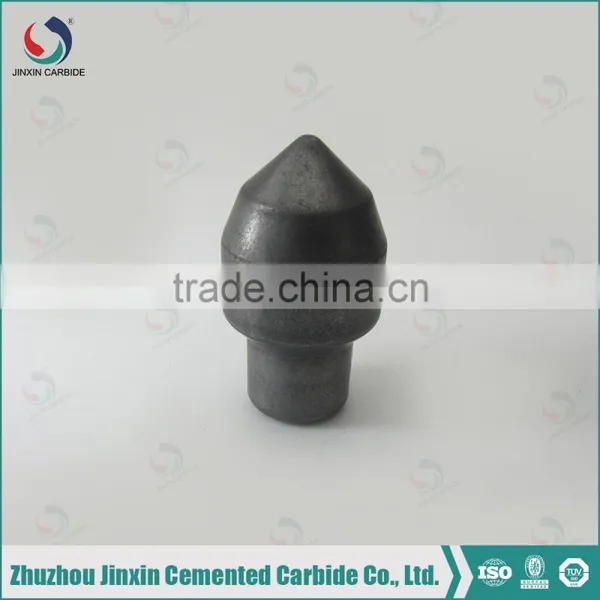

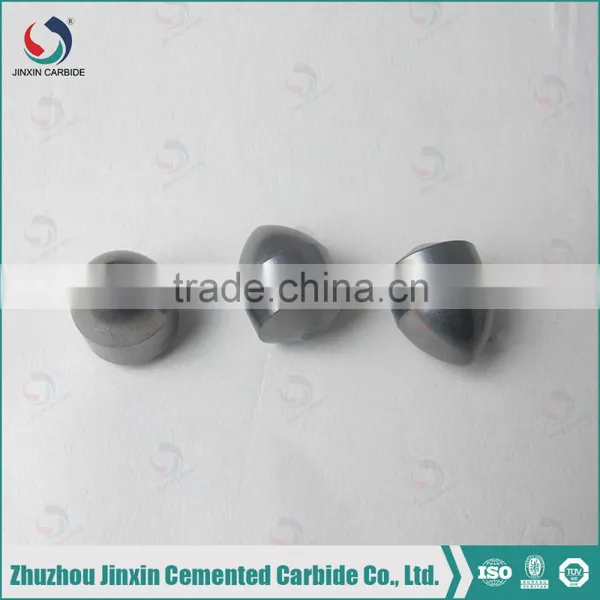

Recommended good quality cemented carbide buttons

Specification

1.High wear&impact resistance

2.Advanced equipment.
3.A long life time
4.High performance

Application

Tungsten carbide drill bit is widely used in mining, sand,cement,metallurgy and hydropower engineering industries.

Properties & applications of Carbide capbuttons for mining of grade YG11C made by top manufacturer in zhuzhou cemented carbide base are available

Grade	g/cm3	TRS MPa	Hardness HRA	Performance & application recommended
YG4C	15.10	1800	90.0	Mainly used as small buttons for percussion bits to cut soft and medium hard formations.
YG6	14.95	1900	90.5	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YG8	14.80	2200	89.5	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YK05	14.95	2500	90.5	Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary Parabolic prospecting bits to cut soft and medium hard formations.
YG8C	14.80	2400	88.5
YK15	14.60	2450	87.6	Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations.
YK20	14.40	2500	86.8	Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.
YK25	14.40	2550	87.2	Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations.
YG11C	14.40	2700	86.5	Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.
YG13C	14.2	2850	86.0	Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations.
YG15C	14.0	3000	85.5	For oil cone drill bits, for medium soft and medium-hard rocks.

Advantages:

Use 100% tungsten carbide raw material

ISO 9001 Certification

with ten year experience

Advanced technology , automatic pressing , HIP sintering And precision grinding

the tolerance of polish and ground can be +0.005/-0.005m

Contact Details:

Tel:0086-0731-28821498

Fax:0086-0731-22332243-8006

Email:jinxin08(at)

jinxin012(at)

chinacarbide(at)

Add:No.28 Xinhua Road,Zhuzhou City,Hunan Province,China

Relying on the advantages of Zhuzhou and Zigong Hard Alloy Production Bases, the company integrates the production, R&D, technical service and sale of hard alloy products, and is devoted to producing hard alloy products and developing hard alloy precision parts.

All of our tungsten Carbide Products are made from the high-purity Original/Virgin Raw Materials and HIP/Sintered, with very high quality and excellent performances. Also the price is very competitive.
