Home > Products > tungsten carbide mining tips/buttons > 16x28 Type Q Carbide Button for Grilling Tools
16x28 Type Q Carbide Button for Grilling Tools
- 10000 Kilogram / Kilograms per Month
- any as required
- T/T L/C D/P D/A Credit Card PayPal
-
CD-650 High Precision Tungsten Carbide Blank for Carbide Punches Die Inserts
-
Yg20c Tungsten Carbide Metal Forming Dies for Cold-Forming Screws Bolts and Rivets
-
Bk15/Bk20 Customizable Tungsten Carbide Seaming Roller Dies for Can Sealing Side
-
YG25/GT55 tungtsen carbide punching dies for bolt
-
K10/K20 Tungsten Carbide Valve Ball with Hollow Hole for Valve Pumps
-
Original Material Tungsten Carbide Inlet Seats for Air-Operated Airless Spray Pumps
Product Details
| Place of Origin: | Hunan, China | Brand Name: | JX | Model Number: | JX |
| Alloy Specification: | Tungsten Mining Button | Particle: | Medium |
Product Description

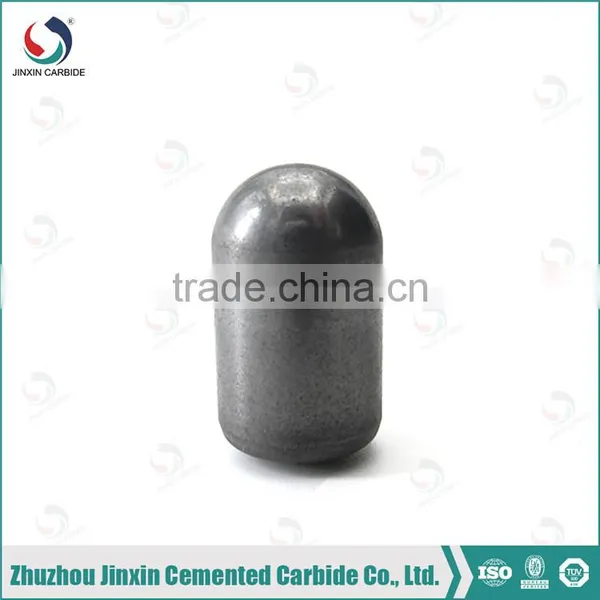

16x28 type Q carbide button for drilling tools supplied by Zhuzhou jinxin manufacturer
Tungsten Carbide Button Specification
1.High wear&impact resistance
2.Advanced equipment.
3.A long life time
4.High performance
Tungsten Carbide Button Specification Application
Tungsten carbide drill bit is widely used in mining, sand,cement,metallurgy and hydropower engineering industries.
Properties & applications of Carbide buttons for mining of grade YG11C made by top manufacturer in zhuzhou cemented carbide base are available
| Grade | g/cm3 | TRS MPa | Hardness HRA | Performance & application recommended |
| YG4C | 15.10 | 1800 | 90.0 | Mainly used as small buttons for percussion bits to cut soft and medium hard formations. |
| YG6 | 14.95 | 1900 | 90.5 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
| YG8 | 14.80 | 2200 | 89.5 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
| YK05 | 14.95 | 2500 | 90.5 | Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary Parabolic prospecting bits to cut soft and medium hard formations. |
| YG8C | 14.80 | 2400 | 88.5 | |
| YK15 | 14.60 | 2450 | 87.6 | Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations. |
| YK20 | 14.40 | 2500 | 86.8 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
| YK25 | 14.40 | 2550 | 87.2 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations. |
| YG11C | 14.40 | 2700 | 86.5 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations. |
| YG13C | 14.2 | 2850 | 86.0 | Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations. |
| YG15C | 14.0 | 3000 | 85.5 | For oil cone drill bits, for medium soft and medium-hard rocks. |
Tungsten Carbide Button Specification Advantages:
Use 100% tungsten carbide raw material
ISO 9001 Certification
with ten year experience
Advanced technology , automatic pressing , HIP sintering And precision grinding
the tolerance of polish and ground can be +0.005/-0.005m
Gisselle Gan
Whatsapp: 0086-15873358163
Skype: jxcarbidewendy
Email: jinxin21(a)
Add:No.28 Xinhua Road,Zhuzhou City,Hunan Province,China
Relying on the advantages of Zhuzhou and Zigong Hard Alloy Production Bases, the company integrates the production, R&D, technical service and sale of hard alloy products, and is devoted to producing hard alloy products and developing hard alloy precision parts.
All of our tungsten Carbide Products are made from the high-purity Original/Virgin Raw Materials and HIP/Sintered, with very high quality and excellent performances. Also the price is very competitive.
If you have any question for the payment,Please let us know.
Gisselle Gan
Mobile:0086-15873358163
Whats up No.+86 15873358163
skype: jxcarbidewendy
Email: jinxin21(a)
Add.: No.28 Xinhua Road, Zhuzhou City, Hunan Province, China
Fax: 0086-0731-22332243
Contact Us
- Zhuzhou Jinxin Cemented Carbide Co., Ltd.
- Contact nameCanny Tang
- Phone86-731-22332243
- AddressCigu Tang No.9, Hetang district Zhuzhou,Hunan
-
