Carbide Buttons With Mashroom Shape and Many Different Types of Buttons Available for Mining Drill Bits
US$ 50 - 100
MOQ: 10 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
jinXin
Model Number:
JC-1822
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
With 100% Raw Material Cemented Carbide Spherical ButtonsUS$ 55 - 90MOQ: 5 Kilograms -
Cemented Carbide Milling Insert,tungsten Carbide Cutter BladeUS$ 3 - 5MOQ: 50 Pieces
-
Carbide Button Inserts for Coal-mining of Grade YG8C SQ SeriesUS$ 50 - 100MOQ: 10 Kilograms
-
Tungsten Carbide Bullet Teeth and Tungsten Carbide Tipped Drill Bits TipsUS$ 65 - 80MOQ: 5 Kilograms
-
Carbide Indexable Inserts E247 Tool Parts for Making Twist Dill BitUS$ 0.3 - 6MOQ: 100 Pieces
Place of Origin
Hunan, China
Brand Name
jinXin
Model Number
JC-1822
Type
Drill Bit
Machine Type
Drilling Equipment
Certification
Other, ISO
Material
Carbide
Processing Type
Forging
Use
Coal Mining
Specifications
Carbide buttons with mashroom shape and many different types of buttons available for mining drill bits1.manufacturer
Carbide buttons with mashroom shape and many different types of buttons available for mining drill bits
| Grade | g/cm3 | TRS MPa |
Hardness HRA |
Performance & application recommended |
| YG4C | 15.10 | 1800 | 90.0 | Mainly used as small buttons for percussion bits to cut soft and medium hard formations. |
| YG6 | 14.95 | 1900 | 90.5 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
| YG8 | 14.80 | 2200 | 89.5 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
| YK05 | 14.95 | 2500 | 90.5 | Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
| YG8C | 14.80 | 2400 | 88.5 | |
| YK15 | 14.60 | 2450 | 87.6 | Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations. |
| YK20 | 14.40 | 2500 | 86.8 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
| YK25 | 14.40 | 2550 | 87.2 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations. |
| YG11C | 14.40 | 2700 | 86.5 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations. |
| YG13C | 14.2 | 2850 | 86.0 | Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations. |
| YG15C | 14.0 | 3000 | 85.5 | For oil cone drill bits, for medium soft and medium-hard rocks. |

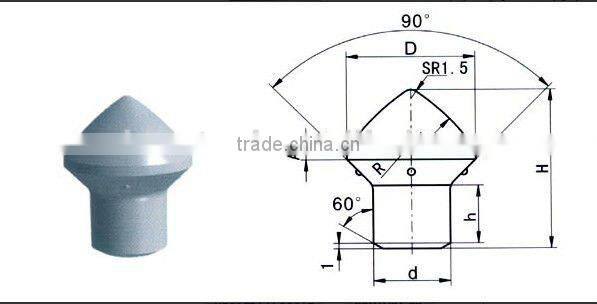

| Type | Dimension (mm) | |||||||
| D | d | H | H | R | A | |||
| Dim. | Tol. | Dim. | Tol. | |||||
| JC-?1822 | 18 |
-0.1 -0.4 |
10 |
-0.1 -0.4 |
22 | 8.0 | 30 | 1.5 |
| JC-?2025 | 20 | 12 | 25 | 10.0 | 35 | 1.5 | ||
| JC-?2027 | 20 | 12 | 27 | 10.5 | 35 | 4.0 | ||
| JC-?2228 | 22 | 14 | 28 | 12.0 | 40 | 1.5 | ||

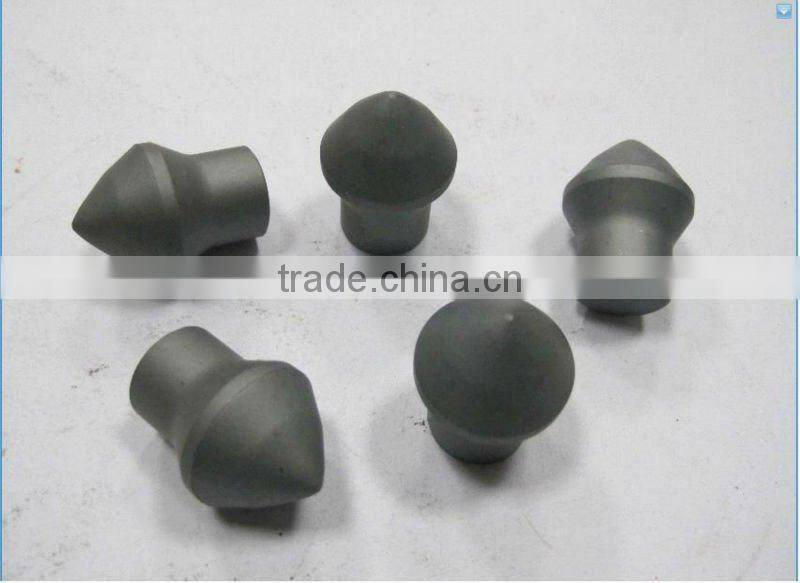

The dispaly of Carbide buttons with mashroom shape and many different types of buttons available for mining drill bits
The packing of Carbide buttons with mashroom shape and many different types of buttons available for mining drill bits

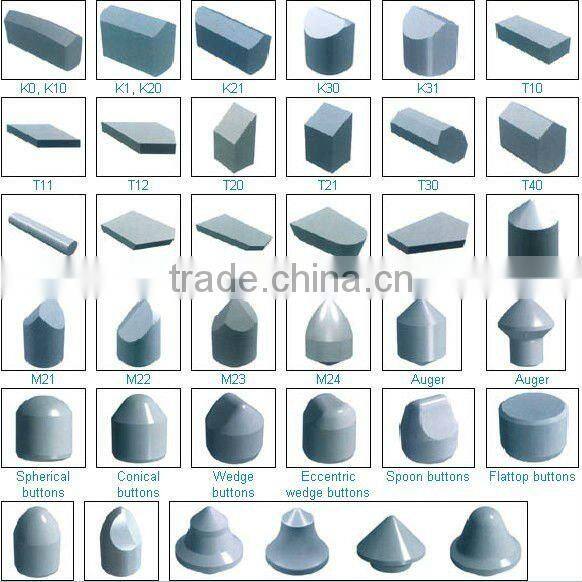

Zhuzhou Jinxin Cemented Carbide Co., Ltd specializes in manufacturing a series of Tungsten Carbide products.such as:
Carbide Saw Tips
Carbide Buttons for Rock Bits
Carbide Inserts for Road Milling, Plaing Bits
Carbide Inserts for Coal Cutter Picks
Carbide Inserts for Snopw Plow Blades
Carbide Inserts for Mining Tools
Carbide Round Rods (dia from 1.0 to 25.4 mm)
Cabide for rock drilling tools and coal-mining tools
Carbide Tubes
Carbide strips and plates
Carbide tips for Debarking Bits
Carbide Brazed Inserts or Tips
Carbide pins
Tire studs
Carbide Blanks
Carbide Wear-Parts, etc.
All of our tungsten Carbide Products are made from the high-purity Original/Virgin Raw Materials and HIP/Sintered, with very high quality and excellent performances. Also the price is very competitive.
More items & details about our products/company can be found on our webpage & shop.
Enjoy your purchasing time.
lili
Skype:chinacarbidelili
