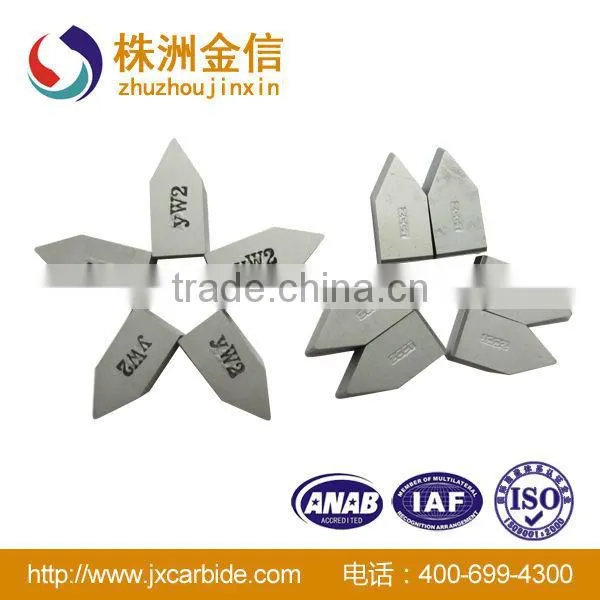

Cemented Carbide Brazed Carbide Tips
Choosing method of selecting carbide welding insert grade:
It is an important technology of using cemented carbide welding blades to choose a suitable grade. Grade is the material of cemented carbide chips. It is direct matteringt the machining cost and cuttingefficiency.
Different material need different grade. For example, ordinary carbon steel and alloy steel are need different grade. So in order to pick up the most suitable grade, we should know well about the performance and application of each grade. Here for your reference, we list the qualification and usage of each grade as below:
ISO Classification Grouping Code |
Grade | Physical and mechanical properties |
Recommended Use | ||
Density |
HRA(HV) |
Mpa | |||
K05 | YG3 | 15.0 | 90.5 | 1300 | Applicable to cast iron, non-ferrous metal finishing. |
K10 | YG6X YG6A | 14.8 14.7 | 91 91.5 | 1560 1510 | Applicable to cast iron, non-ferrous metal finishing and semi-finishing; manganese steel and hardened steel processing can also be used. |
K15 | YG6 | 14.9 | 89.5 | 1670 | Applicable to roughing of cast iron and light alloys; also for milling of cast iron and low-alloy steel. |
K20 | YG8 | 14.6 | 89.0 | 1840 | |
M10 | YW1 YW3 YW4 | 13.0 12.9 12.3 | 91 92 92 | 1290 1390 1390 | Applicable to stainless steel and ordinary steel finishing and semi-finishing. |
M20 | YW2 | 12.9 | 90.5 | 1460 | Applicable to stainless steel and low-alloy steel semi-finishing, mainly used to train tire processing. |
P10 | YT05 YT15 | 12.6 11.3 | 92.5 91.0 | 1260 1300 | Applicable to finishing and semi-finishing of steel and cast steel, should adopt a moderate amount of feed and high cutting speeds. |
P20 | YT14 YS30C SC30 YS25 | 11.4 12.5 12.9 13.0 | 90.5 91 91 90.5 | 1400 1740 2000 1780 | Applicable to finishing and semi-finishing of steel and cast steel, should adopt a moderate amount of feed and the milling speed of YS25 dedicated to steel and cast steel. |
P30 | YT5 | 12.8 | 89.5 | 1560 | Applicable to heavy cutting of steel and cast steel and the low-speed large amount of feed roughing in poor operating conditions. |
K05-K10/M20 | YT26 | 14.0 | 92.5 | 1600 | High red hardness, good cold resistance. Suitable for finish and semi-finish machining of chilled cast iron, non-ferrous metal, and can also using in turning and milling of manganese steel, chilled steel. |
K20 | YD201 | 14.9 | 91.0 | 1800 | Suitable for semi-finish and rough machining of cast iron and light alloy, and can also use in milling of cast iron and low alloy steel. |
M05-M10 | YS8 | 13.9 | 92.5 | 1720 | Suitable for finish machining of iron-based and nickel-basedhigh temperature alloy, high strength steel. And can also use in finish machining of chilled cast iron, heat-resistance stainless steel, high manganese steel and chilled steel. |
M20 | YM20 | 13.0 | 91.0 | 1750 | Suitable for medium cutting speed and feed rate semi-finish turning and semi-finish milling of steel, cast iron, manganese steel and grey cast iron. |
P30 | YC30S | 12.9 | 90.0 | 1600 | Suitable for milling machining of steel, cast iron and alloy steel. |
P35-P40 | YC40 | 12.9 | 91.0 | 2200 | Suitable for bad conditions, low cutting speed turning and large feed rate turning of steel and cast steel. |
P40 | YM40 YC45 | 12.75 12.75 | 90.0 90.0 | 2100 2300 | Suitable for gravity turning of steel and cast steel. Using large cutting data, as well as section milling. |
Zhuzhou Jinxin Cemented Carbide Co., Ltd, specializes in manufacturing a series of Tungsten Carbide products.such as: Carbide roller /Carbide Saw Tips /Carbide Buttons for Rock Bits /Carbide Inserts for Road Milling /Plaing Bits /Carbide Inserts for Coal Cutter Picks /Carbide Inserts for Snopw Plow Blades /Carbide Inserts for Mining Tools /Carbide Round Rods (dia from 1.0 to 25.4 mm) /Carbide Tubes /Carbide tips for Debarking Bits /Carbide Brazed Inserts or Tips /Carbide pins /Tire studs /Carbide Blanks /Carbide Wear-Parts, etc.
