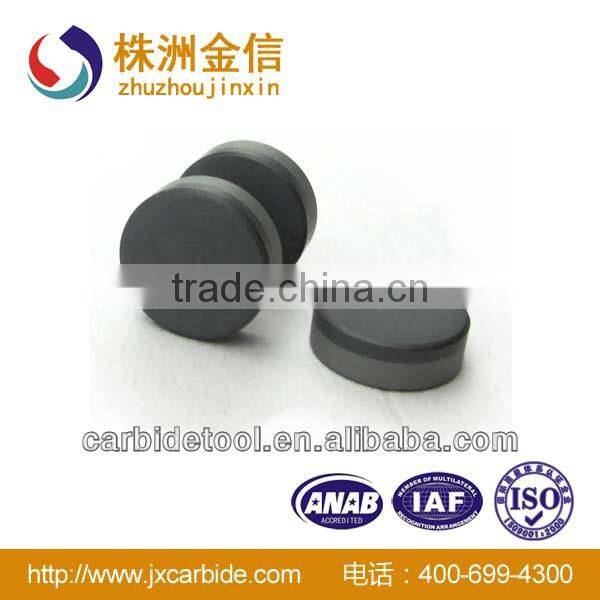

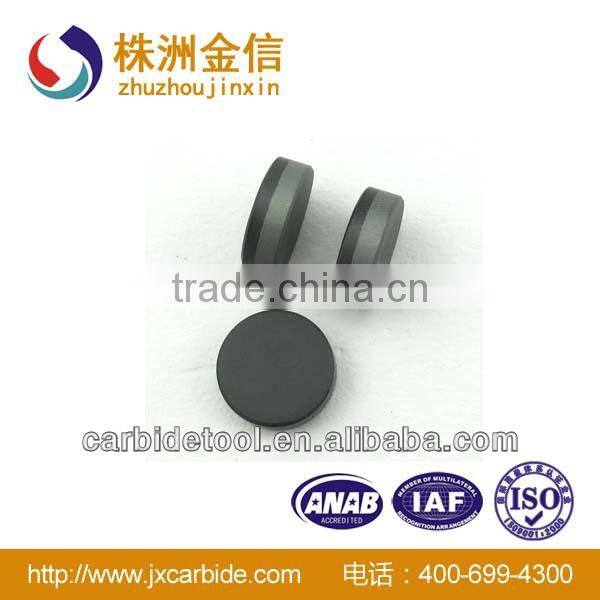

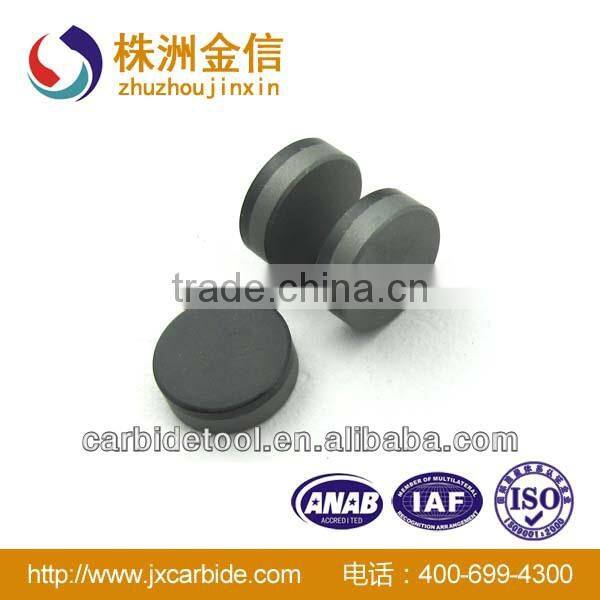

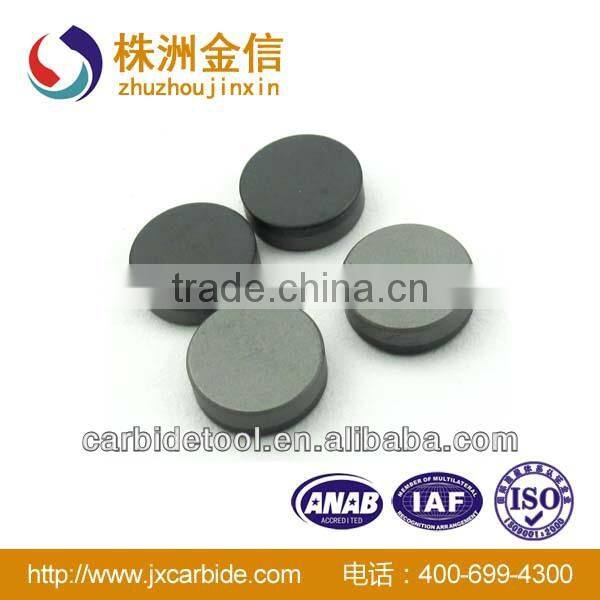

drilling bits PDC cutter, PCD cutter buttons

Specifications

drilling bits PDC cutter, PCD cutter buttons :
1.100%virgin raw material.
2.factory produce direct
3.free online technic



drilling bits PDC cutter, PCD cutter buttons

Grade	Density (g/cm²)	Hardness (HRA)	T.R.S (N/mm²)	Application
YK25	14.4	≥87.0	≥2400	Suitable for mining large drill , chisel tooth into hard rock.
YG11C	14.2	≥87.0	≥2360	Suitable for inlay manufacturing heavy duty rock drills with drill,such as the deep-hole drilling, rock drill trolley with a bit.



1.JX Series: Flat interface PDC, suitable for drilling bits for low and medium hard rock formations.
Product Code	Specification
	D(mm)	H(mm)
JX 0804	8	4
JX 0808	8	8
JX 1304	13.3	4.5
JX 1308	13.44	8
Diamond layer at about 0.7mm
Product Code	Specification
	Diameter ( mm )	Height ( mm )
JXI 0803	8	3.53
JXI 0808	8	8
JXI 1004	10	4.5
JXI 1008	10	8
JXI 1304	13.3	4.5
JXI 1308	13.44	8
JXI 1313	13.44	13.2
JXI 1610	16	10
JXI 1613	16	13.2
JXI 1908	19.05	8
JXI 1910	19.05	10
JXI 1913	19.05	13.2
JXI 1916	19.05	16.31
JXI 1919	19.05	19















  drilling bits PDC cutter, PCD cutter buttons



best price of PDC cutters for mining drilling bits

Zhuzhou Jincin Cemented Carbide Co., Ltd specializes in manufacturing a series of

Tungsten Carbide products, such as:





Carbide Saw Tips

Carbide Buttons for Rock Bits



Carbide Inserts for Road Milling, Plaing Bits



Carbide Inserts for Coal Cutter Picks



Carbide Inserts for Snopw Plow Blades



Carbide Inserts for Mining Tools

Carbide Round Rods (dia from 1.0 to 25.4 mm)



Carbide Tubes



Carbide tips for Debarking Bits



Carbide Brazed Inserts or Tips



Carbide pins



Tire studs



Carbide Blanks



Carbide Wear-Parts, etc





All of our tungsten Carbide Products are made from the high-purity Original/Virgin Raw Materials and HIP/Sintered, with very high quality and excellent performances. Also the price is very competitive.





More items & details about our products/company can be found in our shop.

Please enjoy your purchasing time.











Skype: Chinacarbidelili
