Produced From Zhuzhou Boron Carbide Price

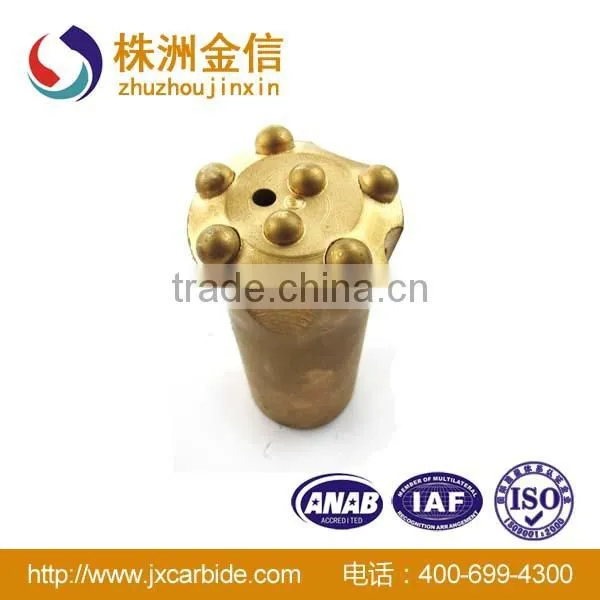

Rock drilling bits
Grade |
Density(g/cm³) |
Hardness(HRA) |
TRS(N/mm²) |
Applications recommended |
|
YG6 YG6X YG6A YG8 |
14.70-15.10 14.80-15.10 14.80-15.00 14.60-14.90 |
≥90 ≥91 ≥92 89.3 |
≥1600 ≥1500 ≥1800 ≥1800
|
With good wear resistance and high strength, which suitable for making sintered carbide balls, forming tools, valves, button bits, plates, sealing rings and other cemented carbide tools in normal condition |
YG9C |
14.55-14.70 |
88.1 |
≥2000 |
With good wear risistance and high strength, which suitable for making PDC drill bits and nozzles for drill bits and bolwhde set |
|
YG11C YG11 |
14.20-14.40 14.30-14.60 |
87.0 87.5 |
≥2200 ≥2100 |
With good wear resistance and good impact resistance, which suitable for making high pressure nozzles, plates, boards for oil, chemical and mechanical field etc. |
|
YG15 YG15C |
14.00-14.20 13.90-14.10 |
87.0 86.5 |
≥2400 ≥2450 |
With good toughness and high strength, which suitable for making sealing rings, balls, milling drums non standard tools, machine accessories, punching die in high pressure condition, shell, etc. |

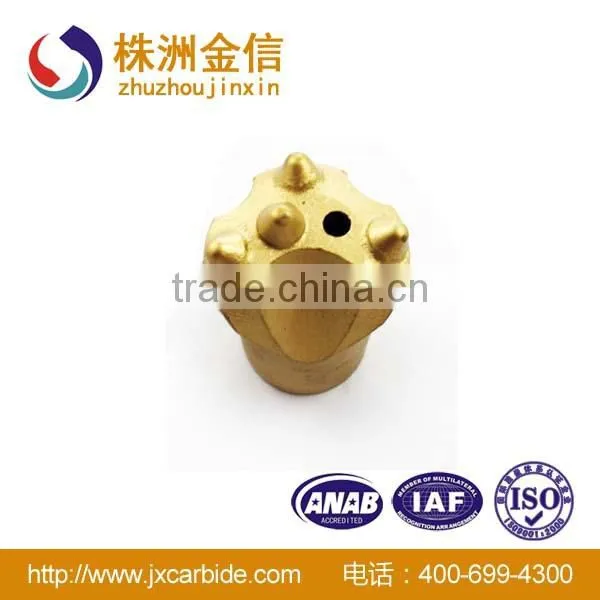

Drilling bits for mining
Grade |
Density(g/cm³) |
Hardness(HRA) |
TRS(N/mm²) |
Applications recommended |
|
YC6 YC8 YG8C |
14.70-15.10 14.60-14.90 14.50-14.90 |
≥89.5 ≥89.0 ≥87.2 |
≥1670 ≥1840 ≥2000 |
It is suitable for making geological prospecting drill bits and mining inserts for light electrical drills for drilling soft rock and coal formations and drill bits for drilling us-silicated rock formations |
|
YK20 YK25.1 YG11 |
14.30-14.60 14.40-14.56 14.45-14.75 |
≥86.0 ≥87.5 ≥86.5 |
≥2460 ≥1910 ≥2200 |
It is suitable for inserts of heavy duty rock excavating machines, for drilling hard and super hard rock formations, also used for making tri-cone button tits. |
|
YK05 YG11C YG13 YG15C |
14.80-14.95 14.10-14.50 13.89-14.11 13.9-14.1 |
≥90.0 ≥86.5 ≥85.5 ≥85.7 |
≥2600 ≥2260 ≥2110 ≥2300 |
It is mainly used for making buttons of DHT drills tri-cone and percussive drill bits, for drilling hard and super hard rock formations, also be used for making inserts in other drill bits. |
|
YK40 YK50 |
14.00-14.40 13.90-14.20 |
≥88.5 ≥87.2 |
≥2900 ≥3100 |
With super toughness and corresponding wear resistance, it is suitable for mining inserts in mine prospecting, oil drilling bits for front buttons & PDC buttons, in heavy duty rock drilling machines and depth drilling bits for drilling hard and super hard rock formations and it can also be used for other button bits. |
More pictures:
Producing Process
ISO9001 Certificate
Zhuzhou Jinxin Cemented Carbide Co., Ltd is specialized in manufacturing a series of Tungsten Carbide products such as:
Tungsten carbide tire studs & stud pins
Tungsten carbide drilling bits for rock & mining

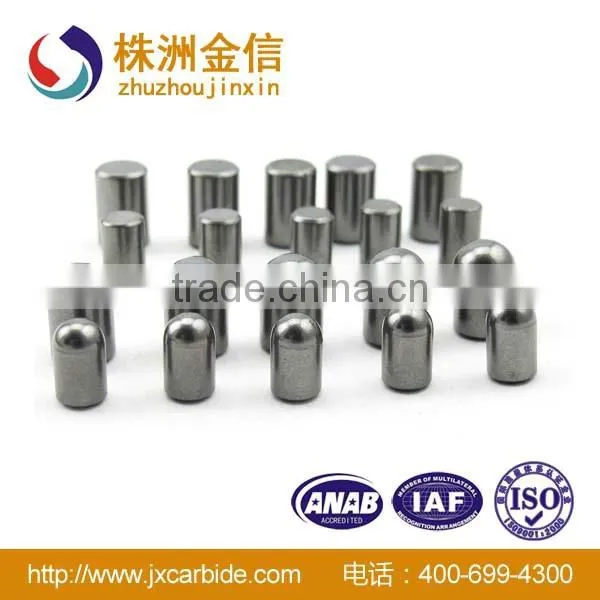

Tungsten carbide tips & buttons of drilling bits
Tungsten carbide cutters and blades

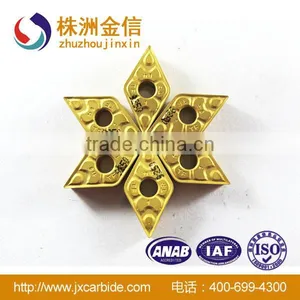

Tungsten carbide brazed CNC inserts

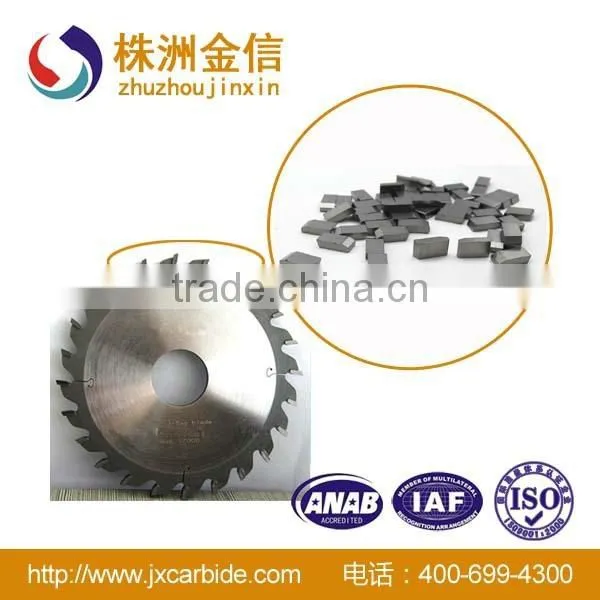

Tungsten carbide saw tips
Tungsten carbide high precision moulds/dies & wear resistant parts
Tungsten carbide blanks
Tungsten carbide roller rings
Tungsten carbide powder
Tungsten carbide round rods
Tungsten carbide strips/bars/tubes
Tungsten carbide plates/boards
Tungsten carbide ball
Tungsten carbide nonstandard products
All products pass the standard of ISO9001:2008.
All of our tungsten Carbide Products are made from the high-purity Original/Virgin Raw Materials and HIP/Sintered, with very high quality and excellent performances. Also the price is very competitive.
More items & details about our products/company can be found on our webpage & shop. Your special design
is also welcomed here. Also you are warmly welcomed to visit our factory. Enjoy your purchasing time!
