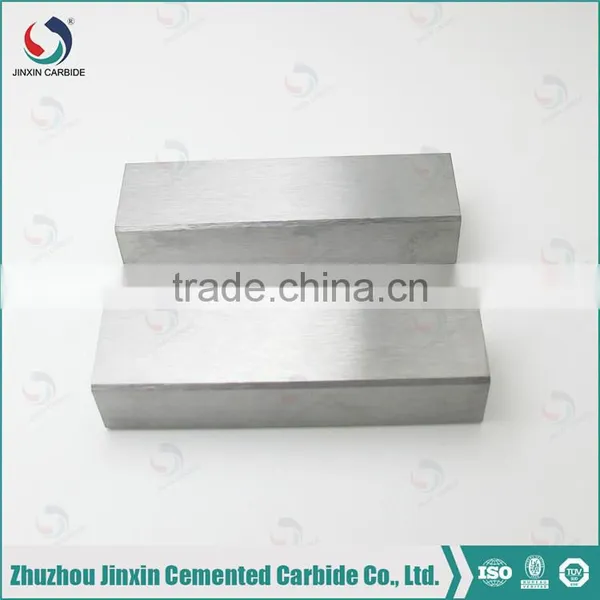

Brand New ISO Certificate Tungsten Carbide Plates

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	Jinxin
Model Number	Customized, standard / customized	Alloy Specification	YG6/YG8/YG8C/YG11/YG11C
Particle	0.6um, 0.6um

Product Description

brand new ISO certificate tungsten carbide plates

Advantages
High density
Good machinability
High modulus of elasticity
Strong corrosion resistance
Non-poisonous ,no pollution
Good mechanical properties
Harmless to the health and environments
It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)

Tungsten Sheet
Purity: 99.95% min
Model: W1/W2/W-Alloy
Density: 19.3g/m3
Surface: Polished or alkali washed

Tungsten Sheet Features
high temperature resistance
High wear-resistance corrosion-resistance
High pyroconductivity
excellent hardenability

Grade	HAR	APPLICATION	RELATE GRADE
JD03	91.5	applicable to cast iron and non-ferrous metal finishing	YG3
JD06	90.5	apply to non-ferrous rough	YG6
JD06X	91.7	apply to non-ferrous metals and hardened steel cutting	YG6X
JD08	89.7	suitable for wear-resistant material	YG8
JD08C	90.5	applies to coal drilling tool	YG8C
JD10	88	light drills and drill bits with ball gear	YK15.0
JD15	87.6	applies to chisel the hard and the harder rock	YK15.6
JD20	87.3	applies to ball tooth and the drill bit, chisel in hard case than the hard rock	YK20
JD25	87	applies to chisel hard rocks	YG11C
JD25Z	87.5	suitable mining tools, wear parts box	YG11
JD30	85.5	heavy-duty drills with the ball gear, cutting hard rock	YG15C
JD30Z	86.5	suitable for cold heading die	YG15
JD35	82.5	large diameter screw die	YG20C
JD35Z	84	applies profiled Cold Heading Die	YG20
JD40	91	a variety of milling and hole machining tool	YG012

Tungsten Sheet Application
The tungsten carbide sheet had widely application ranges and well effect.
For example: Various manufactural industry, various material industry, electric light source parts and so on.
Especially, the tungsten carbide sheet is really good at machinery industry, metallurgy industry, aerospace development.

Contact Details:

Tel:0086-0731-28821498

Fax:0086-0731-22332243-8006

Email:jinxin08(at)

jinxin012(at)

chinacarbide(at)

Add:No.28 Xinhua Road,Zhuzhou City,Hunan Province,China

Relying on the advantages of Zhuzhou and Zigong Hard Alloy Production Bases, the company integrates the production, R&D, technical service and sale of hard alloy products, and is devoted to producing hard alloy products and developing hard alloy precision parts.

All of our tungsten Carbide Products are made from the high-purity Original/Virgin Raw Materials and HIP/Sintered, with very high quality and excellent performances. Also the price is very competitive.
