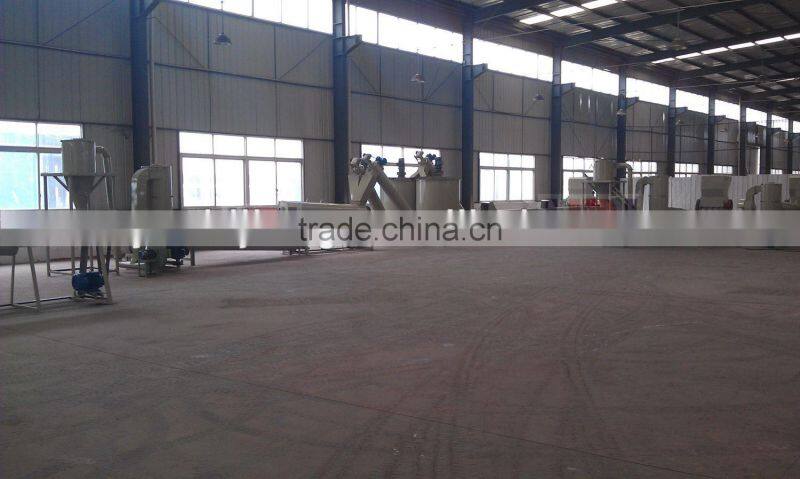

PET Flakes Crushing & Washing Line

Number

Description

Technical parameters

Quantity

1

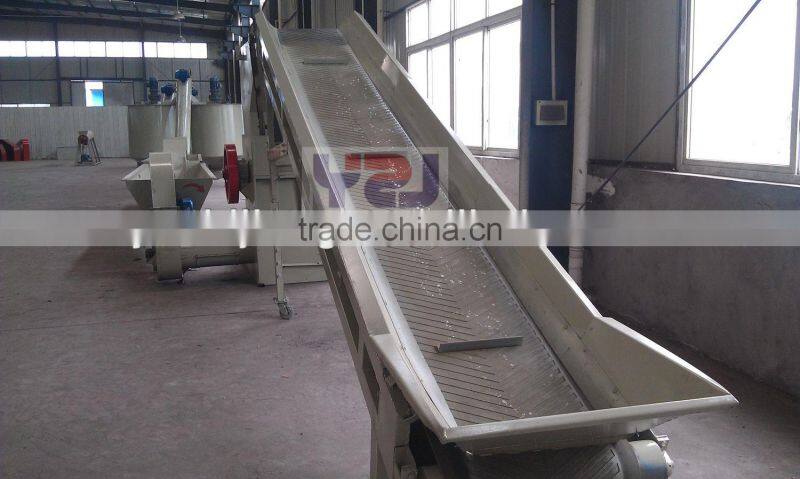

Belt conveyor

1. Length:4000mm
2. Width:600mm
3. Material:Rubber
4. Conveying Capacity:300kg/h
5. Motor:1.5kw

One set

2

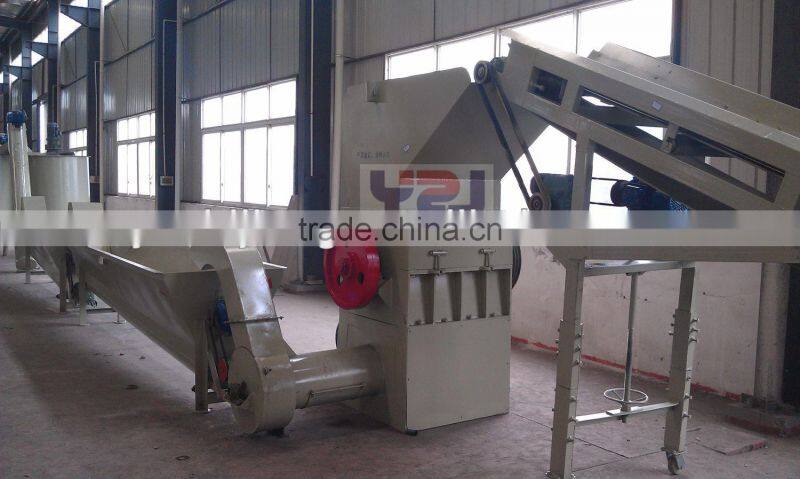

Crusher with water

1. Model:PC700
2. Crusher capacity:200kg/h
3. Knife material:Cr2MoV
4. Motor power:22kw
5. Feeder throat dimension:700*450mm
6. Knife gyration diameter:360mm

One set

3

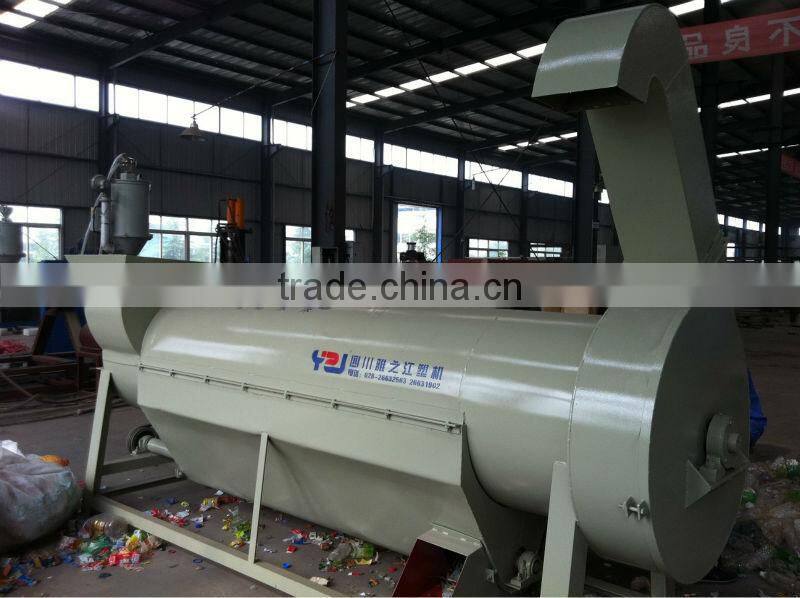

High speed friction washing machine

1. Motor power:7.5kw
2. Filtering method:Stainless steel mesh
3. Process material:Stainless steel
4. Principal axis diameter:300mm
5. Principal axis rotate speed:750r/min
6. Spraying mouth on top:2 fleets,8 mouths
7. Principal axis is through dynamic&static balance correction.
8. The equipment is with the material-feeding function.

One set

4

Film rinse tank

1. Stir motor power:3kw
2. Effective washing length:6000mm
3. Tank material:Stainless steel
4. Residue exclude method:by screw

One set

5

Screw conveyer

1. Motor power:1.5kw
2. Conveying capacity:≥200kg/h
3. With water-drainage function.
4. Process material:stainless steel

One set

6

Film dewatering machine

1. Motor power:37kw
2. Rotary speed:1500rpm
3. Process material:stainless steel
4. Main shaft:through dynamic and static balance treatment
5. Water-drainage method:downwards.

One set

7

Drying system

1. Fan motor power:5.5kw
2. Heating power:28kw,electricity heating pipe,total 3 groups
3. Pipe tract material:stainless steel
4. Pipe tract diameter:159mm
5. Pipe tract type:U type

One set

8

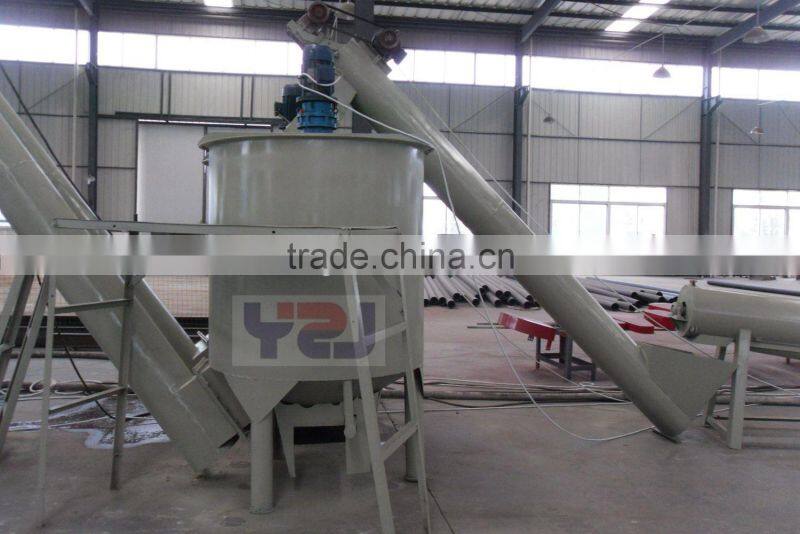

Material store system/hopper

1. Cubage:1m³
2. Process material:stainless steel
3. Material lay-off control:Plate Valve

One set

9

Electricity control

1.Contactor is brandsiemens

One set

10

Production time

45days

11

Guarantee period

One year
