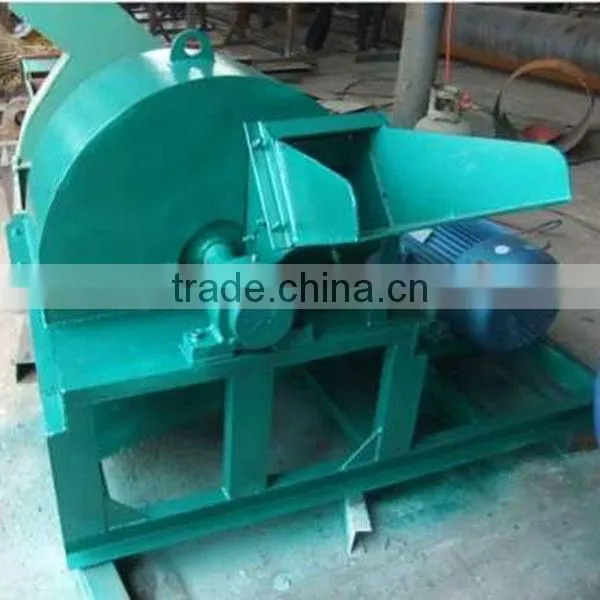

industrial Wood powder machine
It is widely used by domestic and overseas market because of it high efficient performance, top
quality, etc. It is used in paper plant, particle board plant, fiber-board and chip production
Features of Wood powder machine
1. Wood powder machine is stationary and portable two kinds ,and stationary much used in the factory; Mobile are used for forest ShanChang working parts.
2.According to the structure wood chipper is divided drum chipper and disk chipper two.
3.According to the feed way wood chipper is divided oblique mouth feed, peace mouth feed two types.
4.The size of output can be changed according to customers' requirements
Technical parameters of Wood powder machine
Model |
500 |
600 |
700 |
800 |
900 |
1000 |
Cutter Dia(mm) |
450 |
600 |
650 |
750 |
850 |
950 |
Knife length(mm) |
100 |
150 |
200 |
230 |
260 |
300 |
Feed opening size(mm) |
180*200 |
200*200 |
200*250 |
250*300 |
300*400 |
400*500 |
Rmp(r/min) |
2600 |
2500 |
2600 |
2300 |
2000 |
2000 |
Power(kw) |
7.5 |
11 |
15 |
22 |
37 |
45 |
Capacity(kg/h) |
300 |
600 |
800 |
1500 |
3000 |
4000 |
Note:1.This machine including electric motor,wooden case package and one set of blades.
2.The length of chips can be adjusted freely within the prescribed scope to meet your requirements.
3. The above parameters is just for your reference, if you have other request, please inform us.
Wood powder machine is a special machine to produce high quality chips, It can cut log and small-diameter log with less than 250mm diameters.
It is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc.
The Wood powder machine could handle the all kinds of logs, cut logs and small wood into high quality
chips with even length, smooth chip cut and uniform chip thickness. It is also possible for the
chipping of branches and twings. The chip length could be controlled via adjustment.
