Wood Chipping Machine
Brief Introduction of Wood Chipping Machine
1. Wood chipping machine is specially used to crush wood logs, bamboo, Wood staff and other wood materials.
It can be processed into wood chips once time. The wood chips size also can adjusted accordingly.
2. Wood chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc.

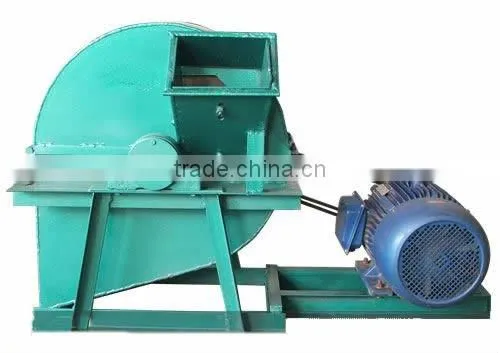

Structure of Wood Chipping Machine
Wood chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
Features of Wood Chipping Machine
1. Lower investment and high economic returns;
2. High efficiency and lower enery consumption;
3. Convenience to use and maintain.
Main Technical Parameter of Wood Chipping Machine
Model |
600 |
800 |
1000 |
Note |
Power(kw) |
22+4 |
37+5.5 |
45+7.5 |
The capacity is depended on the fineness of the material and the density, generally fineness high yield is low, fineness low yield high. |
Speed(r/min) |
3200 |
3000 |
2900 |
|
Capacity(h) |
600-1200kg |
1500-2000kg |
2000-3000 kg |
|
Feeding size |
According to the raw material’s size |
|
|
|
Weight(kg) |
1300 |
2200 |
3500 |
|
Area(m) |
2.5x2.0x1.2 |
2.8x2.2x1.5 |
3.0x2.5x1.7 |
