Specifications
Rotary Kiln Machine1. High level automatic running
2. Stable working conditions
3. Long service time
4. With ISO9001

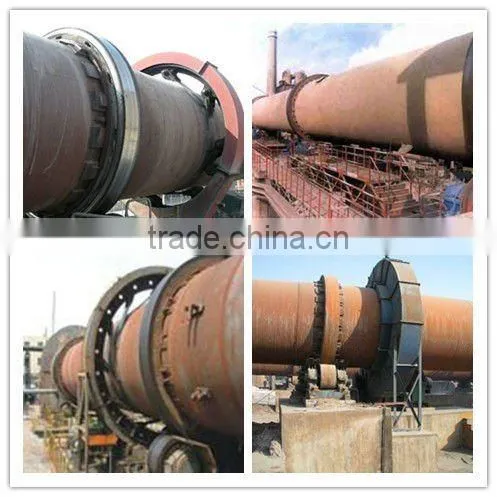

Rotary Kiln Machine
Introduction of Rotary Kiln Machine:
1. The Rotary Kiln Machine has simple structure, convenient and reliable control during the production process, a few wearing parts, and high operation ratio.
2. The Rotary Kiln Machine produced by our factory has rugged structure, smooth operation, and high quality outlet products. Besides, we provide our customers with advanced, efficient vertical heating device, and cyclone heating device.
3. Rotary Kiln Machine is refer to rotate calcinations kiln, belongs to construction material equipment. Rotary kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials. Cement kiln is used for making of cement clinker and there are dry and wet methods to make cement. Metallurgy chemical kiln is used in metallurgy industry and ironworks for lean iron ore, chromium ore and ferronickel ore calcination, which is used for calcining of high aluminum vandal ochre in refractory material industry; for calcining of calotte and aluminum hydroxide in aluminum manufacturer; for calcining of chrome sand ore and chrome powder ore in chemical plant. Lime kiln is used for calcine dolomite and active lime which is used in steel plant and ferroalloy factory.
Applications of Rotary Kiln Machine:

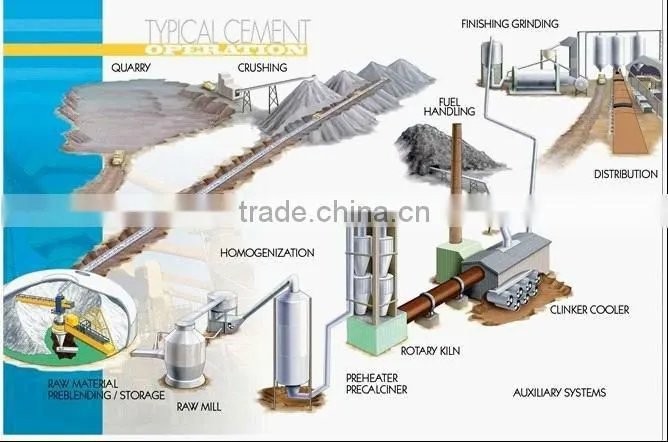

1. Rotary Kiln Machine is an ideal machine for calcining high-grade cement in cement plants. It is also commonly used in the production process of catalytic agent, molecular sieve and zinc oxide, etc. As a result, you can find a rotary kiln in variety of industries, like steel annealing and nonferrous smelting industries, metallurgy and chemistry fields, and building industries, and more.
2. Rotary Kiln Machine, which is also called rotary calcine kiln, is a commonly used building material machine. Classifying by material properties, the rotary kiln falls into cement kilns, metallurgy chemical kilns, and lime kilns.
Main Technical Parameter of Rotary Kiln Machine:
| Model(mm) | Shell size | Capacity(t/h) | Rotating speed(r/min) | Power(kw) | Weight(t) | ||
| Dia.(mm) | Length(mm) | Slope(%) | |||||
| 1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 |
| 1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 |
| 1.8×45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 |
| 1.9×39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 |
| 2.0×40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 |
| 2.2×45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 |
| 2.5×40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 |
| 2.5×50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 |
| 2.5×54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.4 | 55 | 196.29 |
| 2.7×42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 |
| 2.8×44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 |
| 3.0×45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 |
| 3.0×48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.448 | 100 | 237 |
| 3.0×60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 |
| 3.2×50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 |

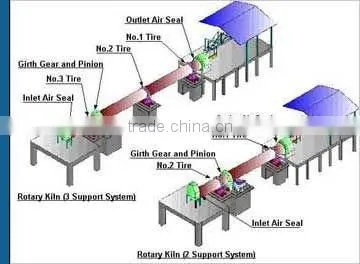

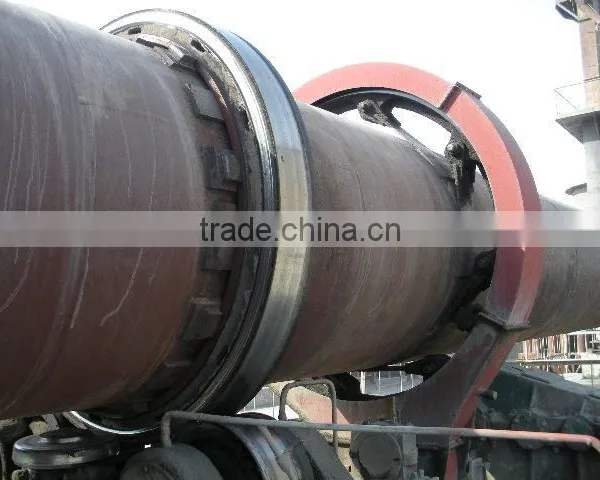

Structure of Rotary Kiln Machine:
1. The Rotary Kiln Machine's shell is made of rolled steel plates; its structure is optimized by computer software, and features" longitudinal flexible and transverse rigid”, which improved the loading of supporting device and stability of refractory lining.
2. The supporting roller bearings features smaller width over diameter ratio L/D, leading to its higher reliability.
3. The special high-started torque motor for cement industry rotary kiln is applied for driving system.
4. The sealing of labyrinth plus spring pressing with asbestos heat isolation layers attached, is applied higher so that reliability and longer service life of sealing are achieved.
Warranty of Rotary Kiln:
1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
