Specifications
calcination rotary kiln for bauxite1. high automatic running
2. high durability
3. perfect after-sale service
4. ISO/CE/BV
Calcination Rotary Kiln For Bauxite
Widely Used Calcination Rotary Kiln For Bauxite
Brief Introduction of Calcination Rotary Kiln For Bauxite
1. Calcination Rotary kiln For Bauxite is the main equipment of calcining the cement clinker. The characteristics of rotary kiln dryer are with simple structure, convenient and reliable control of the producing process,with little wearing parts and high running rate.
2. Calcination Rotary kiln For Bauxite is the equipment which calcining the high grad cement in the cement factory.
3. Calcination Rotary kiln For Bauxite is widely used in the metallurgy,chemical industry,construction and other industries.
Application of Calcination Rotary Kiln For Bauxite
1. Calcination Rotary kiln for Bauxite is an ideal machine for calcining high-grade cement in cement plants. It is also commonly used in the production process of catalytic agent, molecular sieve and zinc oxide, etc. As a result, you can find a rotary kiln in variety of industries, like steel annealing and nonferrous smelting industries, metallurgy and chemistry fields, and building industries, and more.
2. Calcination Rotary kiln for Bauxite, which is also called rotary calcine kiln, is a commonly used building material machine. Classifying by material properties, the rotary kiln incinerator falls into cement kilns, metallurgy chemical kilns, and lime kilns.
Cement Making By Rotary Kiln:
Fly Ash Ceramsite Making By Rotary Kiln:
Features of Calcination Rotary Kiln For Bauxite
1. Through technological innovation, our calcination rotary kiln for bauxite is designed with international leading wheel catch device, high precision plunger metering pump, high accuracy speed control valve and contact graphite block sealing device, etc.
2. In order to improve machinery automation, an industrial computer is used for showing the calcining condition, and a fluorescent screen is adopted for showing the simulated process flows. An infrared scanner is utilized for transmitting the calcining condition to the computer.
3. These new technologies provide our rotary kiln with strong visual sense, convenient operation and reliable performance. They help stabilize thermal regulation and improve operation efficiency.
Structures and Spare Parts of Calcination Rotary Kiln For Bauxite
Main Technical Parameters of Calcination Rotary Kiln For Bauxite
Model (m) | Shell size | Capacity(t/h) | Rotating speed(r/min) | Power(kw) | Weight(t) | ||
| Dia.(m) | Length(m) | Slope(%) | |||||
| 1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 |
| 1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 |
| 1.8×45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 |
| 1.9×39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 |
| 2.0×40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 |
| 2.2×45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 |
| 2.5×40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 |
| 2.5×50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 |
| 2.5×54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.4 | 55 | 196.29 |
| 2.7×42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 |
| 2.8×44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 |
| 3.0×45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 |
| 3.0×48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.448 | 100 | 237 |
| 3.0×60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 |
| 3.2×50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 |

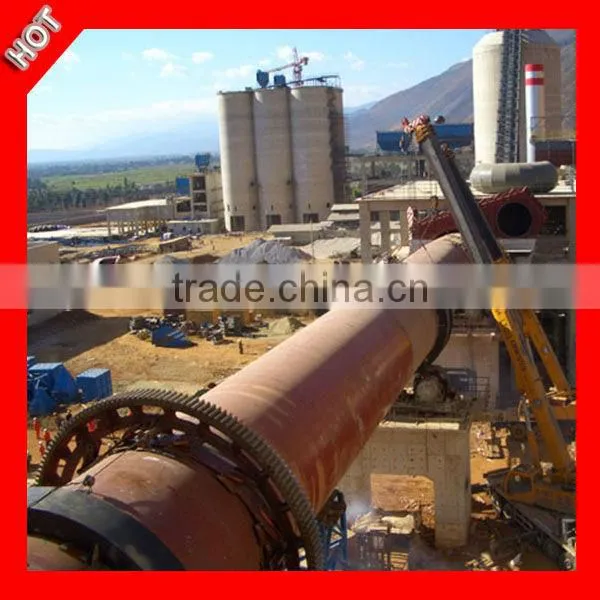

Display of Calcination Rotary Kiln For Bauxite
Warranty of Calcination Rotary Kiln For Bauxite
1. Five to Ten Years (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
