Choose GEC,choose high quality!

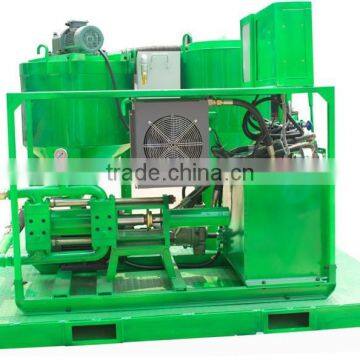

GGP200/300/100PI-E electric grout station with high trade assurance
- It is combination of mixer, agitator and hydraulic grout pump in one base frame.
- Siemens electric motor(WEG electric motor is optional)
- Schneider component for electric control box.
- Yuken reversing valve for hydraulic system of grout pump
- Butterfly valve of mixer and agitator.
- Linked switch between mixer and agitator.
- Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.
GGP200/300/100PI-E grout station plant technical data:
Description | Data |
Grout Station type | GGP200/300/100PI-E |
Mixer Volume | 200L |
Mixer production(w/c ratio=1) | 4 m3/h |
Circulation capacity | 1100l/min |
Suitable W/C Ratio | 0.5 to 1 |
Mixer electric motor power | 7.5kw, 1450rpm |
Agitator Volume | 300L |
Agitator Speed | 36rpm |
Agitator electric motor power | 1.5kw, 1450rpm |
Water tank | 60L |
Grout Pump Type | GDH90 |
Grout pump output(Max.) | 100L/min |
Grout pump work pressure | 10MPa (100bar) |
Grout pump electric motor power | 11kw, 1450rpm |
Grout Station Overall dimension | 2400x2300x1620mm |
Grout Station Weight | 1320kgs |
GMA400-700 grout cement mixer
Cement mixer also could match with the grouting pump, could be used for the pressure grouting in tunnel, mining engineering, dam, foundation engineerig of bridges, building, and other different kinds of underground engineering.
GDH70 and GDH90 piston type high pressure hydraulic drive grout pump
We also have other types ( mixer agitator pump on one skid) for option
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
certification of our company:
Factory
A: Suitable type will be recommend according to your project, output, pressure etc. factor.
2. Q: What's the project of the grout pump would be used for?
A: pressure grouting in tunnel, mining engineering, dam, foundation engineerig of bridges, building, and other different kinds of underground engineering.
3. Q: You are factory or trading company?
A: Gaode Equipment is has our own factory and technology team, also could be according to your demands to offer the best solution.
4. Q: What's the delivery time?
A: For common type: in one week;
If customize: need 3-4 weeks
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
