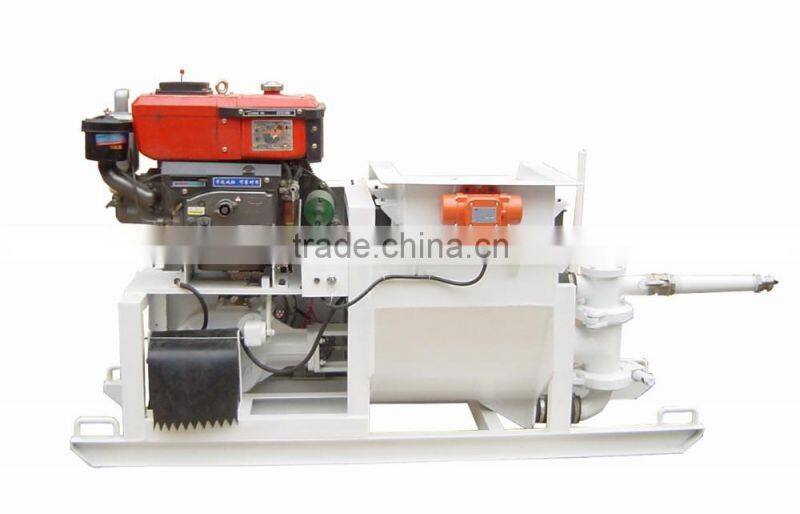

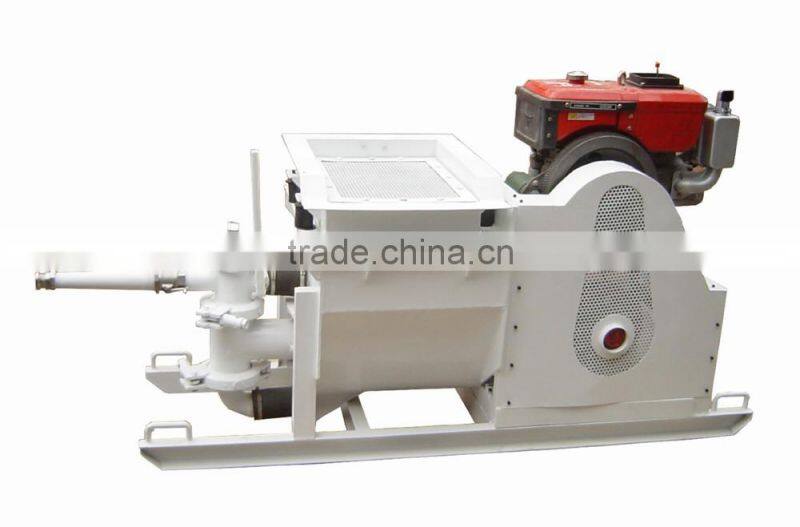

Hot Sale GMP50/40 Diesel Piston Pump Mortar Plaster Spraying Machine
GMP50/40 diesel engine Mortar Plaster Spraying Machine is a kind of piston and ball controlling pump, and the conveying line, piston and cylinder is specially designed and processed, so this machine is workable for high-pressure grouting/spraying mortar (the mixture of sand: cement: water). And it is successfully used in sealing, strengthening, stabilizing of rock and soil, tunneling, building hydro-power project, etc, and also used for spraying mortar in construction and 3D Panel, etc.
Mortar Plaster Spraying Machine:
Single piston with single-acting.
Ball valve
Mechanical transmission
Integrate pump head and hopper
Prevent eduction and deposition together with the paddle agitating
Technial data of Mortar Plaster Spraying Machine:
Rated Output | 50L/min |
Rated Pressure | 4MPa(40bar/580PSI) |
Cylinder Dia. | 90mm |
Piston Stroke | 85mm |
Stroke/Minute | 95/min |
Inlet diameter | 75mm |
Outlet diameter | 50mm |
Max. Aggregate size | 5mm |
Water cement ratio | 1: 3 |
Power unit | 5.5KW(Electric), 10hp(Diesel) |
10hp(Diesel)Chassis | Skid or Tyre |
Weight | 450kg |
Overall Dimensions | 1715x1024x900(mm) |

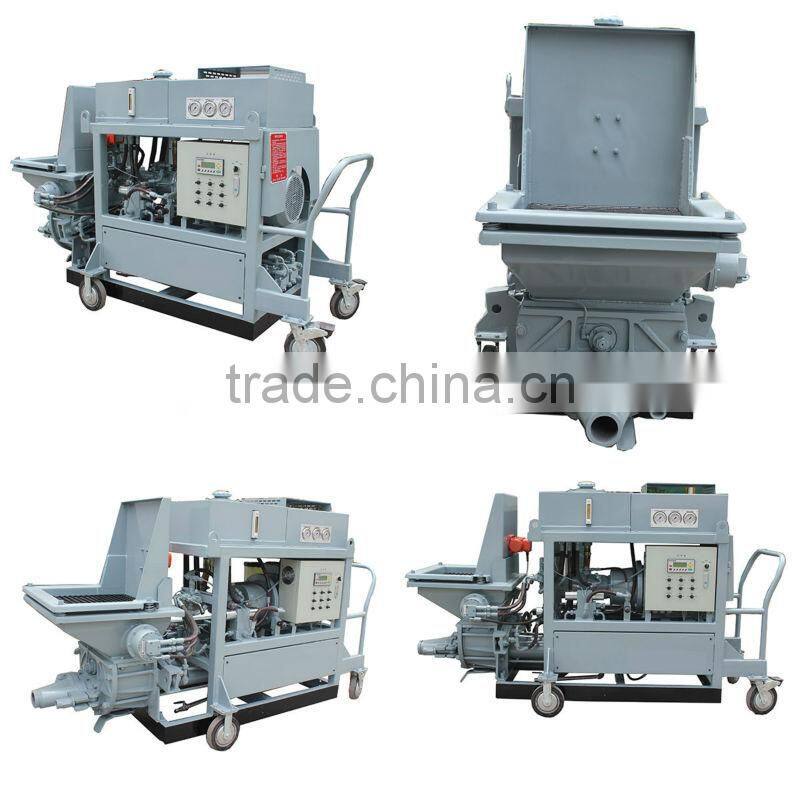

Other wall plaster cement ready mix mortar pump :
GMP40/10-H :
GDS1500:
GDS2000:
GPS7/8-15E:
Package:

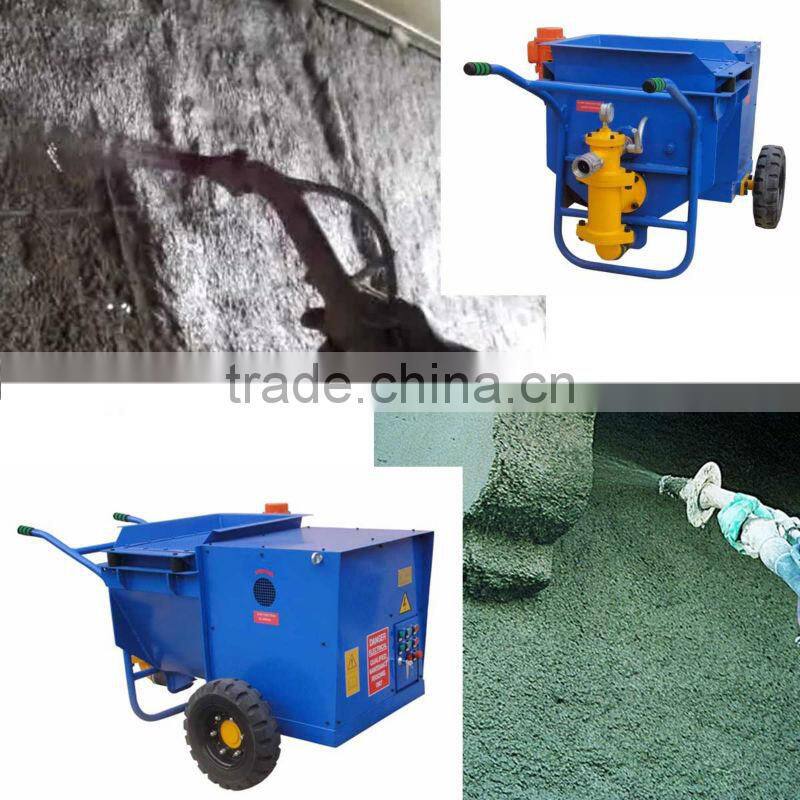

Application of Mortar Plaster Spraying Machine:
Workshop:
Customers:
Certificate:
